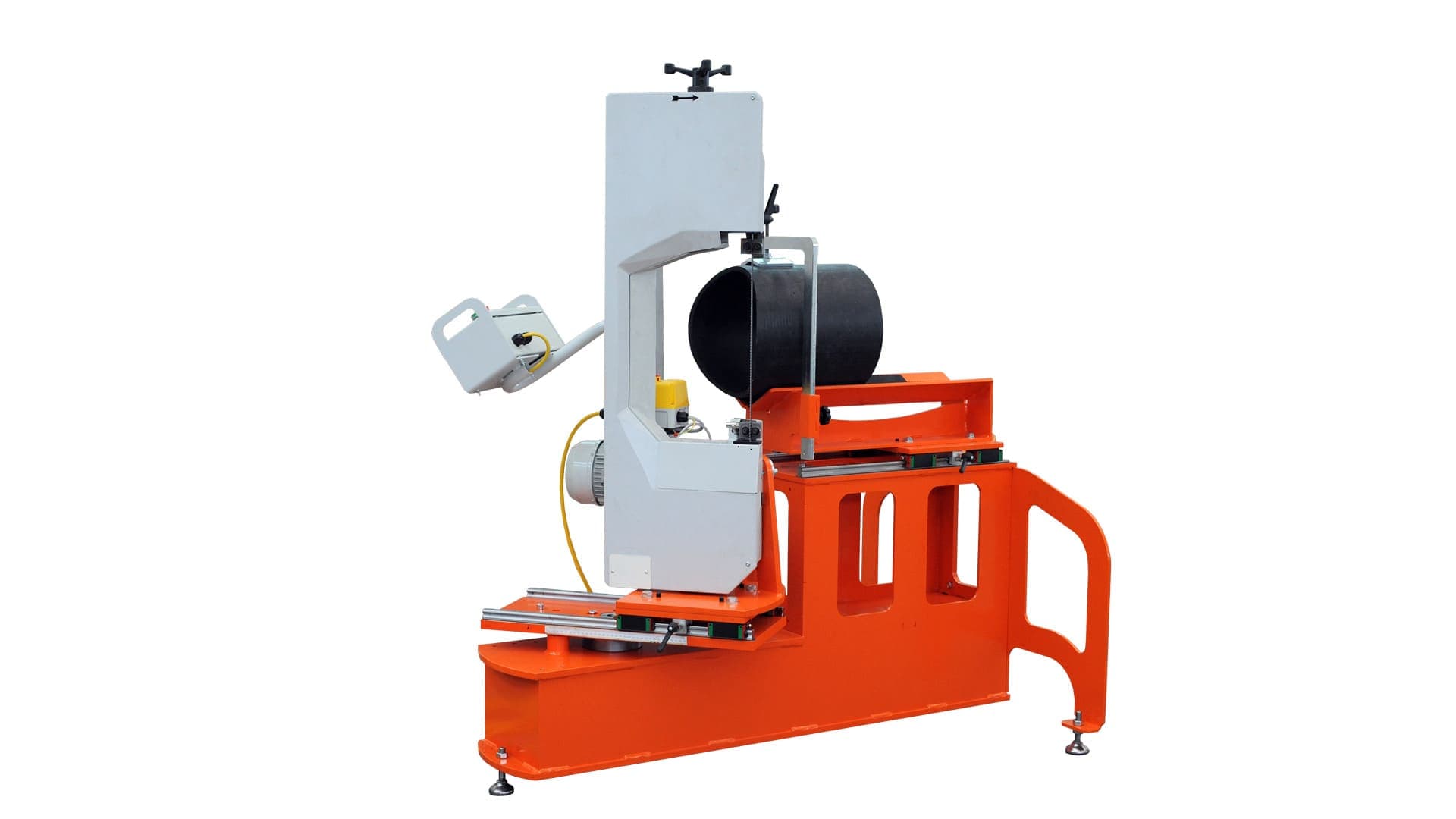

Ritmo Radius 40-315 Radial Cut Band Saw
- Brand
- Ritmo
- Category
- Pipe Band Saws
Product details
Radius 40-315 makes the radial cut a branch needs to sit on a main pipe: the profile of a main up to Ø 630 mm, cut into branch pipe of Ø 40-323 mm. A sliding clamping table takes pieces as short as 15 cm, and the operator controls the saw's rotation from the panel, well clear of the blade.
Technical specifications
| Main pipe OD | up to 630 mm (24.8") |
|---|---|
| Branch pipe OD | 40 ÷ 323 (1.6" x 12.7") |
| Shortest branch length | 15 cm (6") |
| Power supply | 110 V Single Phase 60 Hz / 230 V Single Phase 50 Hz |
| Total absorbed power | 1100 W |
| Dimensions | 1000 x 1566 x 1642 mm 39.4" x 61.5" x 64.6" |
| Weight | 425 Kg (937 lb) |
