Ritmo FM 630/315 Manifold Fabrication Line Ø 200-630 mm
- Brand
- Ritmo
- Category
- Socket Fusion Machines
Product details

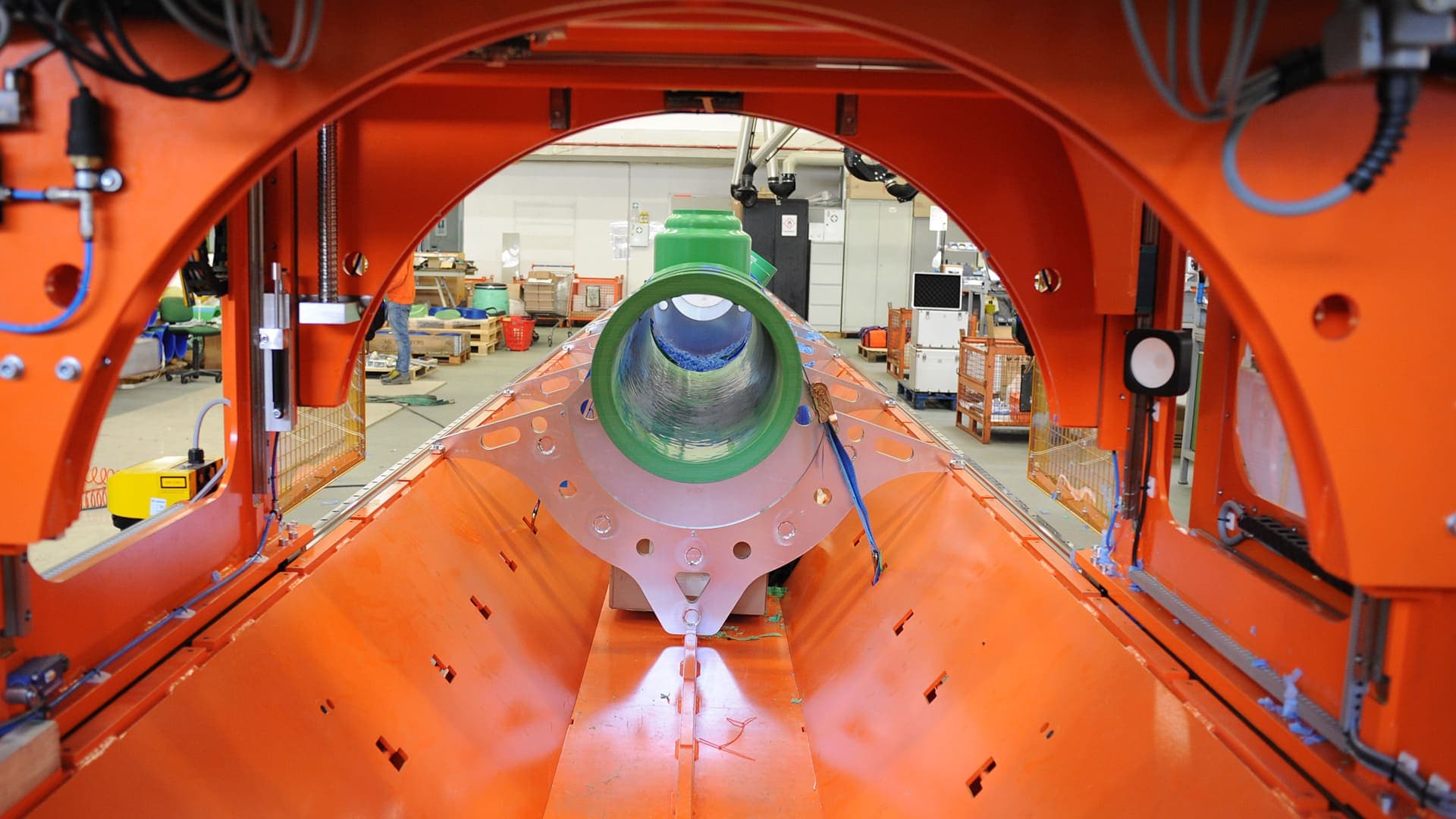

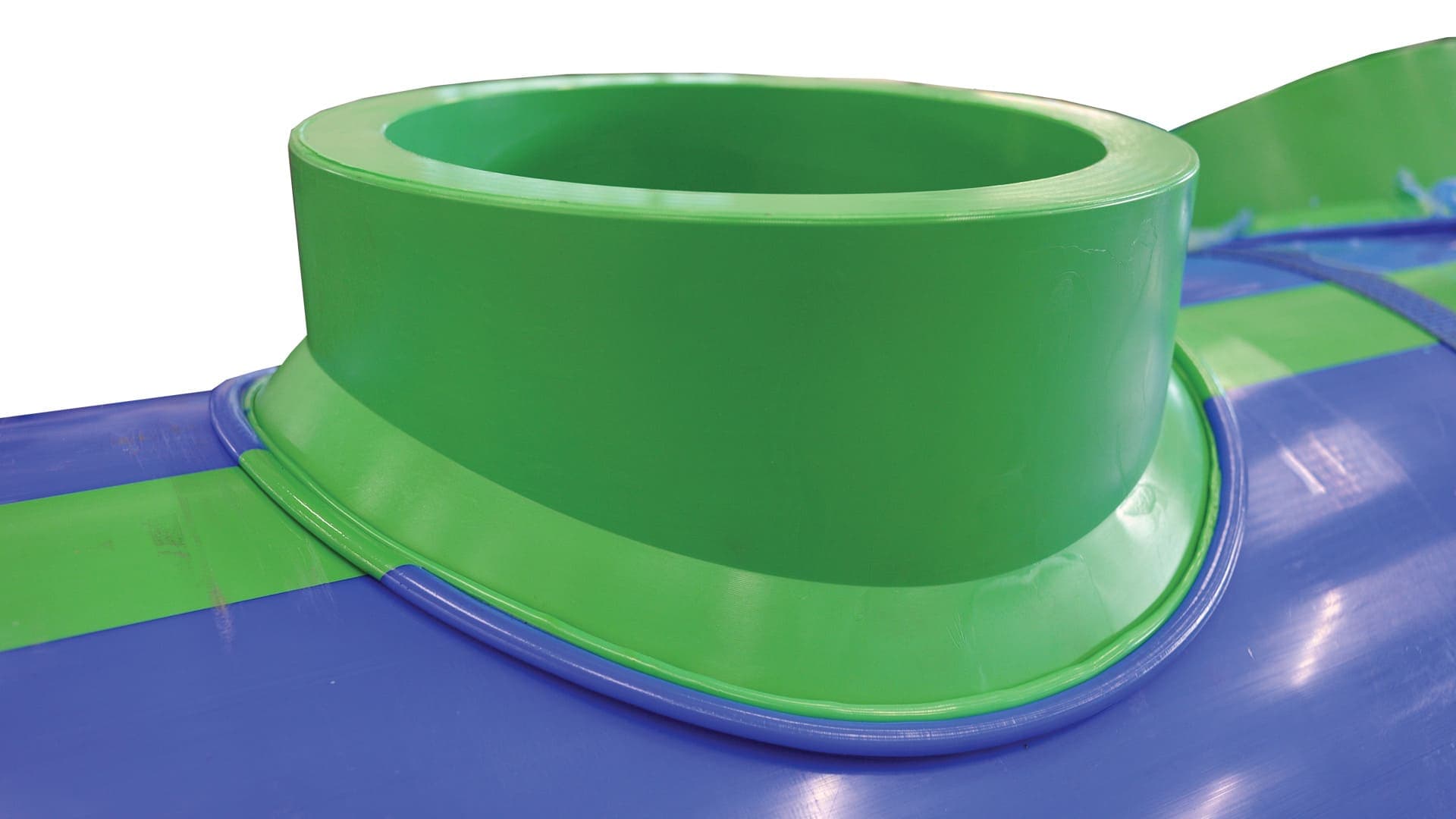

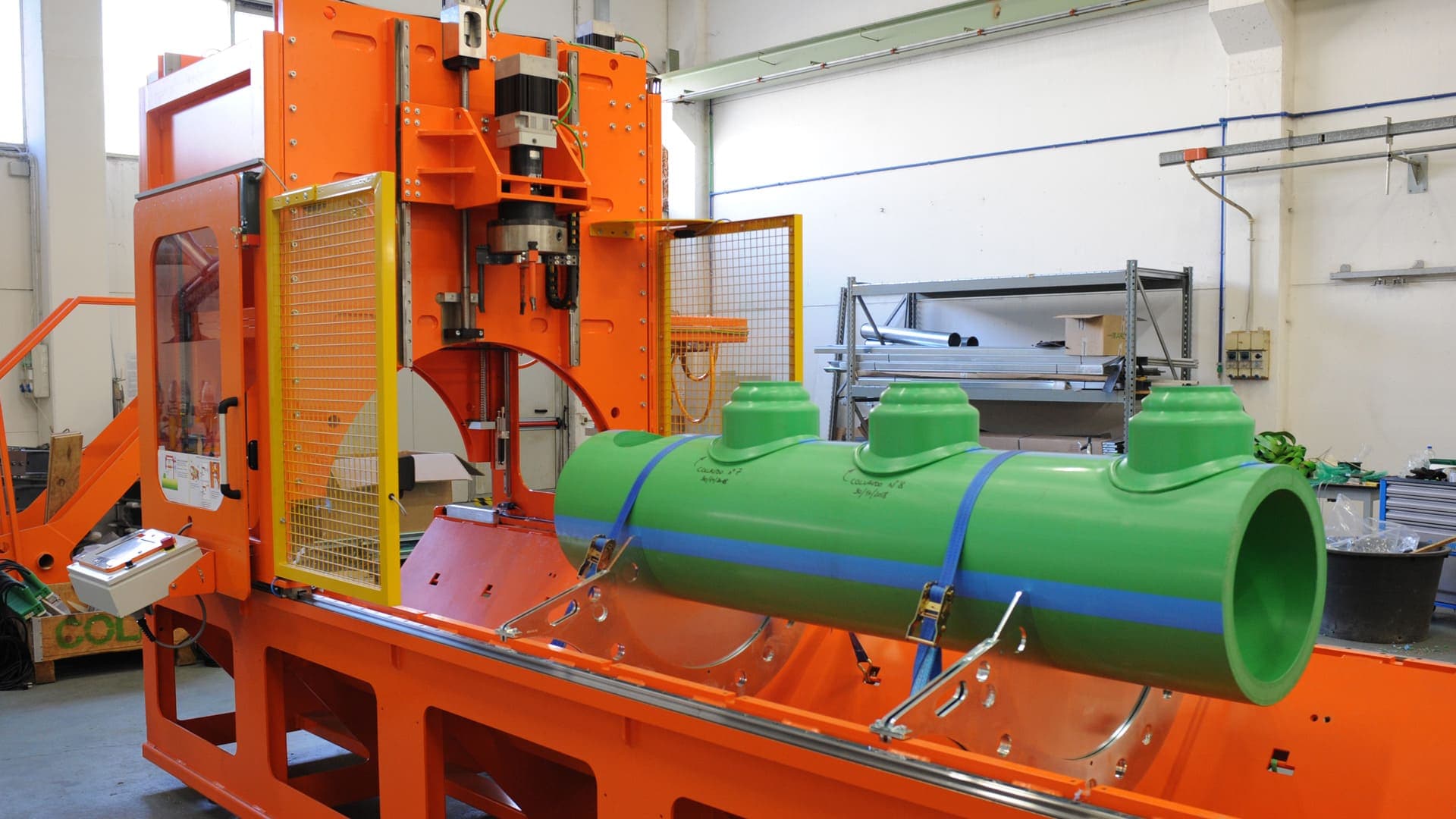

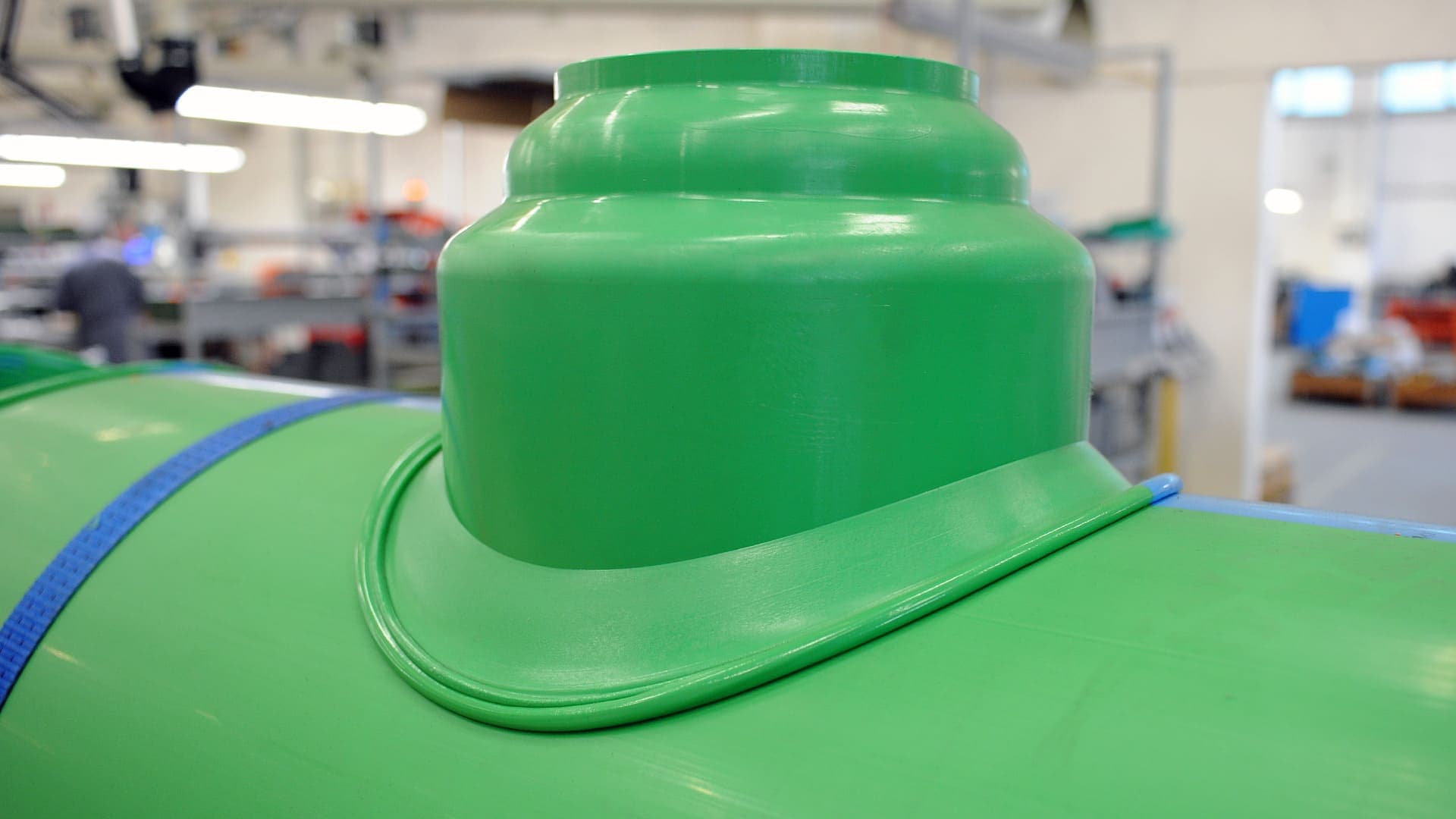

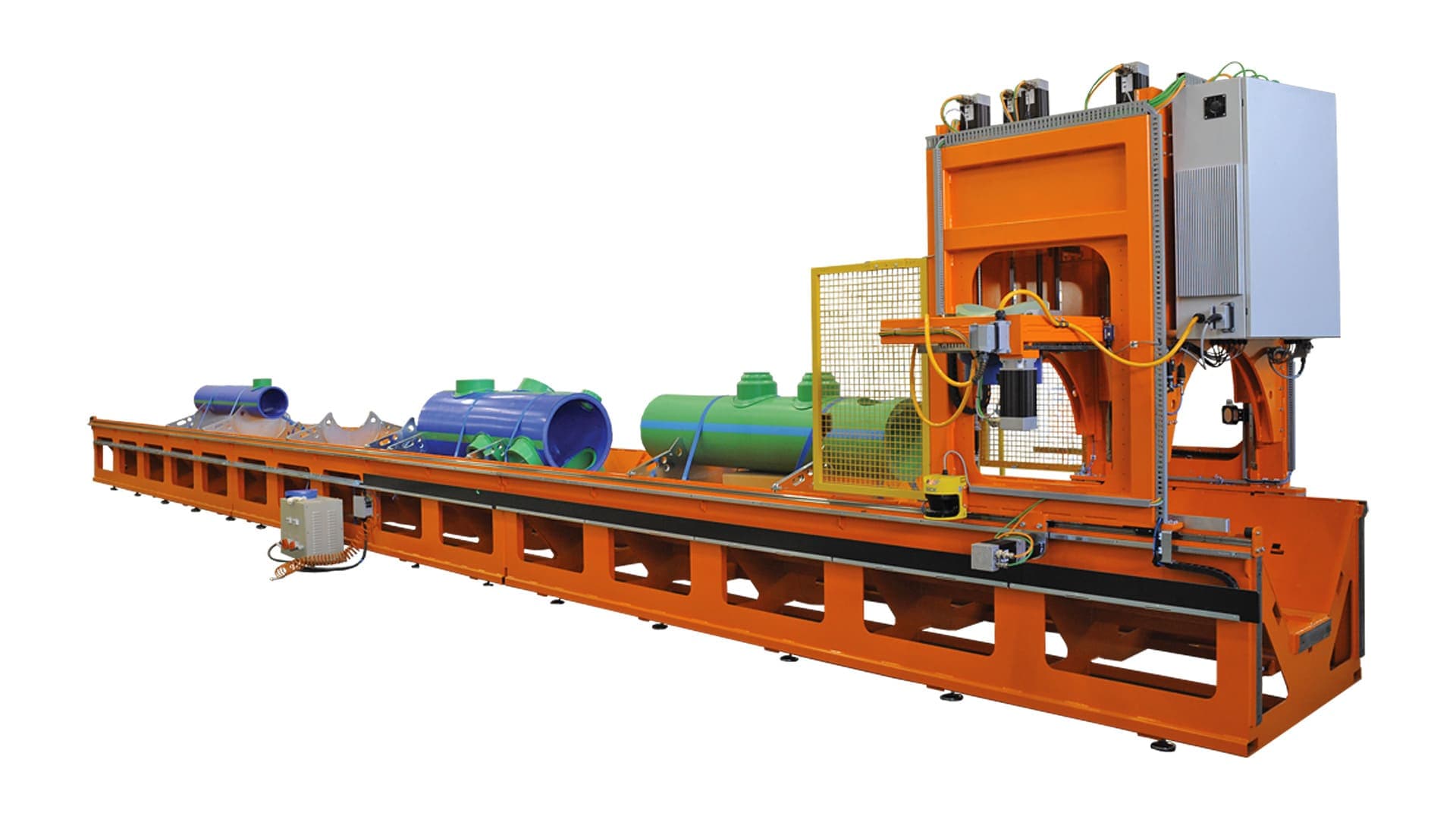

FM 630/315 is a production line for batch manifold fabrication, welding Ø 90-315 mm branches onto Ø 200-630 mm main pipe. It combines a workstation with separate milling and welding areas and a bench of mobile islands that hold the pipes being worked.

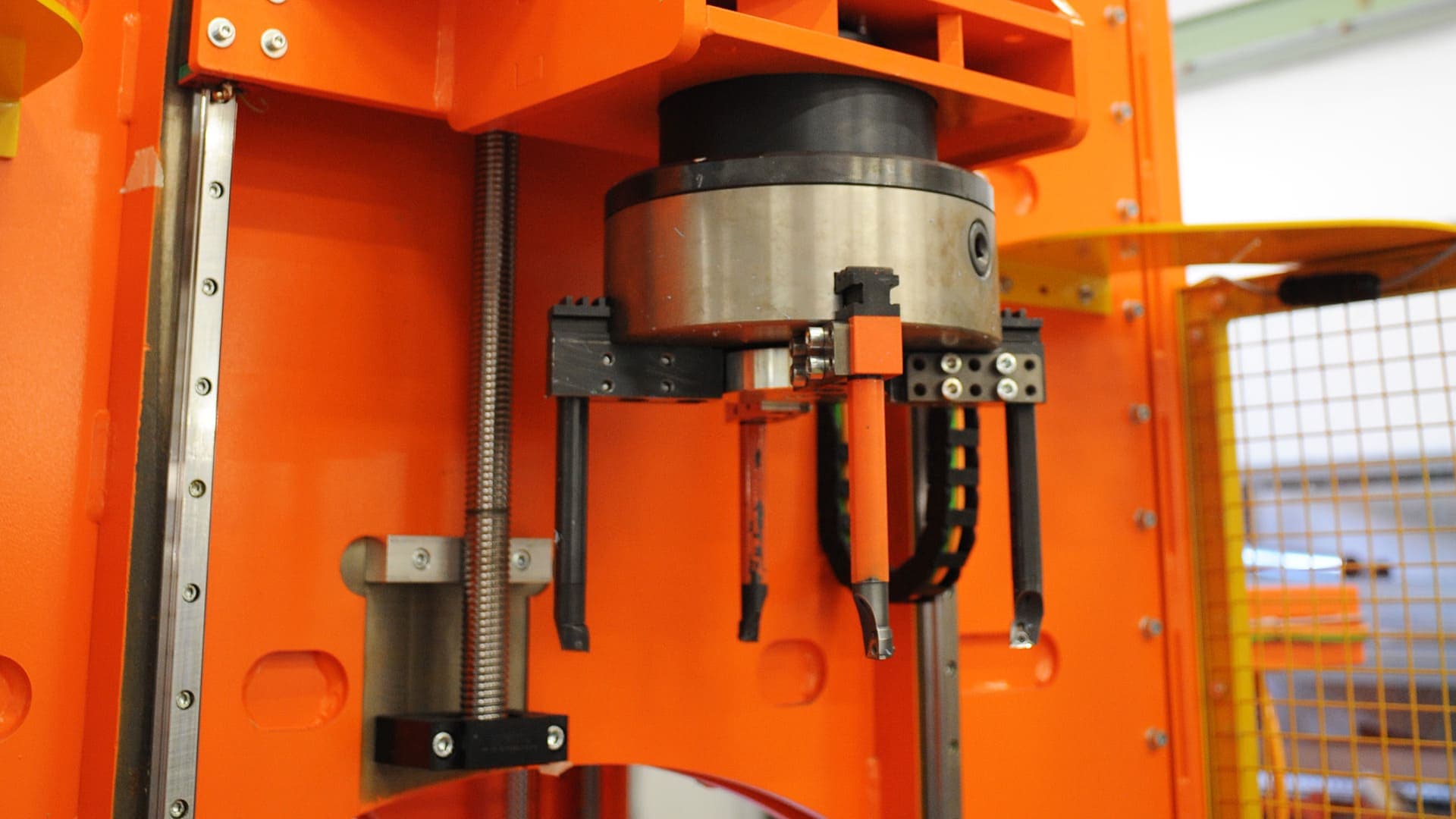

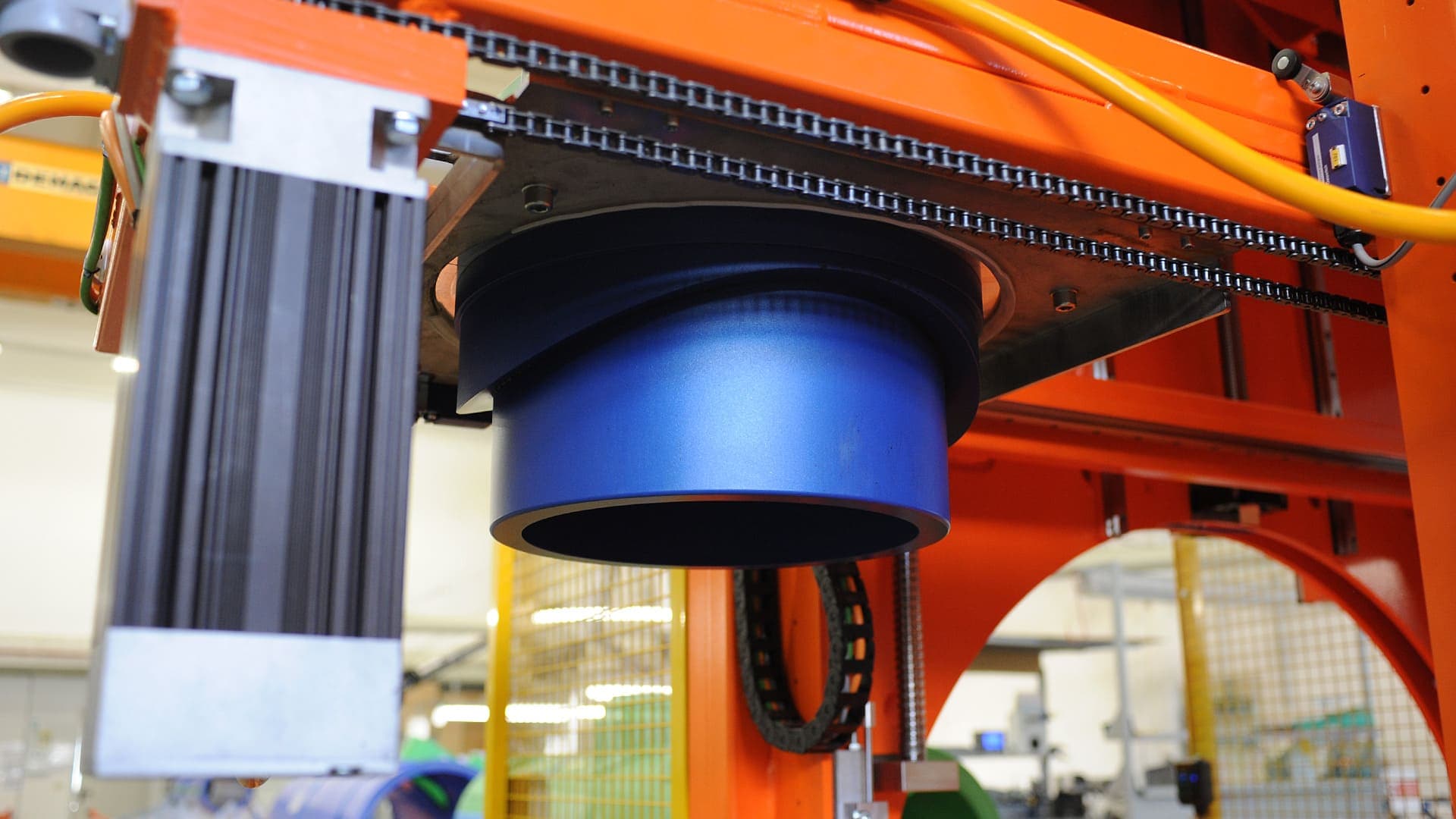

Drilling and welding are controlled by a set of position sensors, and the data is stored so a batch of manifolds can be reproduced exactly. With a 400 V three-phase supply, 18 kW total power and a weight of 8,560 kg, it is built for fixed production facilities.
Technical specifications

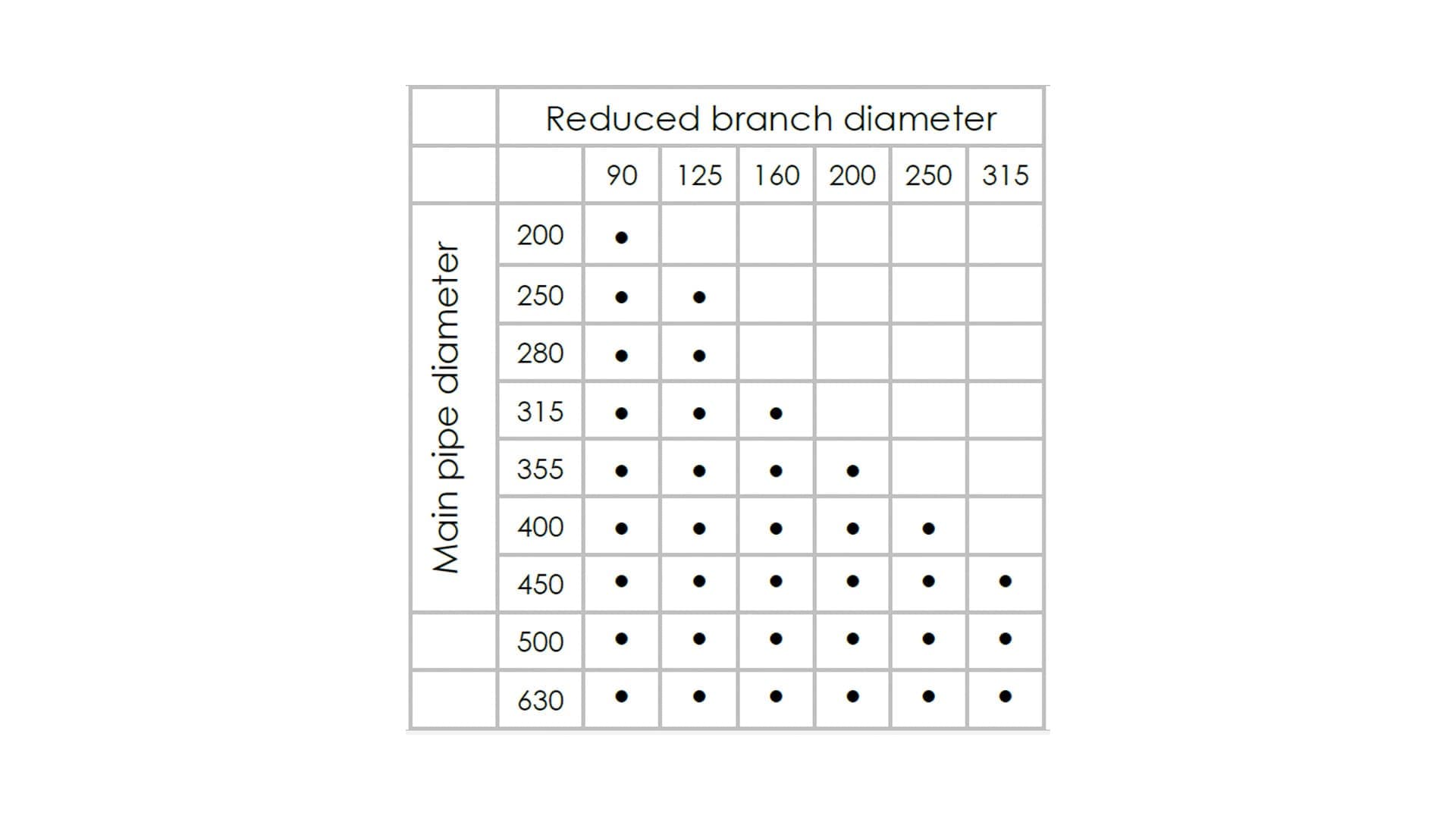

| Working range Main Pipe OD range | 200 ÷ 630 mm |
|---|---|
| Working range Reduced Pipe OD range | 90 ÷ 315 mm |
| Power supply | 400 V 3-phase 50/60 HZ |
| Total absorbed power | 18000 W |
| Air connection (for portal brake) | 6-8 Bar (87-116 PSI) |

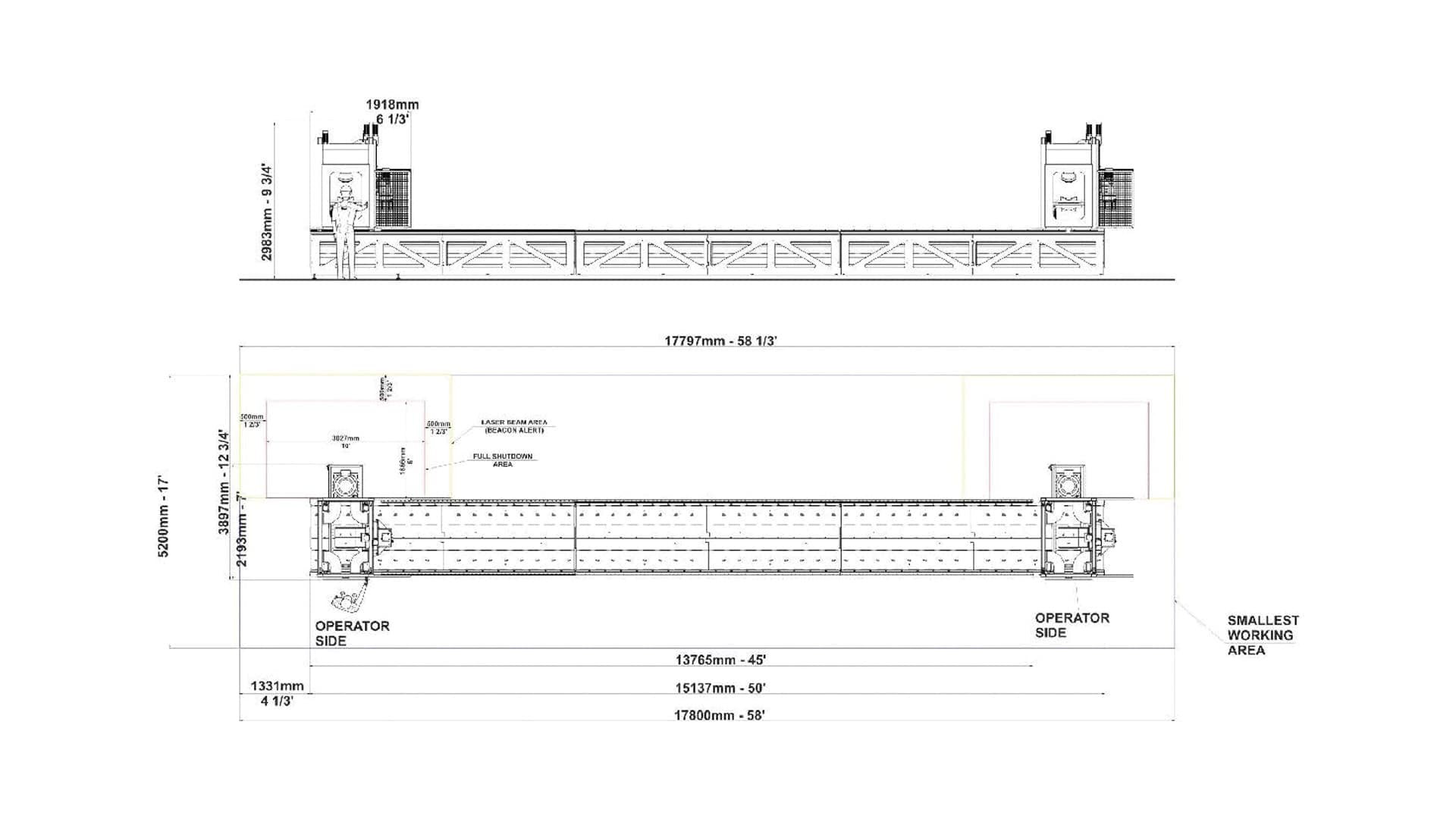

| Dimensions | 17797 x 3000 x 2983 mm |
| Weight | 8560 Kg |
