Ritmo Basic 160 Easy Life Butt Fusion Machine Ø 40-160 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

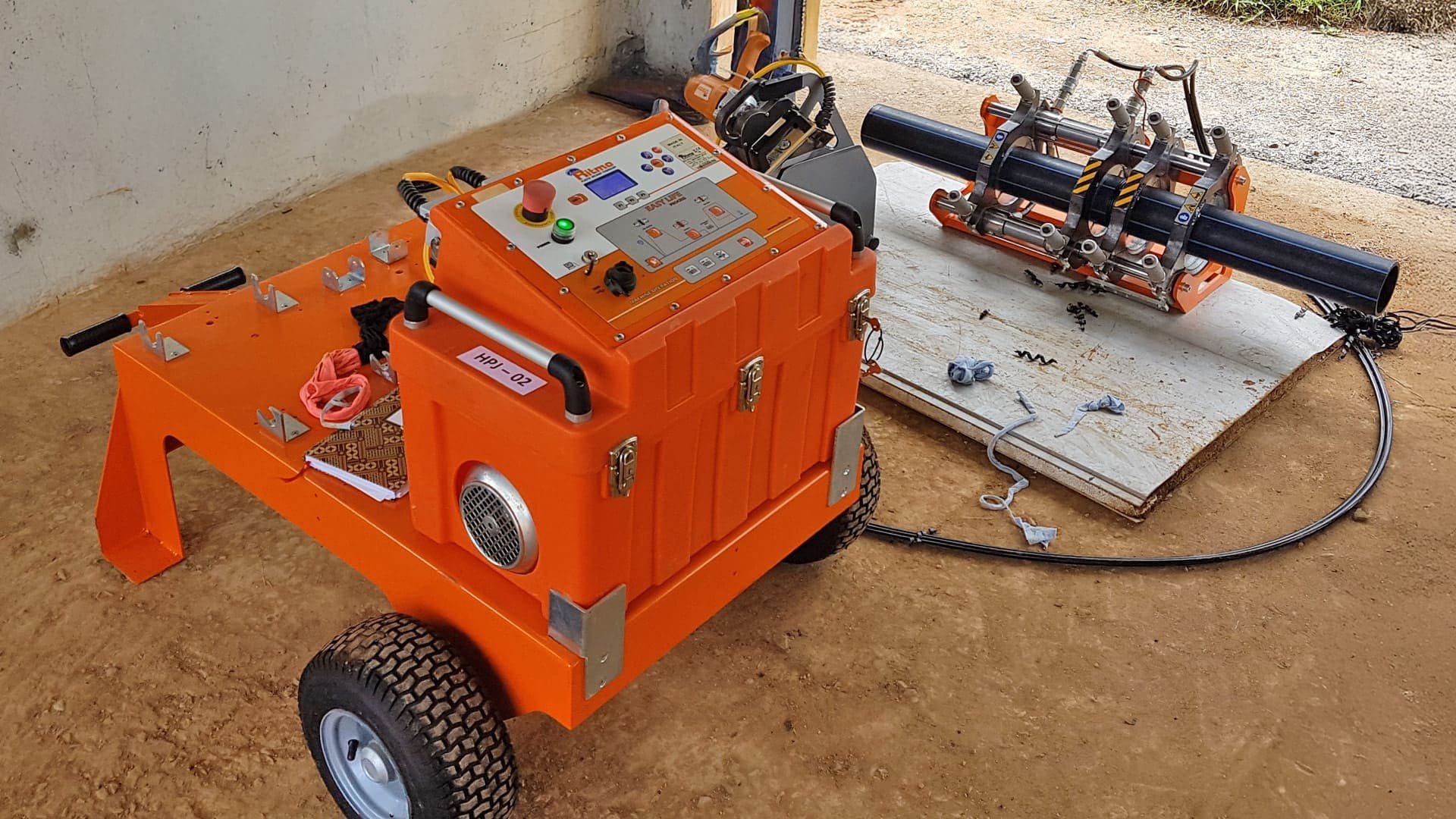

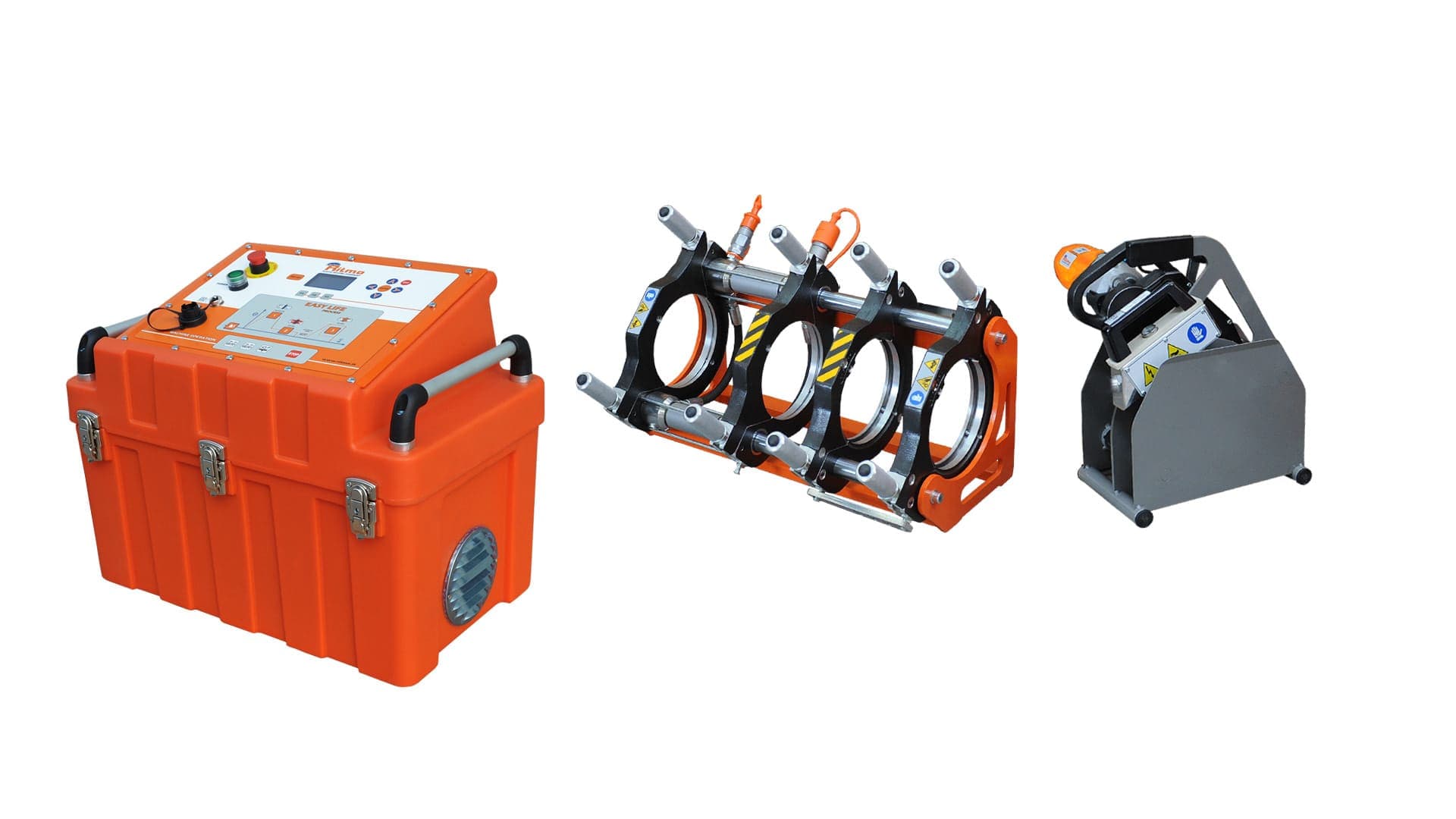

Basic 160 Easy Life runs an automated welding cycle across Ø 40-160 mm in a 31 kg machine — the choice for service connections and repairs where joint quality must not depend on who makes it.

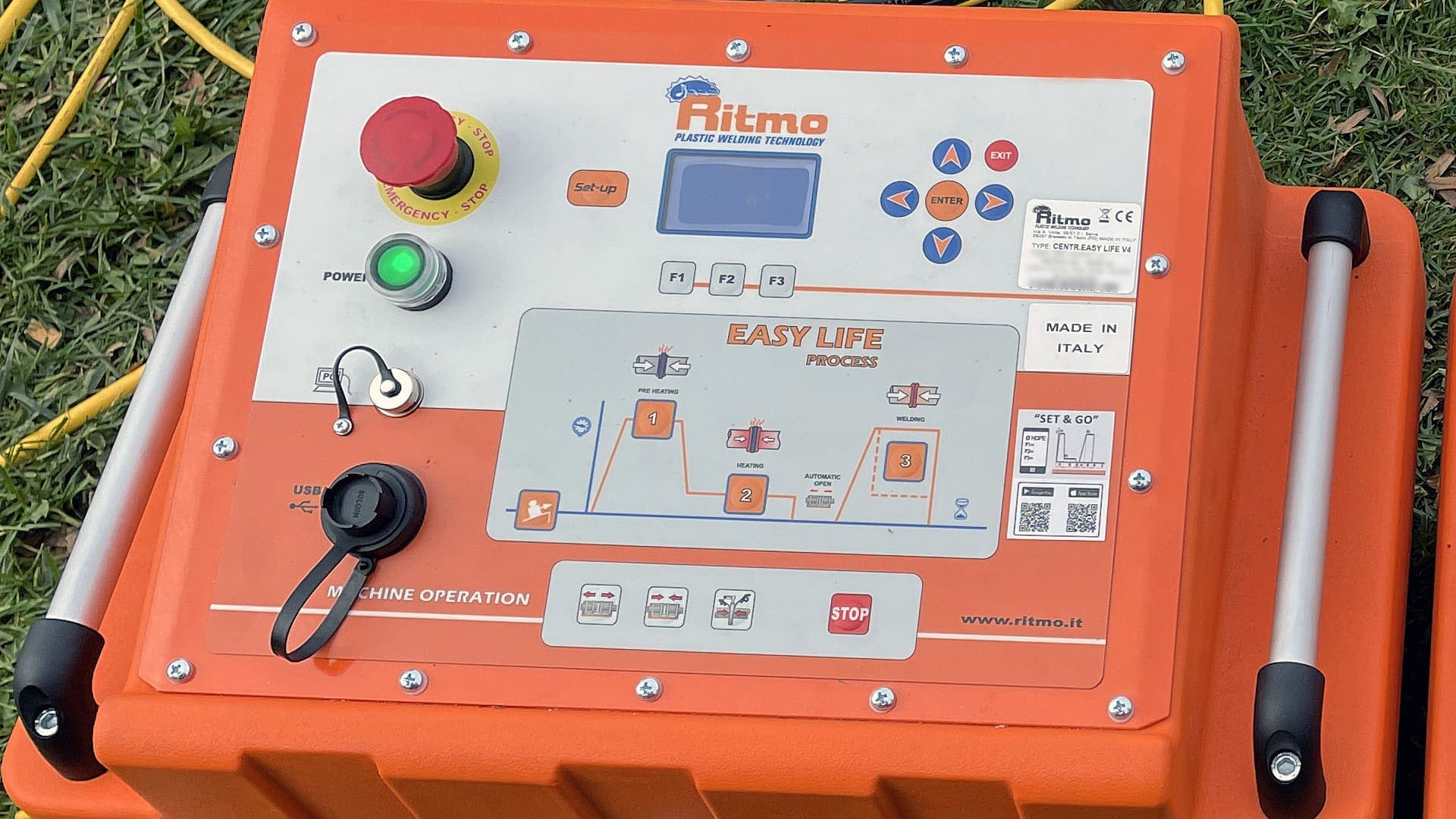

The Easy Life system standardises the welding cycle by taking it out of the operator's hands: the operator enters the parameters and the machine manages heating, changeover and cooling pressure automatically. The removable control panel carries a GPS device, so job site location and welding data are recorded. On sites with several operators, that is what stops joint quality varying from person to person.
Technical specifications
| Working range | 40 ÷ 160 mm; 1” IPS ÷ 5” IPS; 3” DIPS ÷ 4” DIPS |
|---|---|
| Power supply | 110 V Single Phase 50/60 Hz; 230 V Single Phase 50/60 Hz |
| Total absorbed power | 1100 W |
| Suggested power generator | 3,5 ÷ 4kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 20’ minutes |
| Memory | 4000 cycles |
| Pre-set welding cycles | 50 cycles |
| Wi-Fi Ready | App "SET & GO PRO" |
| Dimensions Body machine (W x D x H) | 606 x 365 x 375 mm (23.9 x 14.4 x 14.8 in) |
| Dimensions gearcase (W x D x H) | 470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in) |
| Weight Body machine | 31 Kg (68 lb) |
| Weight standard composition | 75 Kg (165 lb) |
