Ritmo Basic 250 Easy Life Butt Fusion Machine Ø 75-250 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

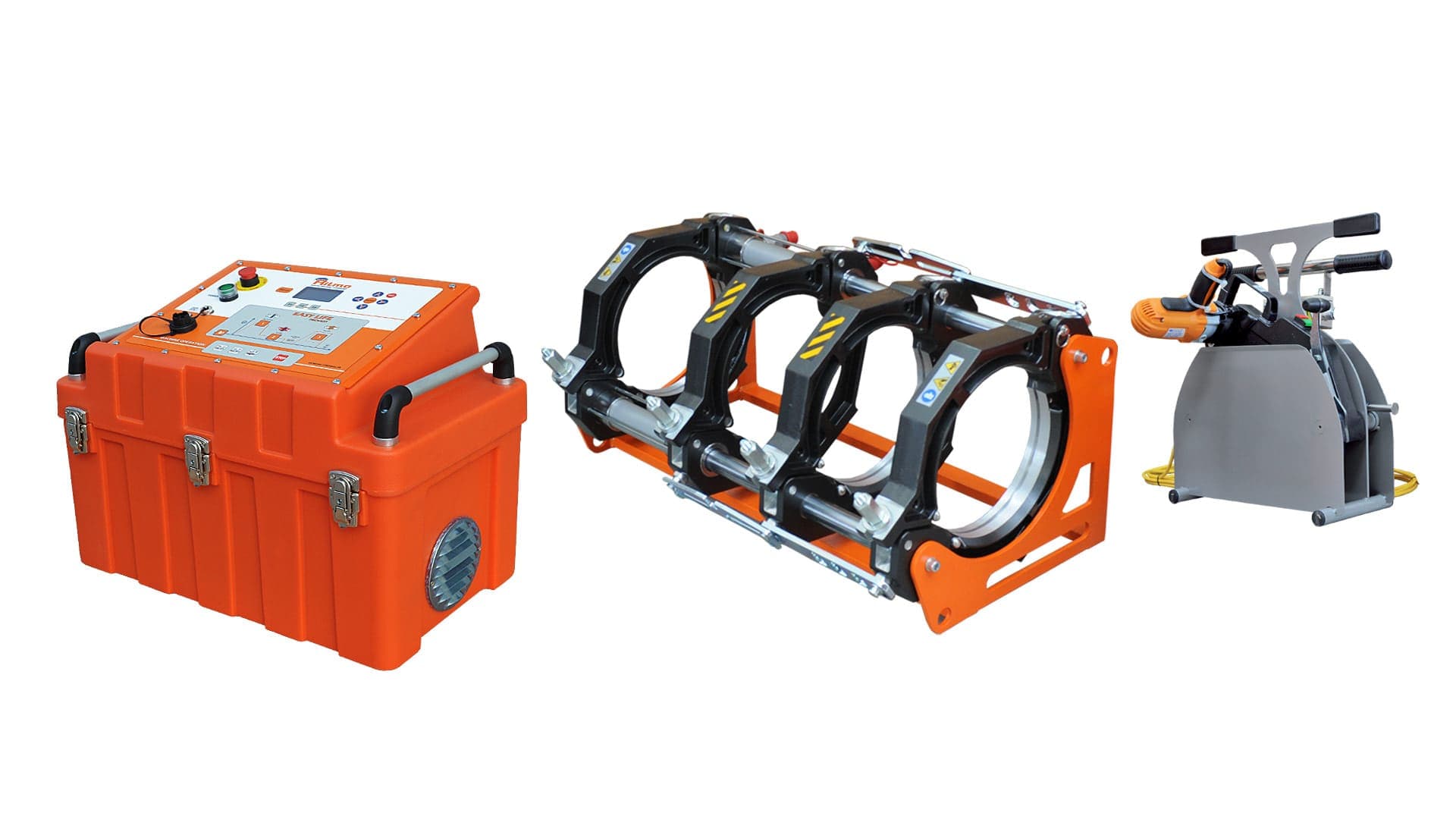

Basic 250 Easy Life is a 63 kg machine welding Ø 75-250 mm on an automated cycle — the same diameter band as the manual hydraulic Basic 250, but with a recorded, repeatable cycle.

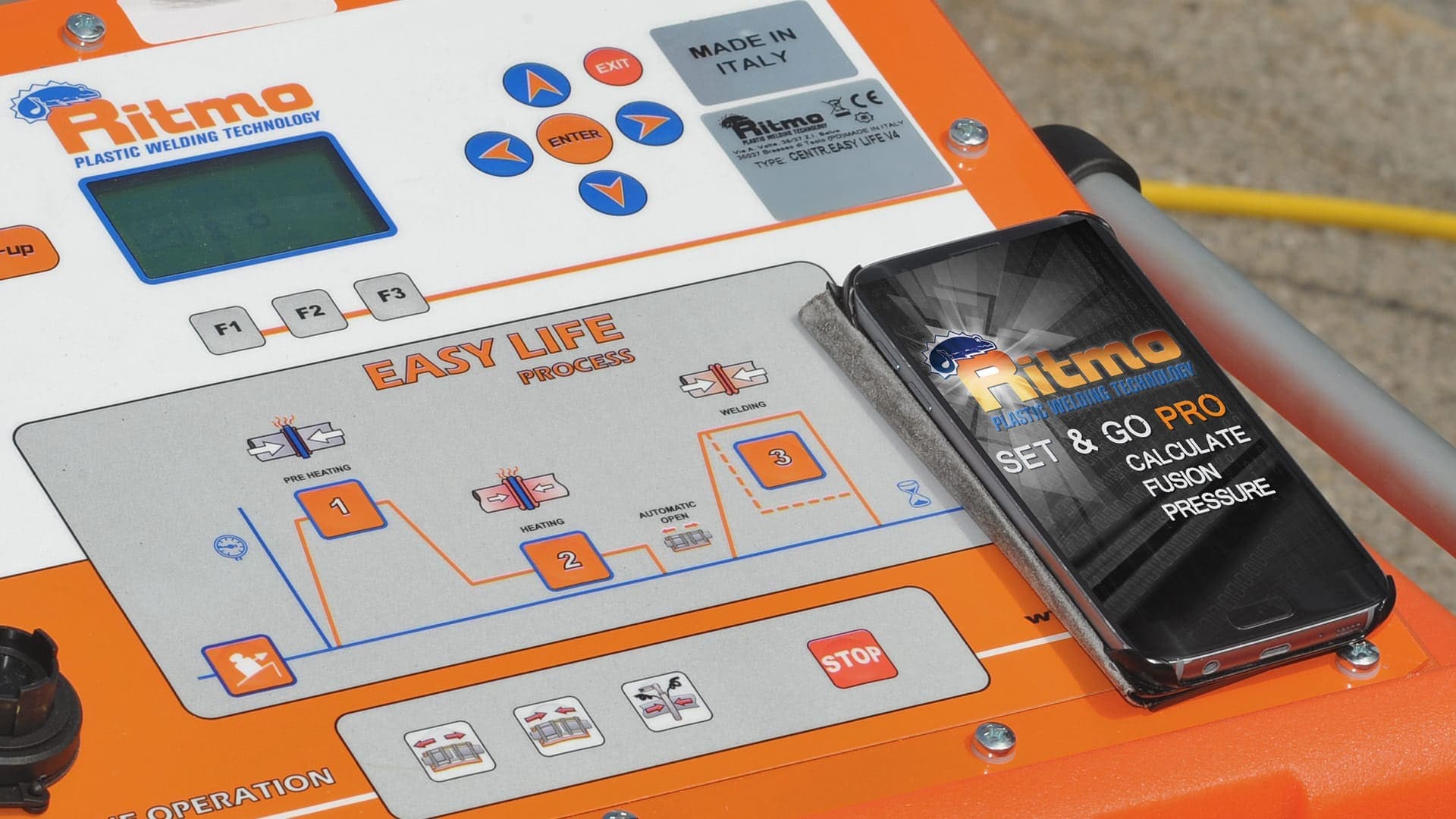

The Easy Life system standardises the welding cycle by taking it out of the operator's hands: the operator enters the parameters and the machine manages heating, changeover and cooling pressure automatically. The removable control panel carries a GPS device, so job site location and welding data are recorded. On sites with several operators, that is what stops joint quality varying from person to person.
Technical specifications
| Working range | 75 ÷ 250 mm; 2” IPS ÷ 8” IPS; 3’’ DIPS ÷ 8” DIPS |
|---|---|
| Inserts with SmartLock | Yes |
| Power supply | 110 V Single Phase 50/60 Hz; 230 V Single Phase 50/60 Hz |
| Total absorbed power | 1100 W |
| Suggested power generator | 5,5 ÷ 6 kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 20’ minutes |
| Memory | 4000 cycles |
| Pre-set welding cycles | 52 cycles |
| Wi-Fi Ready | App "SET & GO PRO" |
| Dimensions Body machine (W x D x H) | 850 x 470 x 400 mm (33.5 x 18.5 x 15.7 in) |
| Dimensions gearcase (W x D x H) | 470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in) |
| Weight Body machine | 63 Kg (138.9) |
| Weight standard composition | 121 Kg (267 lb) |
