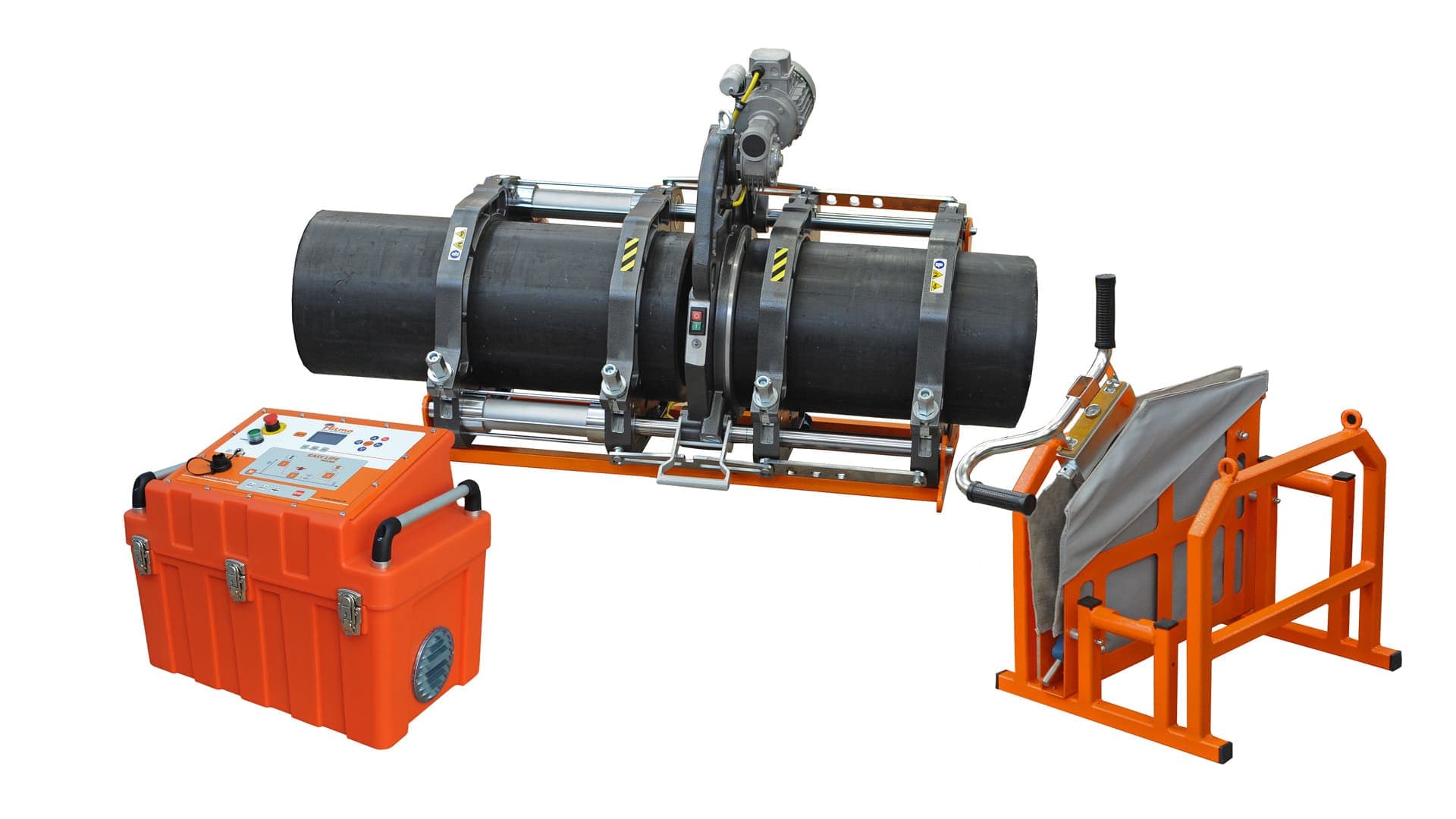

Ritmo Basic 355 Easy Life Butt Fusion Machine Ø 125-355 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details
Basic 355 Easy Life is a 100 kg machine running an automated cycle across Ø 125-355 mm — trunk main diameters, on jobs where recording the welding parameters is a specification requirement.

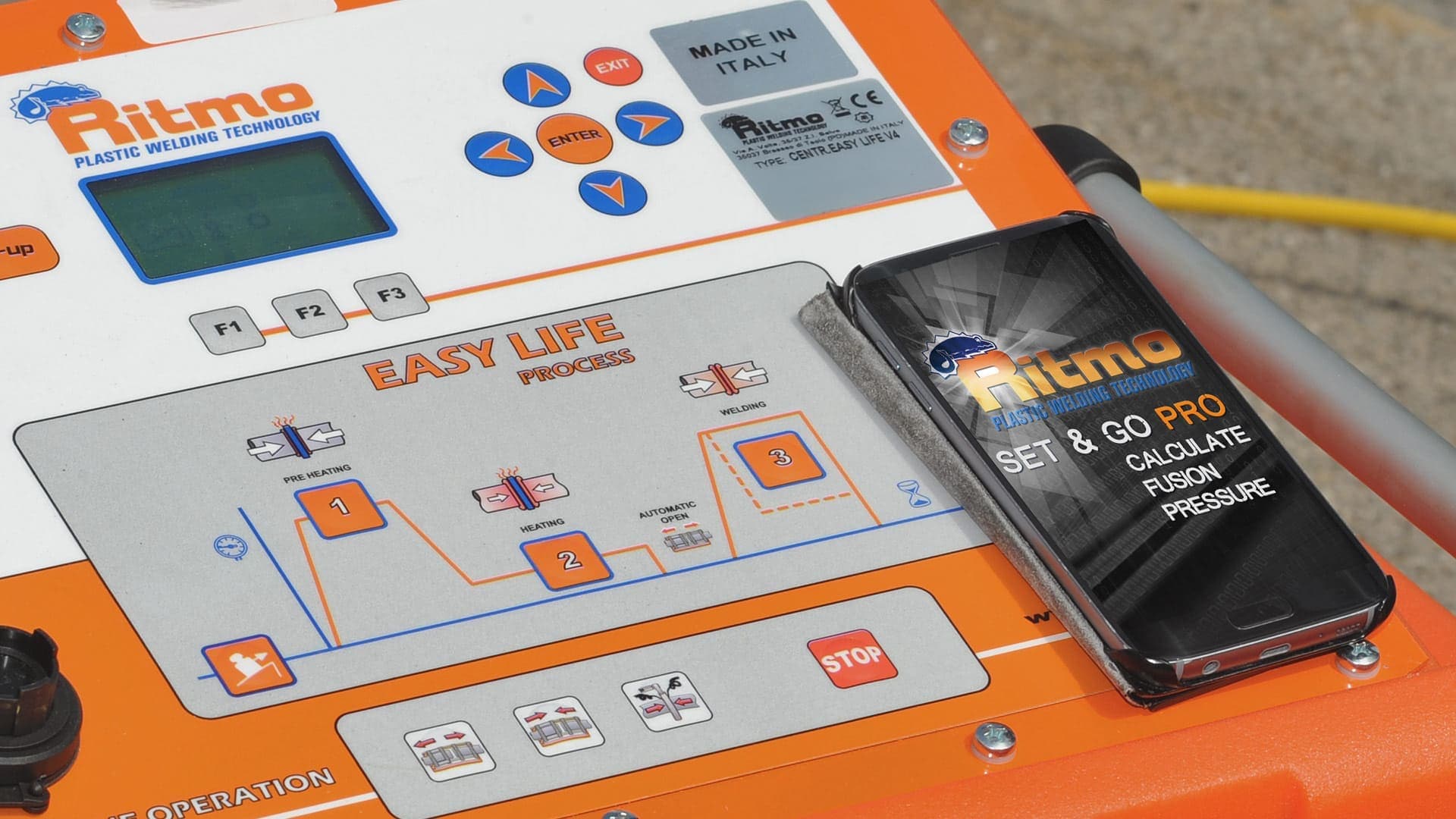

The Easy Life system standardises the welding cycle by taking it out of the operator's hands: the operator enters the parameters and the machine manages heating, changeover and cooling pressure automatically. The removable control panel carries a GPS device, so job site location and welding data are recorded. On sites with several operators, that is what stops joint quality varying from person to person.
Technical specifications
| Working range | 125 ÷ 355 mm; 4” IPS ÷ 12” IPS; 4’’ DIPS ÷ 12” DIPS |
|---|---|
| Master Ø 250 mm | Yes |
| Inserts with SmartLock | Yes |
| Power supply | 230 V Single Phase 50/60 Hz |
| Total absorbed power | 1100 W |
| Suggested power generator | 8 ÷ 8,5 Kva |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 20’ minutes |
| Memory | 4000 cycles |
| Pre-set welding cycles | 54 cycles |
| Wi-Fi Ready | App "SET & GO PRO" |
| Dimensions Body machine (W x D x H) | 1077 x 510 x 715 mm (42.4 x 20 x 28 in) |
| Dimensions gearcase (W x D x H) | 470 x 250 x 370 mm (18.5 x 9.8 x 14.5 in) |
| Weight Body machine | 100 Kg (220.5 lb) |
| Weight standard composition | 205 Kg (452 lb) |
