Ritmo Delta 1000 Trailer Butt Fusion Machine Ø 355-1000 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

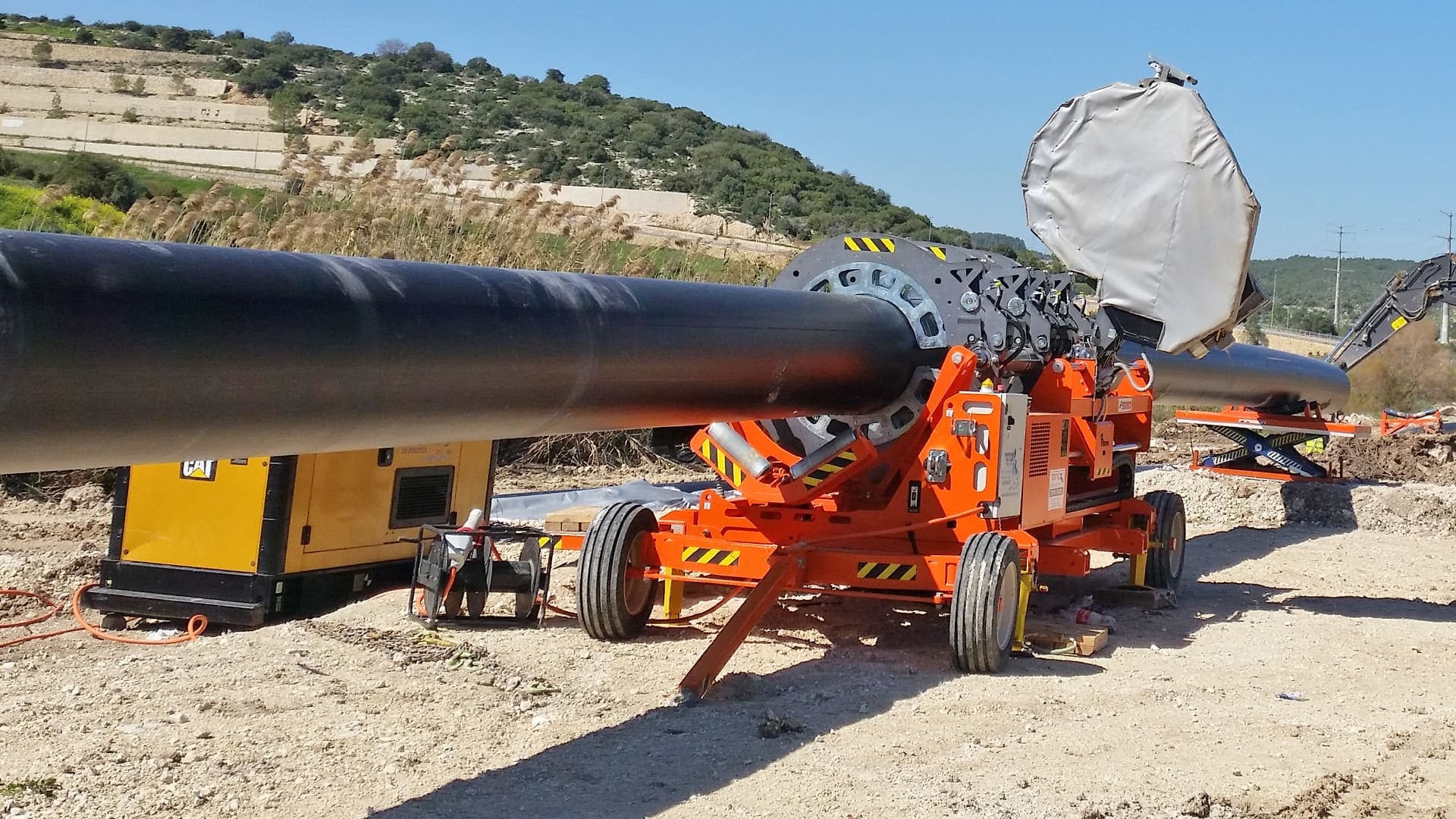

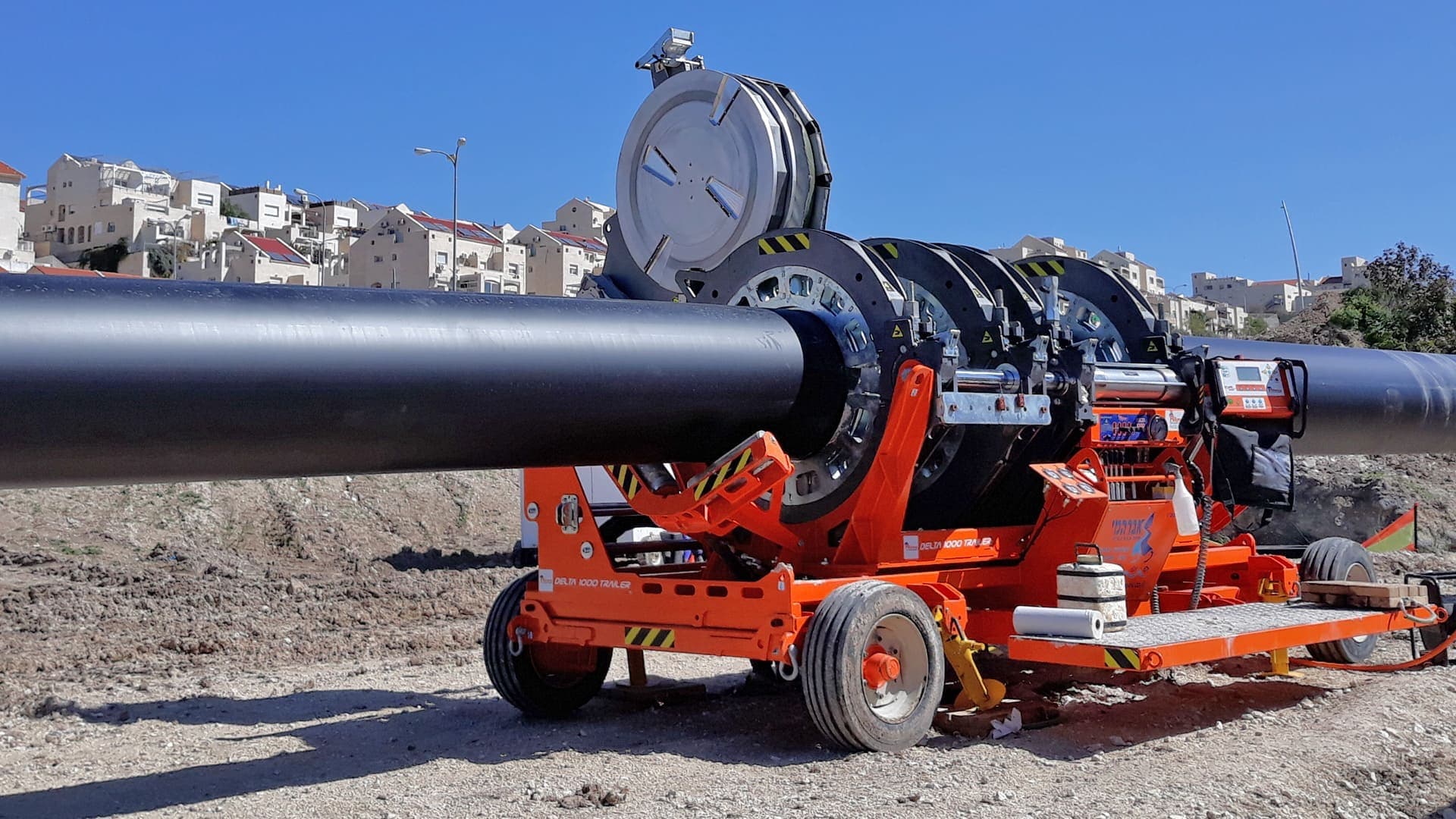

Delta 1000 Trailer is a 4,385 kg heavy-duty trailer machine for Ø 355-1000 mm. On large transmission mains it replaces a fixed welding yard with a machine that works its way along the route.

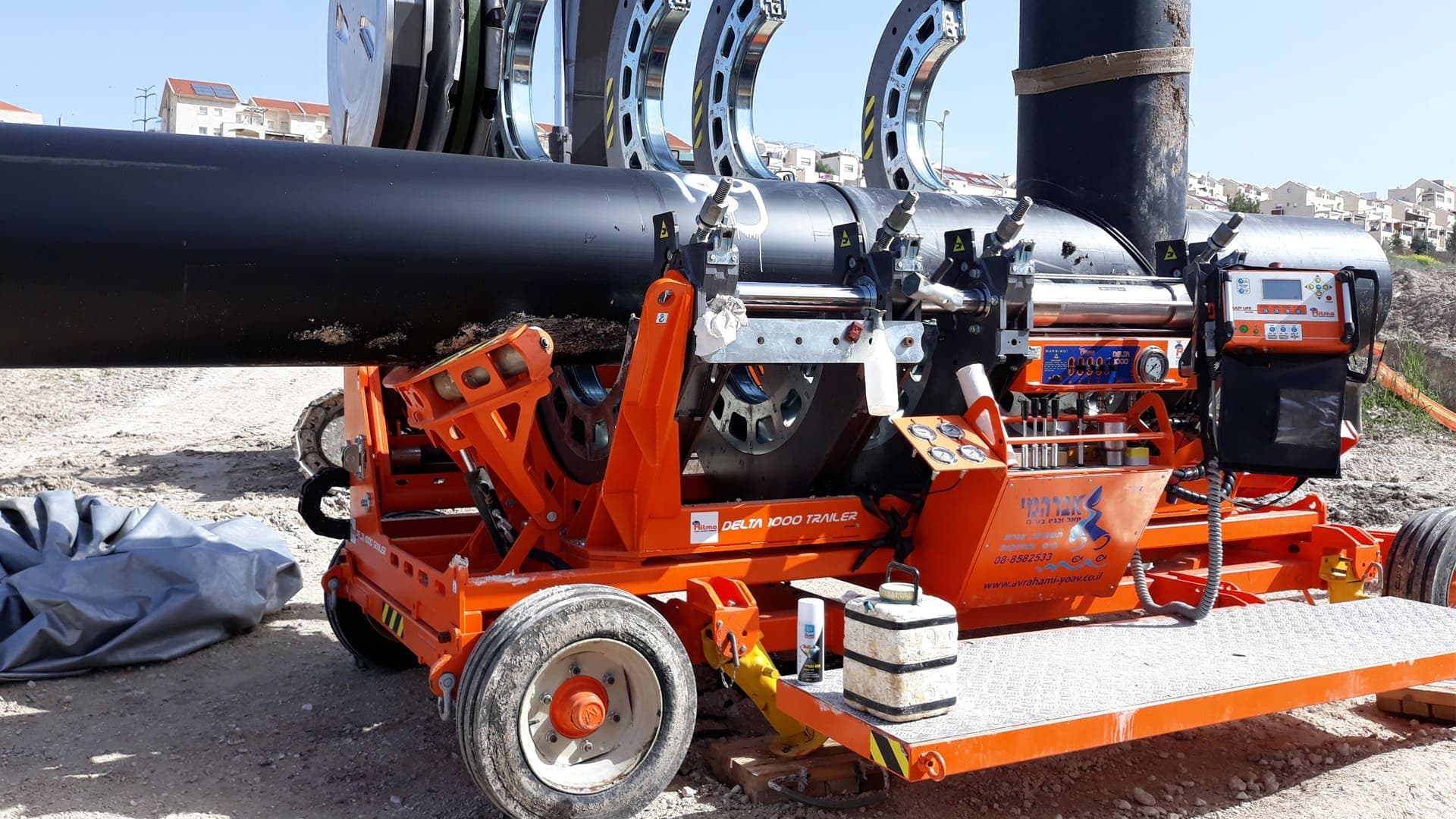

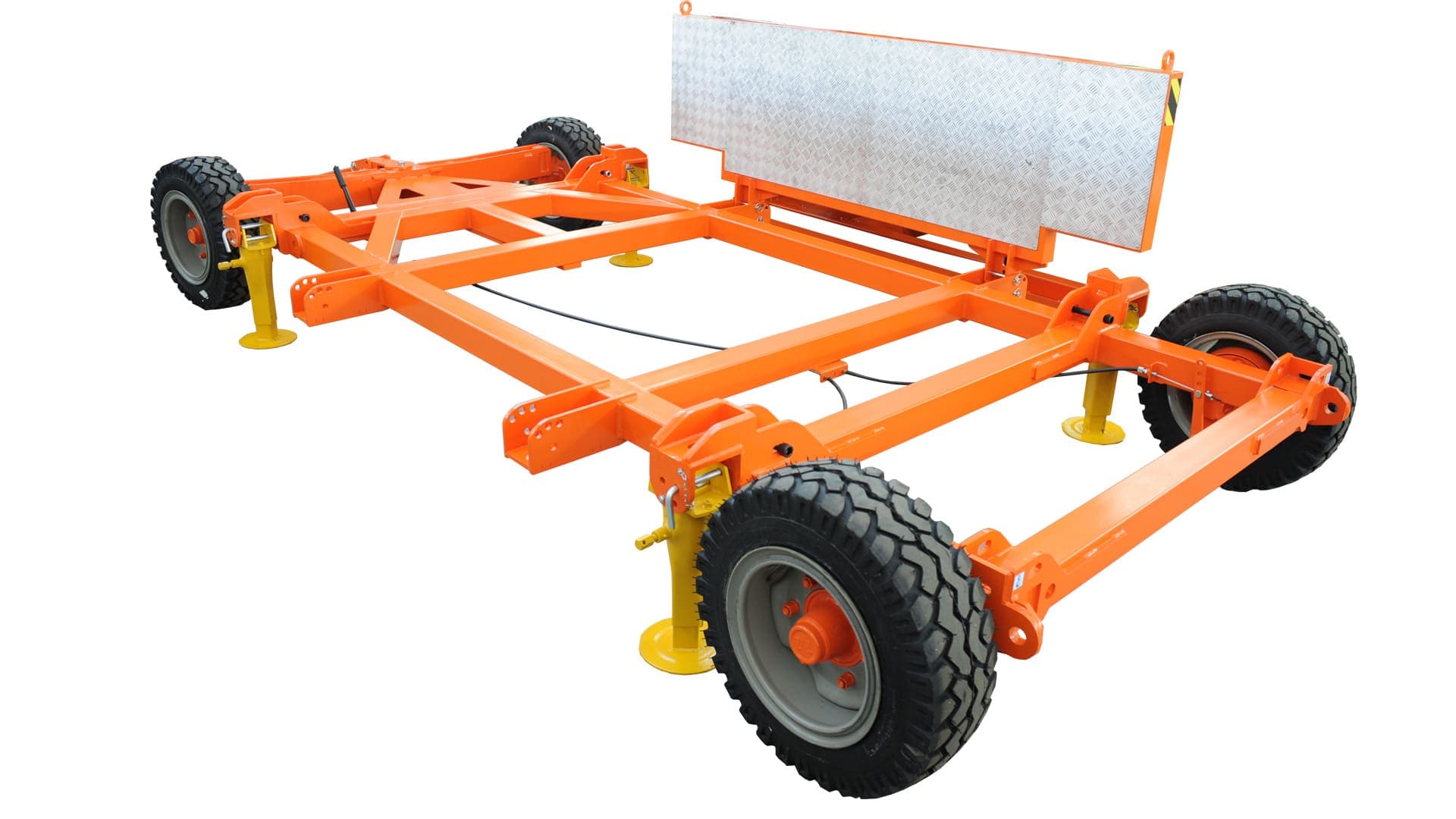

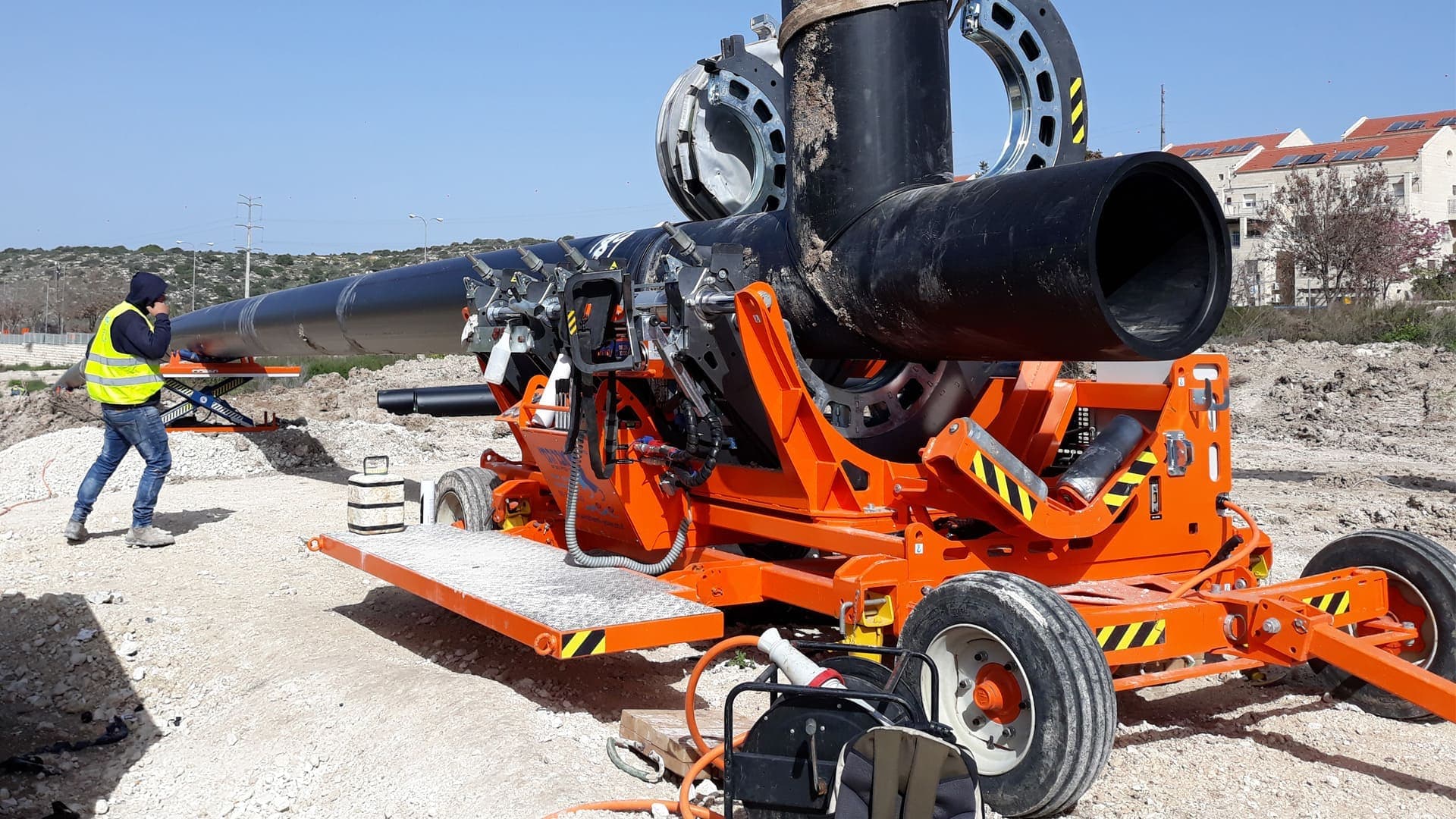

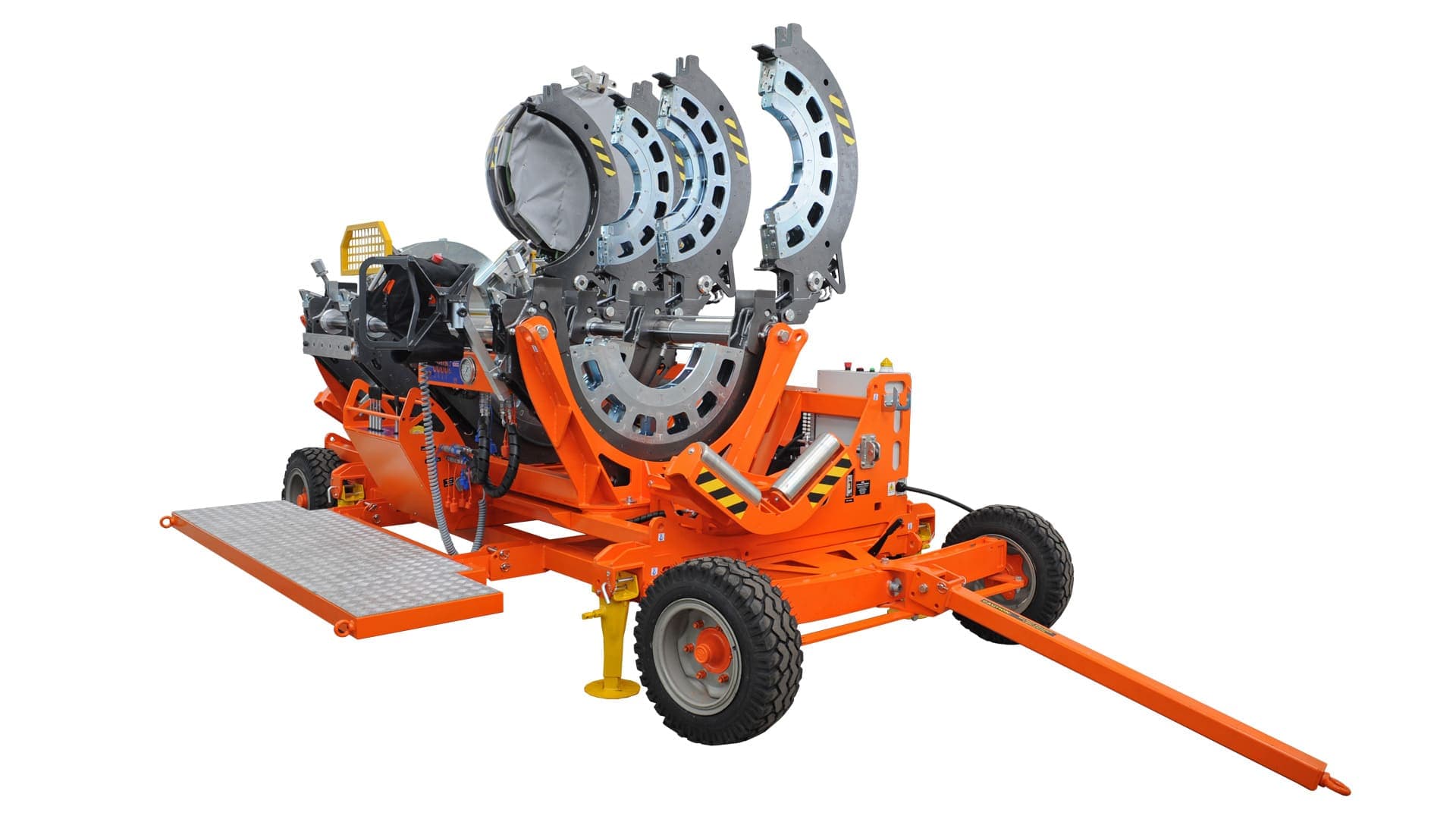

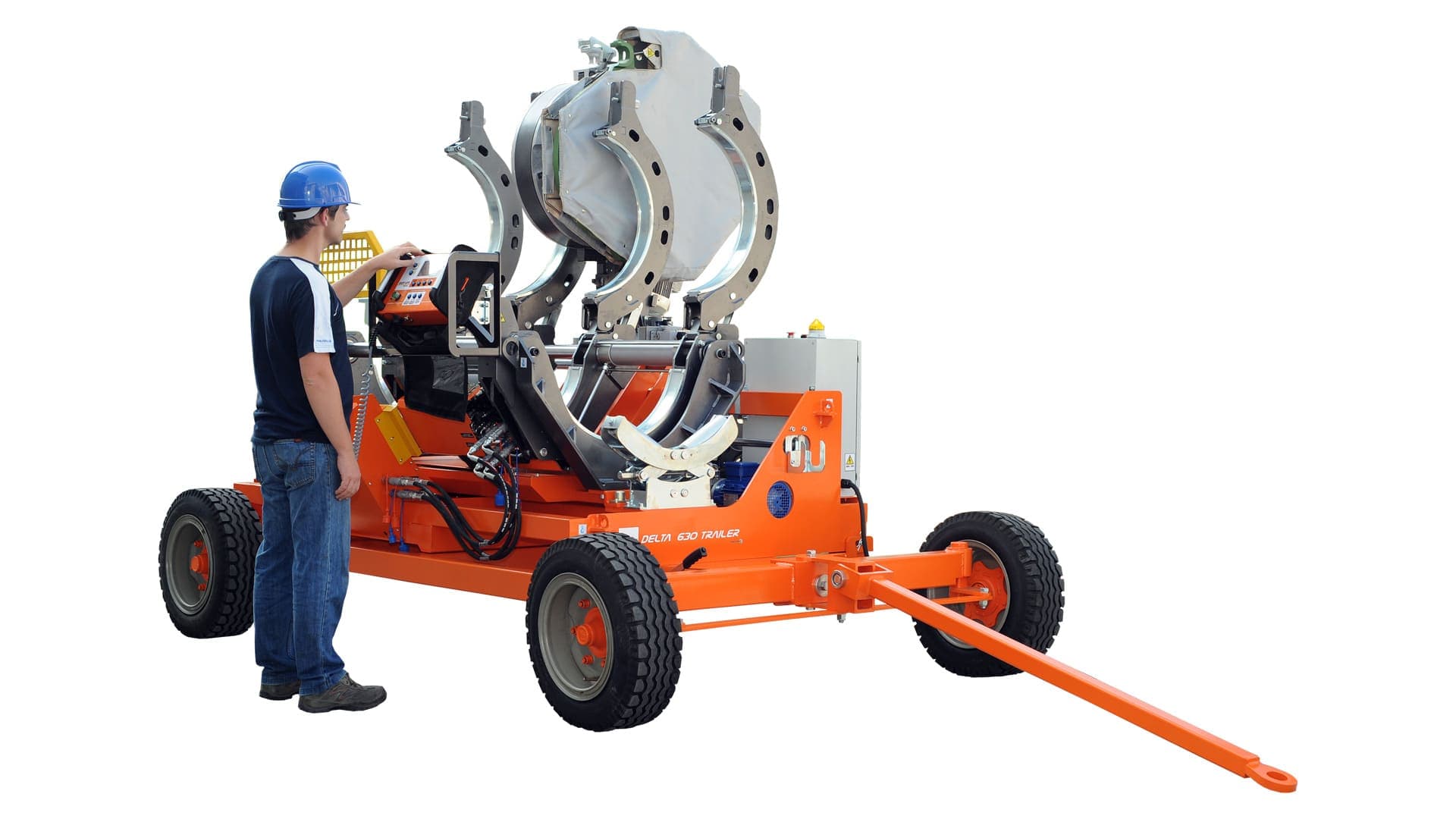

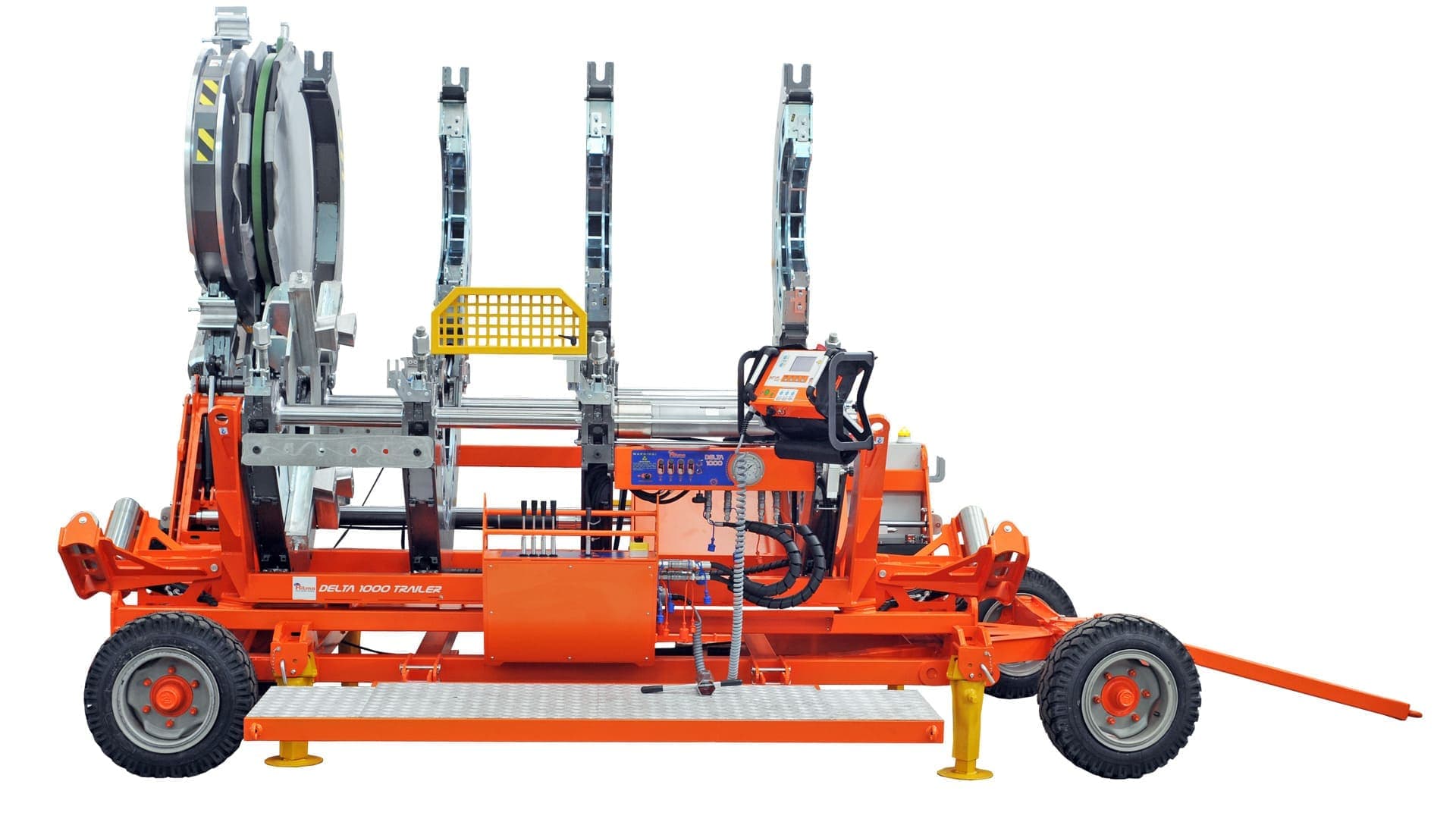

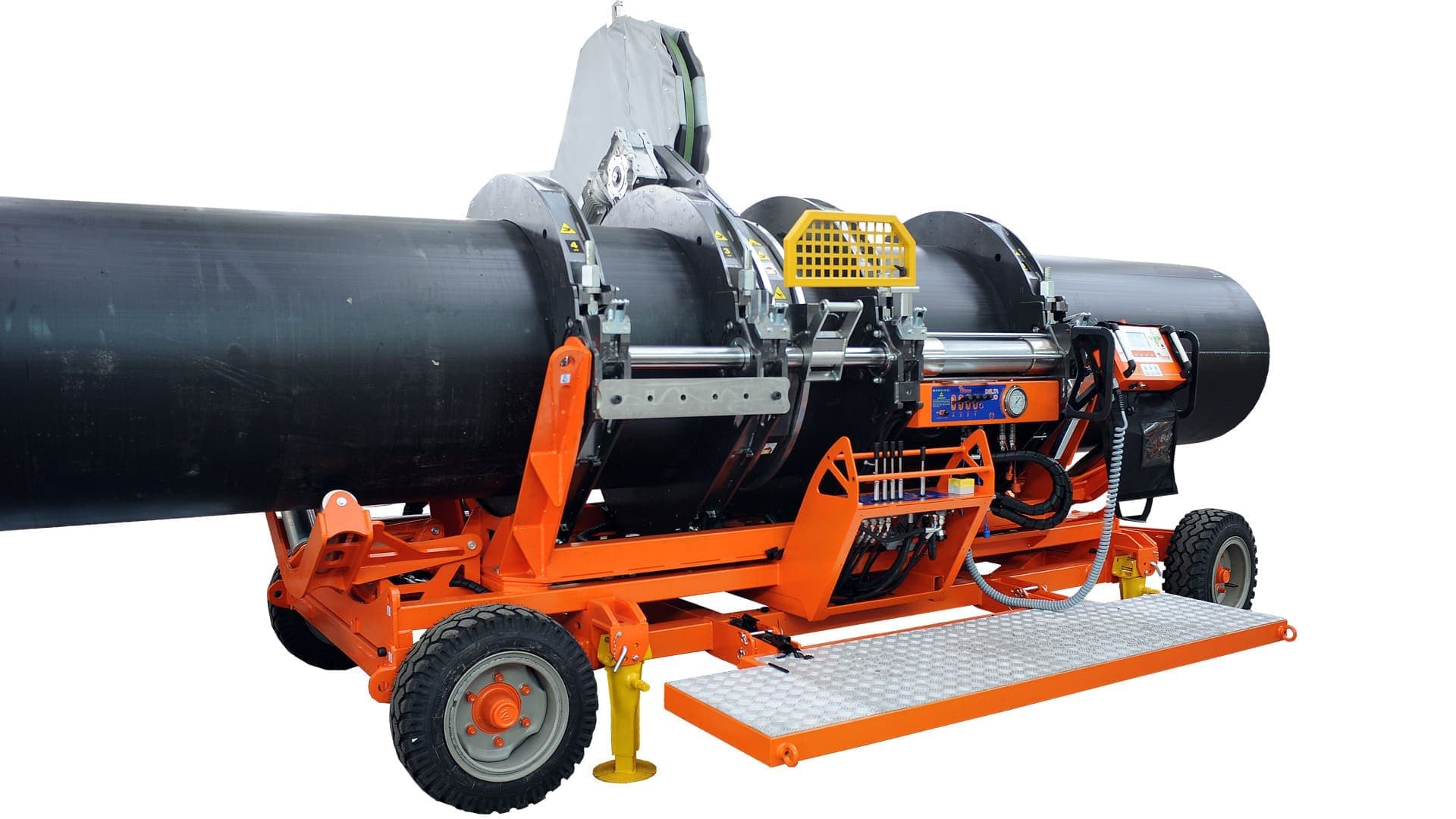

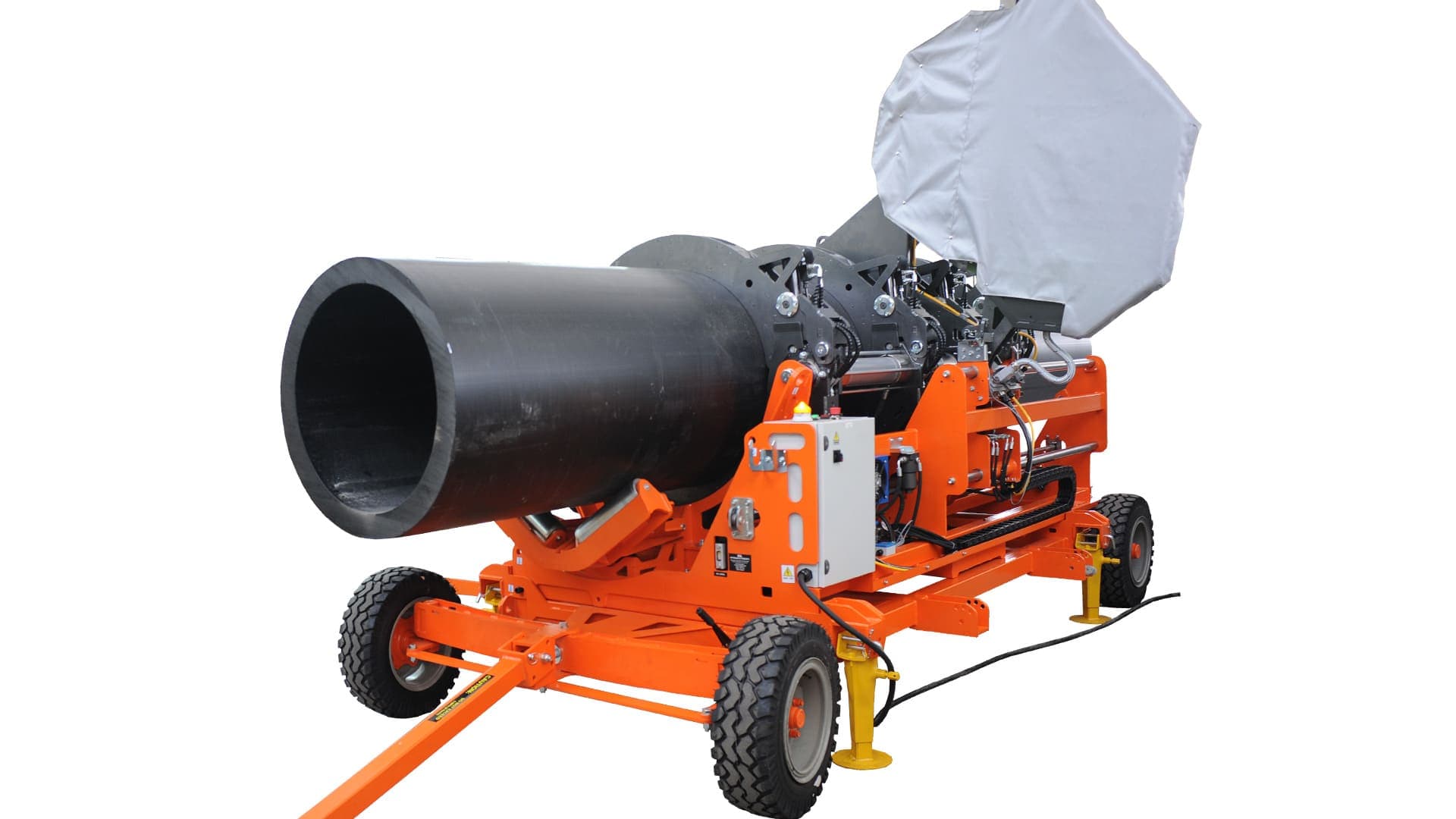

On the Trailer line the machine sits on a trailer with steering wheels, carrying every functional element on board so one person can position it around the site. The Easy Life automated welding system, a removable control panel with GPS, an on-board electric milling cutter and the tool-free SmartLock reduction system are standard.
Technical specifications
| Working range | 355 ÷ 1000 mm;14” IPS ÷ 36”IPS; 14” DIPS ÷ 36”DIPS |
|---|---|
| International standards | ISO 21307 HIGH PRESSURE, ASTM F2626 |
| Traceability GPS | Yes |
| Memory | 4000 cycles |
| Memory favorite welds | 20 cycles |
| Power supply | 230 V Three-phase- 50/60 Hz; 400 V Three-phase - 50/60 Hz |
| Total absorbed power | 32000 W |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Pressure | up to 250 bar |
| Dimensions Body machine (W x D x H) | 3890 x 2890 x 2845 mm 153.1”x113.8”x 112” |
| Weight Body machine | 4385 Kg (9667 lb) |
| Weight standard composition | 4600 Kg (10141,3Ib) |
