Ritmo Delta 250 Trailer M Butt Fusion Machine Ø 75-250 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details
Delta 250 Trailer M is the manual cycle version of the trailer machine for Ø 75-250 mm. At 105 kg it stays movable around the site while costing less on work that does not need automation.

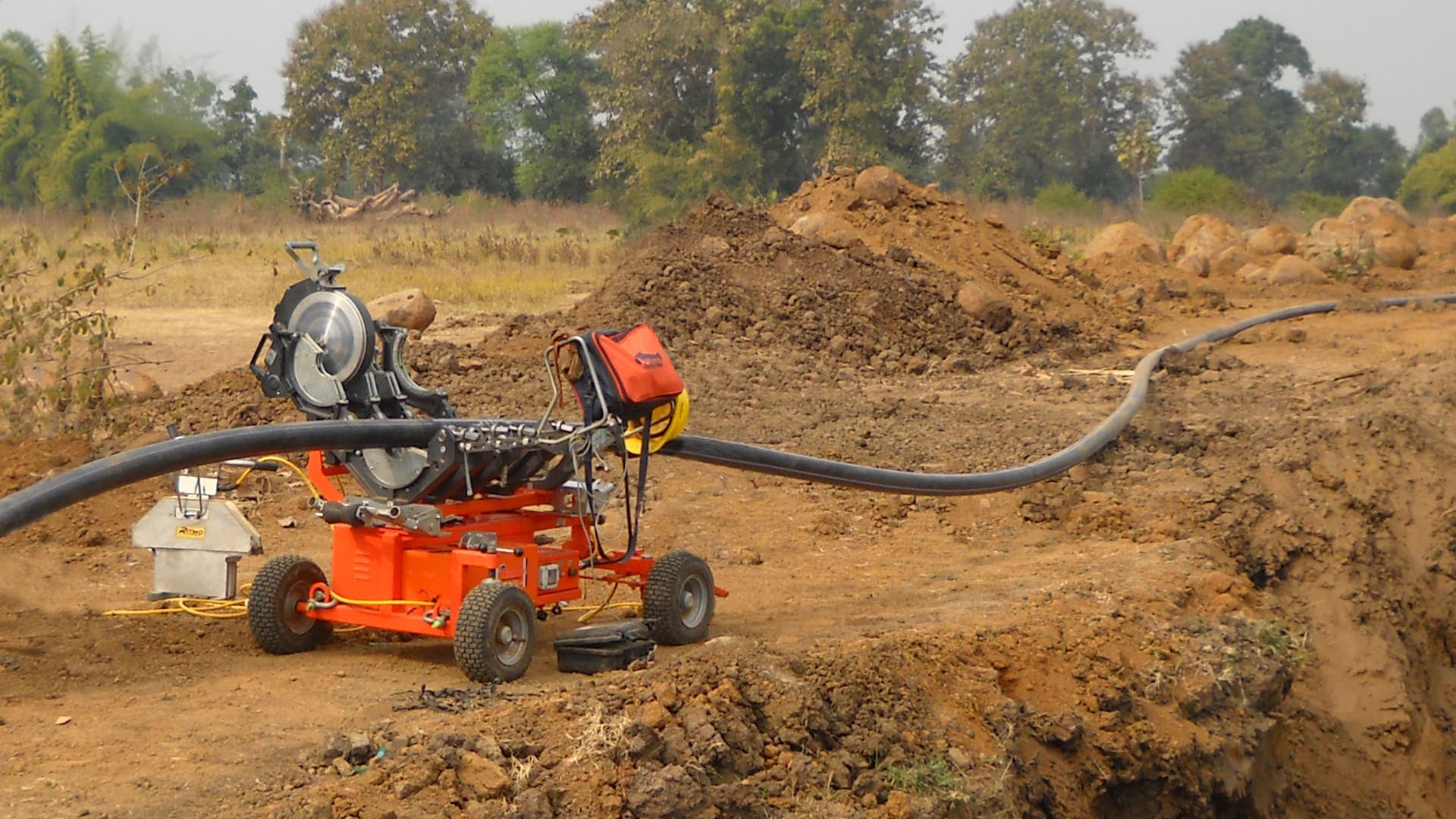

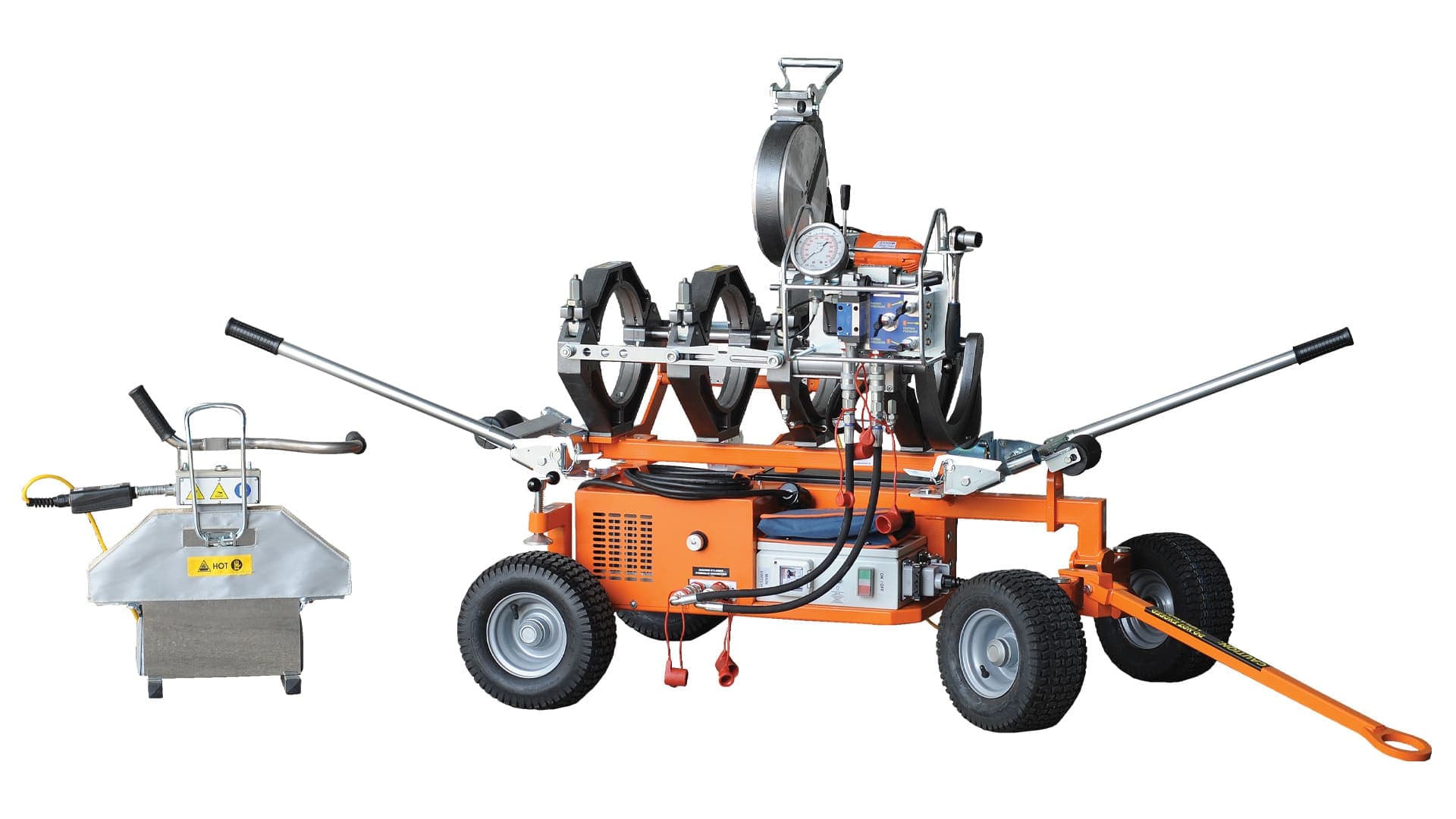

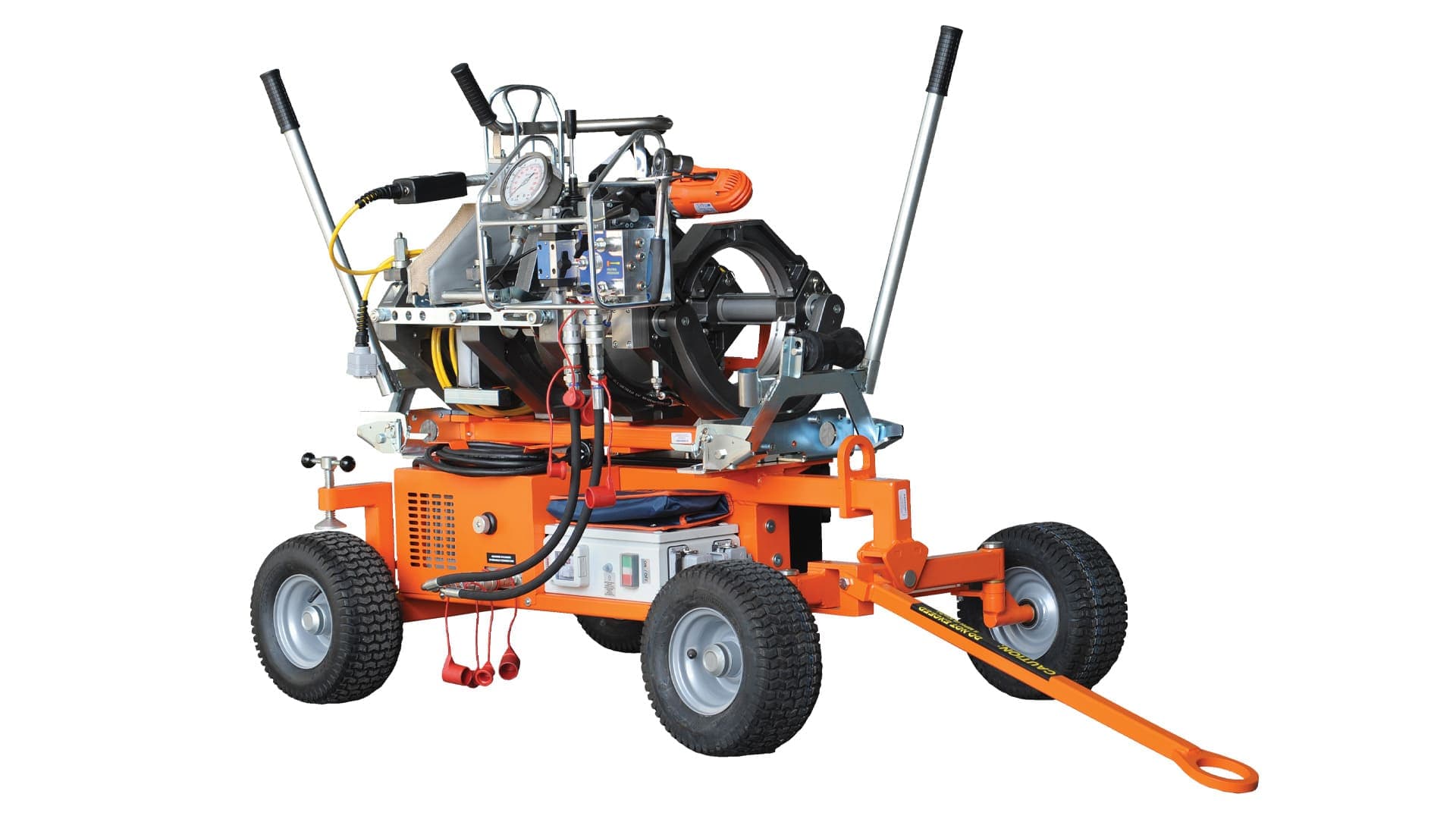

On the Trailer line the machine sits on a trailer with steering wheels, carrying every functional element on board so one person can position it around the site. The Easy Life automated welding system, a removable control panel with GPS, an on-board electric milling cutter and the tool-free SmartLock reduction system are standard.
Technical specifications
| Working range | 75 ÷ 250 mm; 2” IPS ÷ 8” IPS; 3” DIPS ÷ 8” DIPS |
|---|---|
| International standards | ISO 21307 HIGH PRESSURE, ASTM F2620 |
| Traceability GPS | Yes |
| Memory | 4000 cycles |
| Memory favorite welds | 20 cycles |
| Power supply | 110 V Single-phase - 50/60 Hz; 230 V Single-phase- 50/60 Hz |
| Total absorbed power | 4600 W |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Pressure | up to 150 bar |
| Dimensions Body machine (W x D x H) | 1100 x 1340 x 1300 mm 43.3” x 52.7” x 51.1 |
| Weight Body machine | 105 Kg (232 lb) |
| Weight standard composition | 227 Kg (500 lb) |
