Ritmo Delta 355 Trailer Butt Fusion Machine Ø 125-355 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details
Delta 355 Trailer is a 275 kg trailer-mounted machine for Ø 125-355 mm, built for network work at trunk main diameters where the machine moves along the route all day.

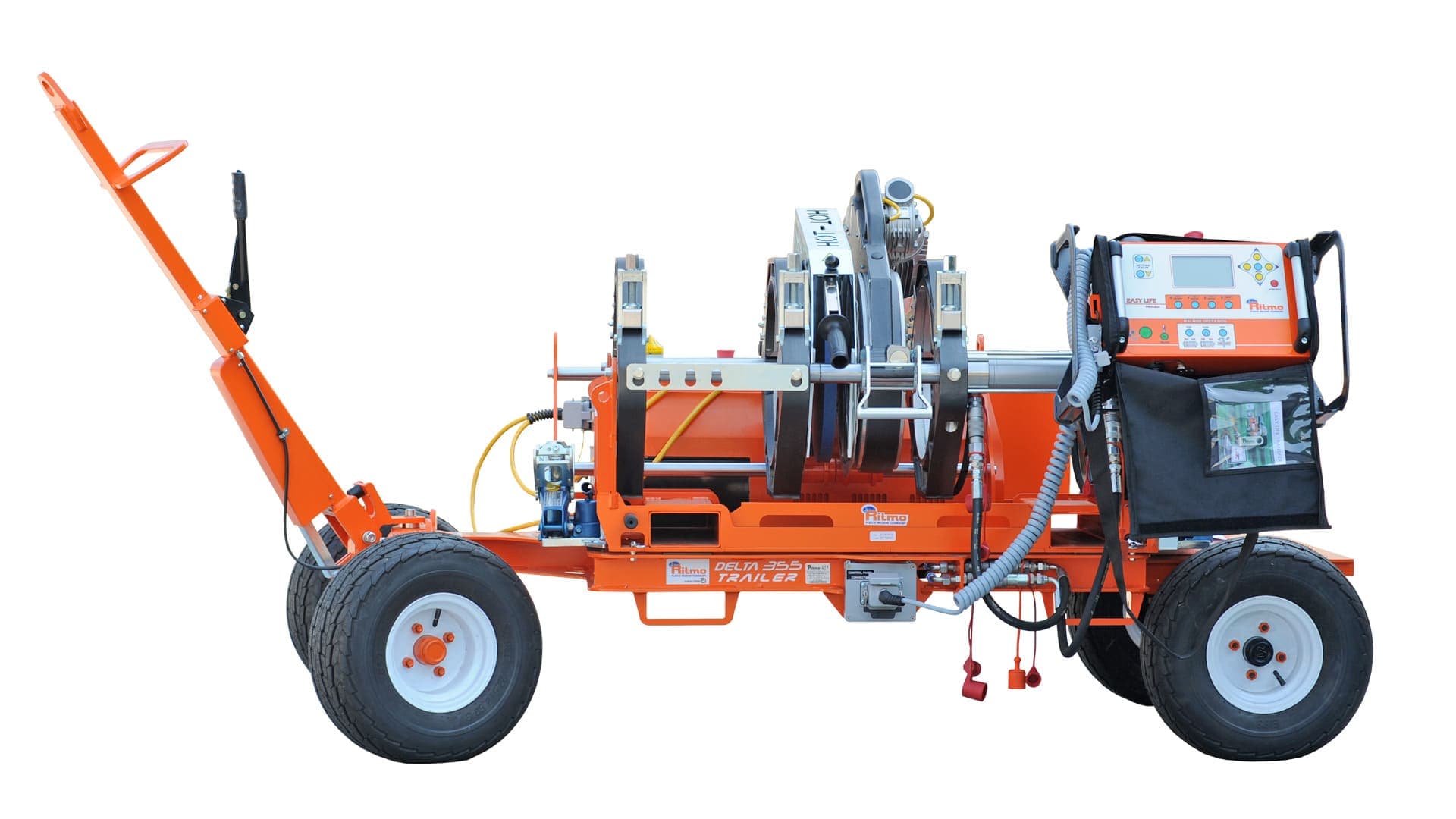

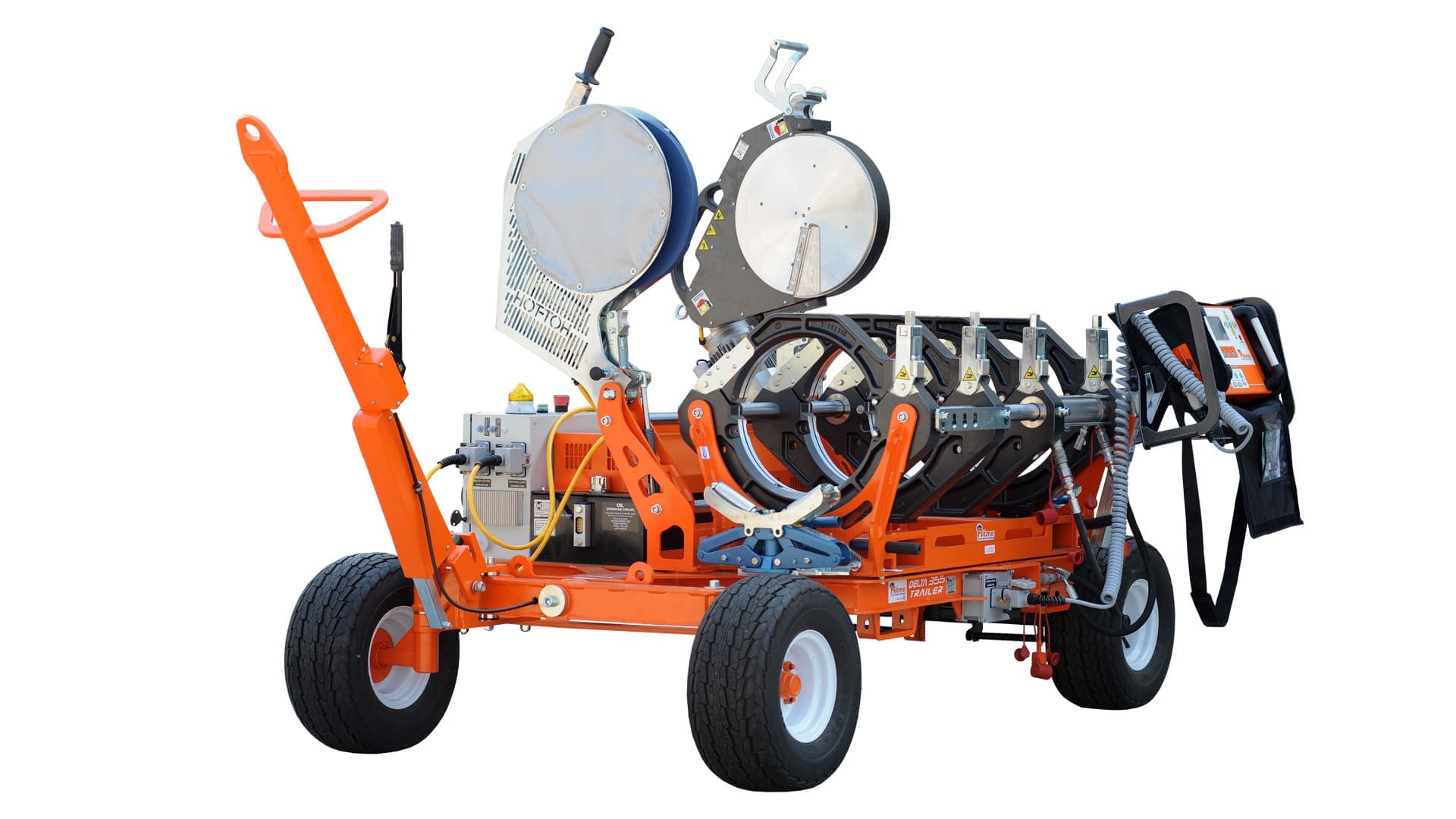

On the Trailer line the machine sits on a trailer with steering wheels, carrying every functional element on board so one person can position it around the site. The Easy Life automated welding system, a removable control panel with GPS, an on-board electric milling cutter and the tool-free SmartLock reduction system are standard.
Technical specifications
| Working range | 125 ÷ 355 mm; 4” IPS ÷ 14” IPS; 4” DIPS ÷ 12” DIPS |
|---|---|
| Master Ø 250 mm | Yes |
| International standards | ISO 21307 HIGH PRESSURE, ASTM F2622 |
| Traceability GPS | Yes |
| Memory | 4000 cycles |
| Memory favorite welds | 20 cycles |
| Power supply | 230 V Single-phase - 50/60 Hz |
| Total absorbed power | 6000 W |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Pressure | up to 130 bar |
| Dimensions Body machine (W x D x H) | 2210 x 1600 x 1335 mm 83”x 63”x 52.5” |
| Weight Body machine | 275 Kg (606 lb) |
| Weight standard composition | 550 Kg (1212,5 lb) |
