Ritmo Delta 48″ Butt Fusion Machine 28-48″ IPS
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

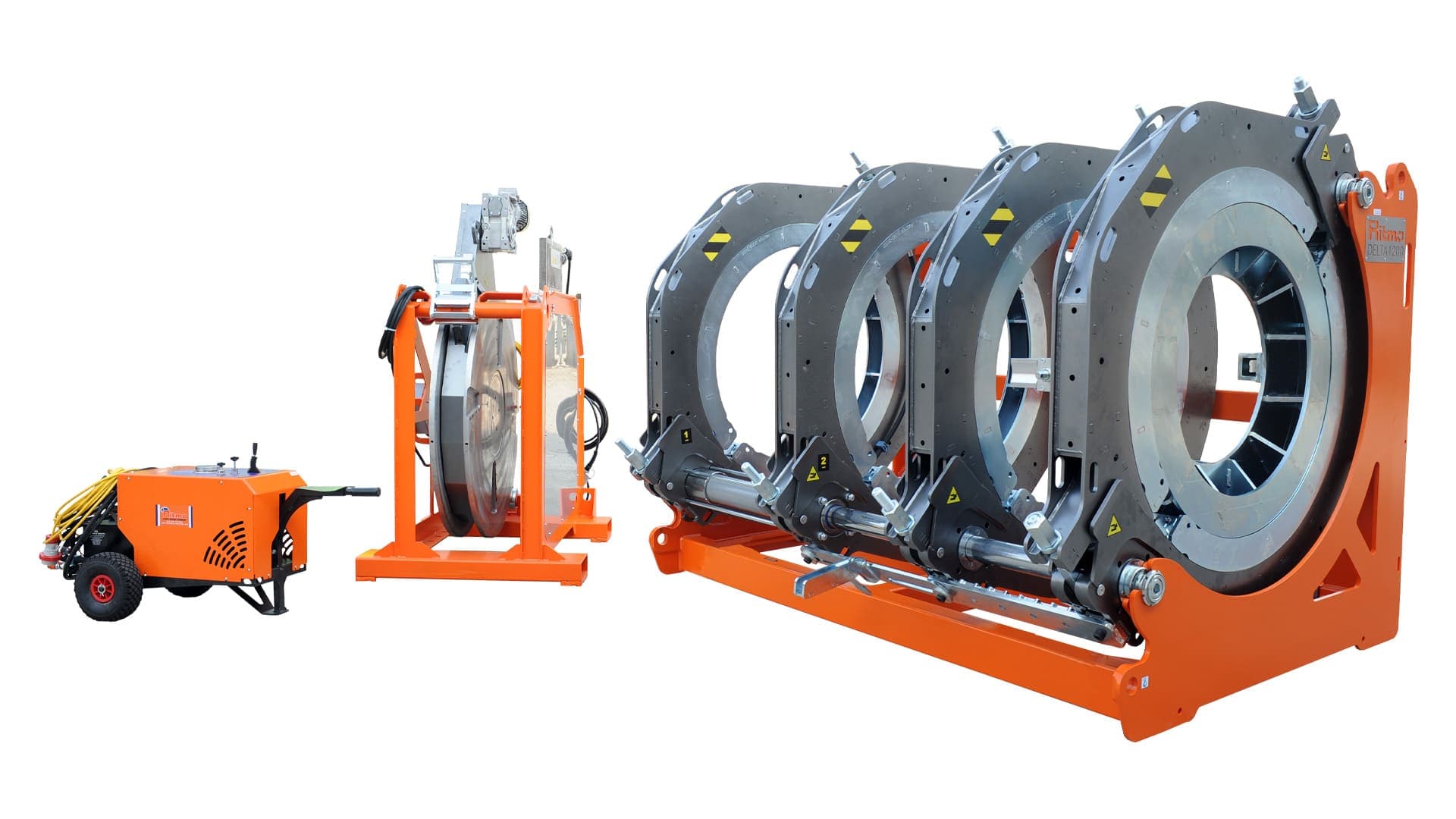

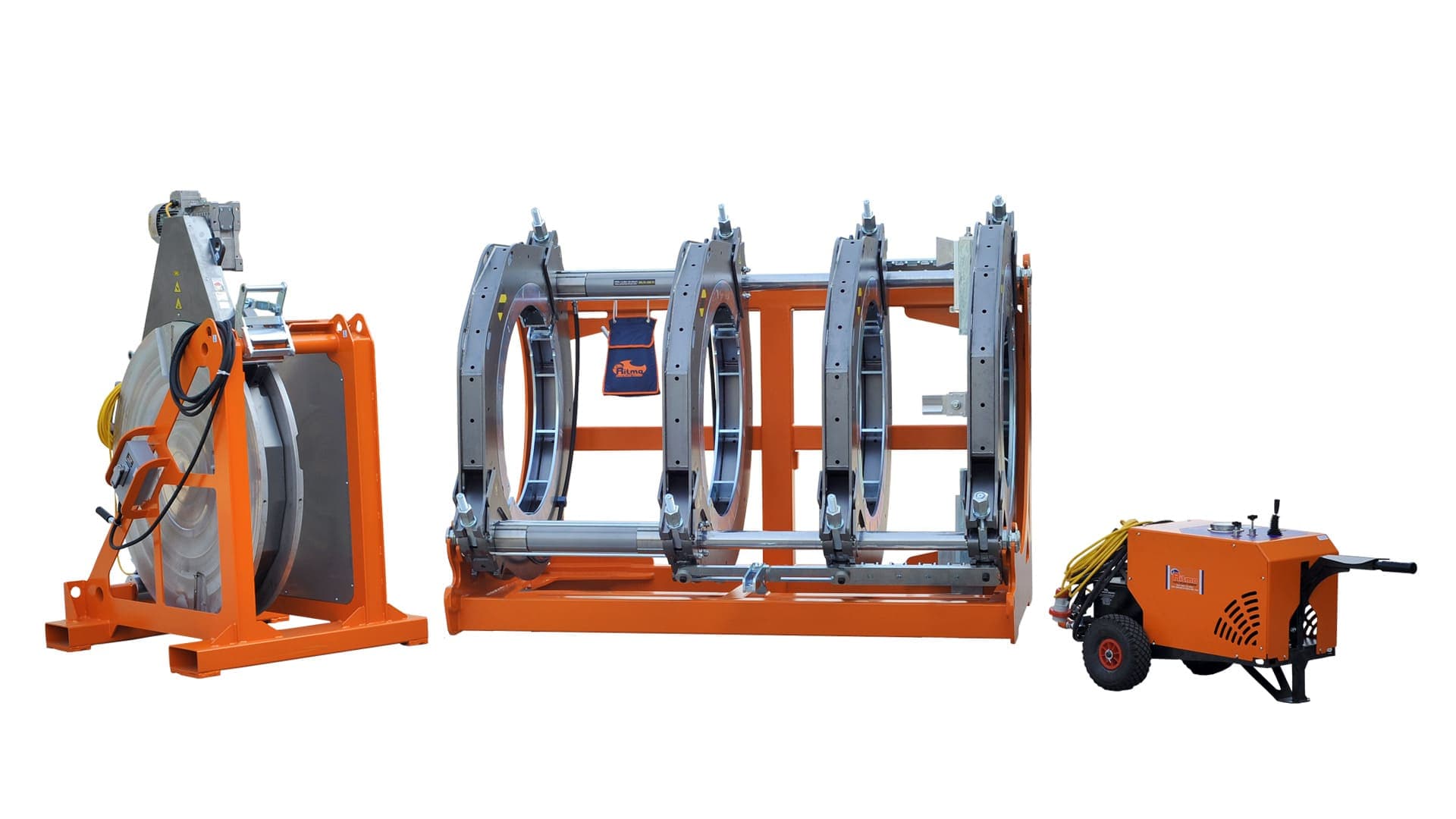

Delta 48″ is a 2,500 kg machine covering 28-48″ IPS and 30-42″ DIPS. It is the choice for projects built to North American pipe standards and for export work specified in IPS/DIPS.
The Delta line is heavy-duty butt fusion for large-diameter infrastructure. Clamps with hydraulic opening, closing and clamping, a hydraulic milling cutter and an on-board heating plate remove the manual handling that large diameters otherwise demand. Welding parameters are recorded with Inspector 2.0 (on request) and can be reported through the Orangecloud platform.
Technical specifications
| Working range | 28” IPS ÷ 48” IPS; 30" DIPS ÷ 42" DIPS |
|---|---|
| Master Ø 1000 mm | Yes |
| Power supply | 400 V 3-Phase 50/60 Hz |
| Total absorbed power | 28200 W |
| Suggested power generator | 50 kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 45’ minutes |
| Dimensions Body machine (W x D x H) | 2465 x 1870 x 1900 mm (97 x 73.6 x 74.8 in) |
| Dimensions gearcase (W x D x H) | 1369 x 600 x 713 mm (54 x 23.62 x 28 in) |
| Weight Body machine | 2500 Kg (5511.6 Ib) |
| Weight standard composition | 3496 Kg (7707.4 Ib) |
