Ritmo Delta 500 Butt Fusion Machine Ø 200-500 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

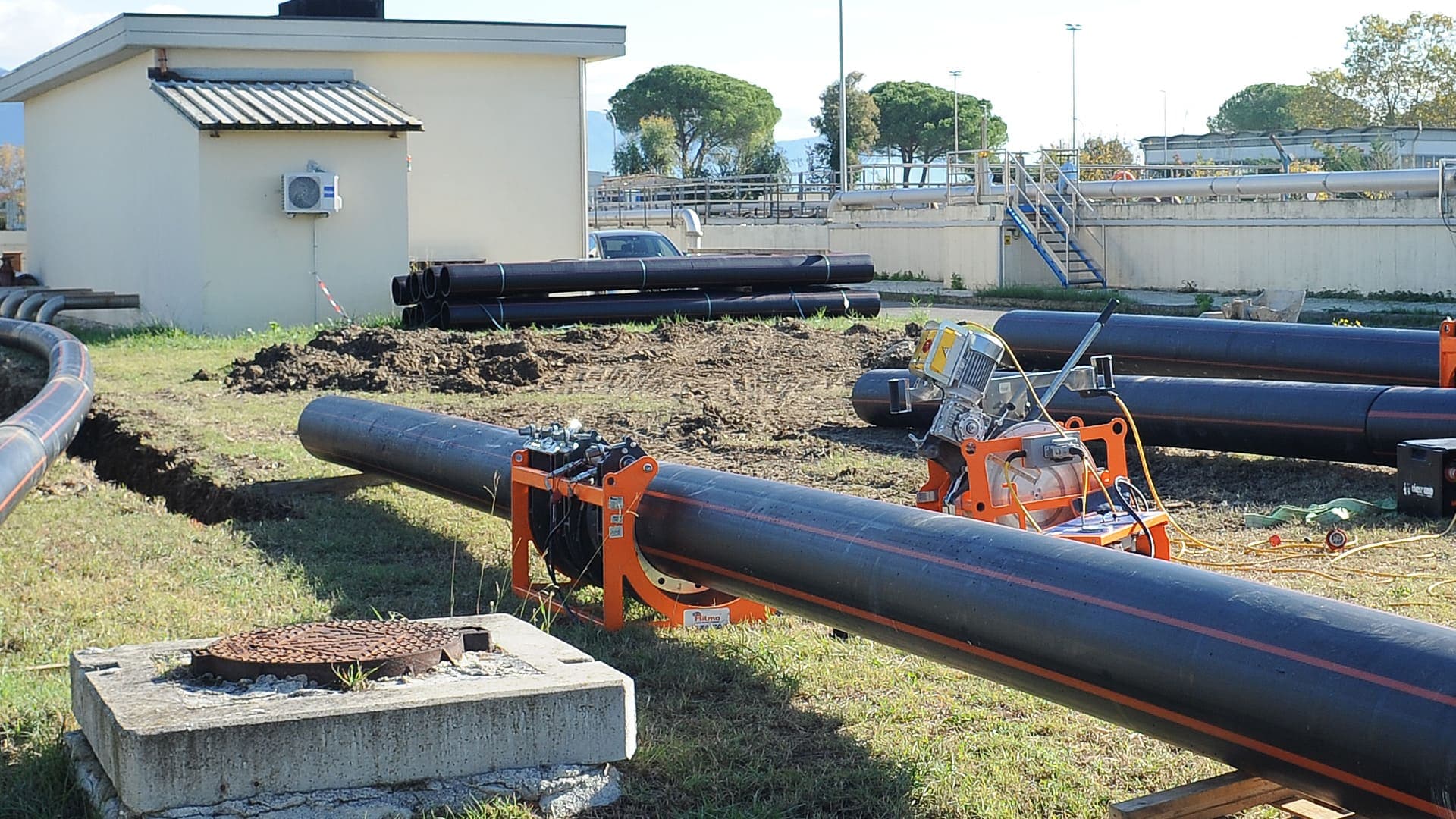

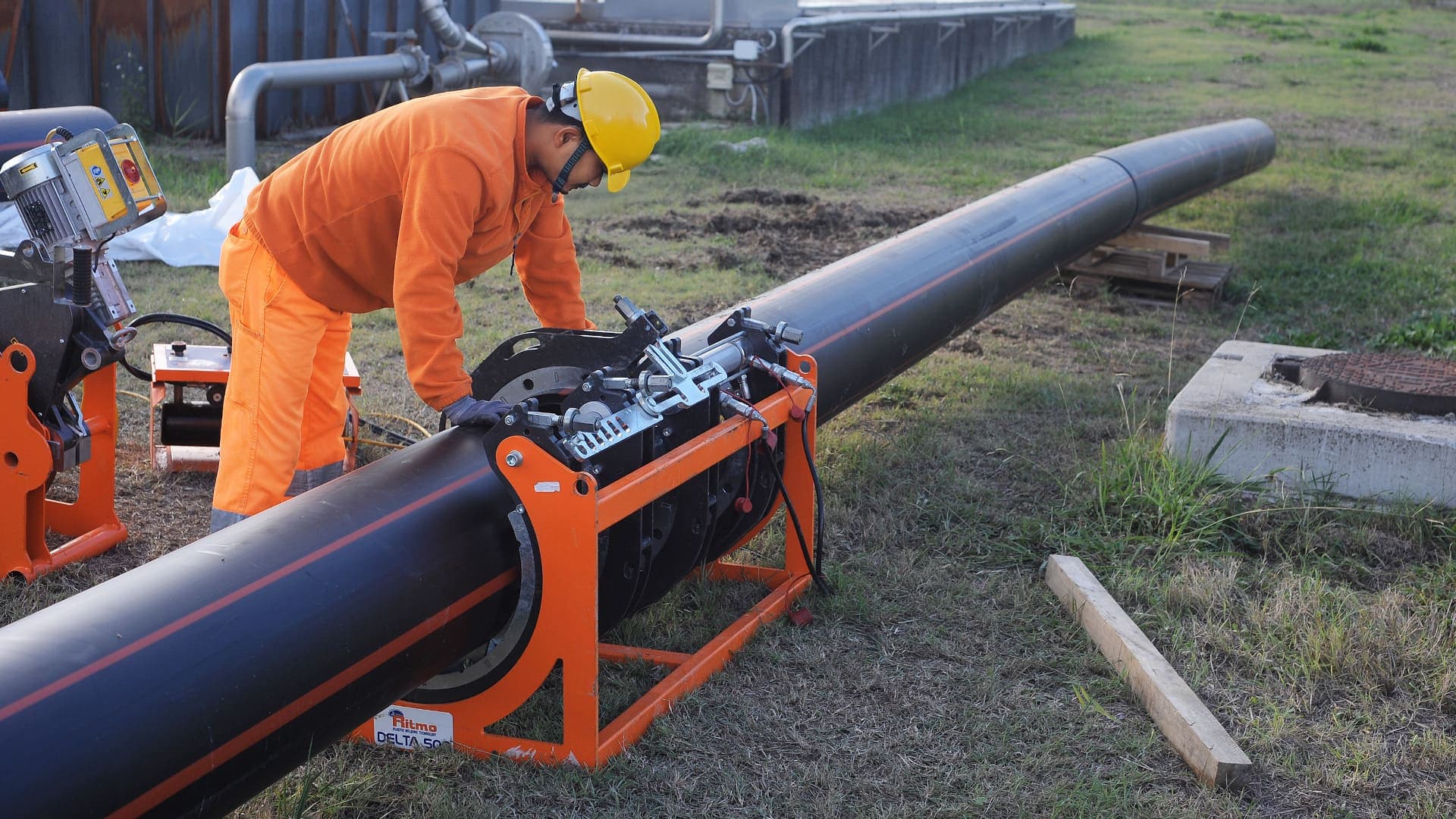

Delta 500 is a 230 kg heavy-duty machine for Ø 200-500 mm, used on water and sewage trunk mains, marine outfalls and industrial process pipework.

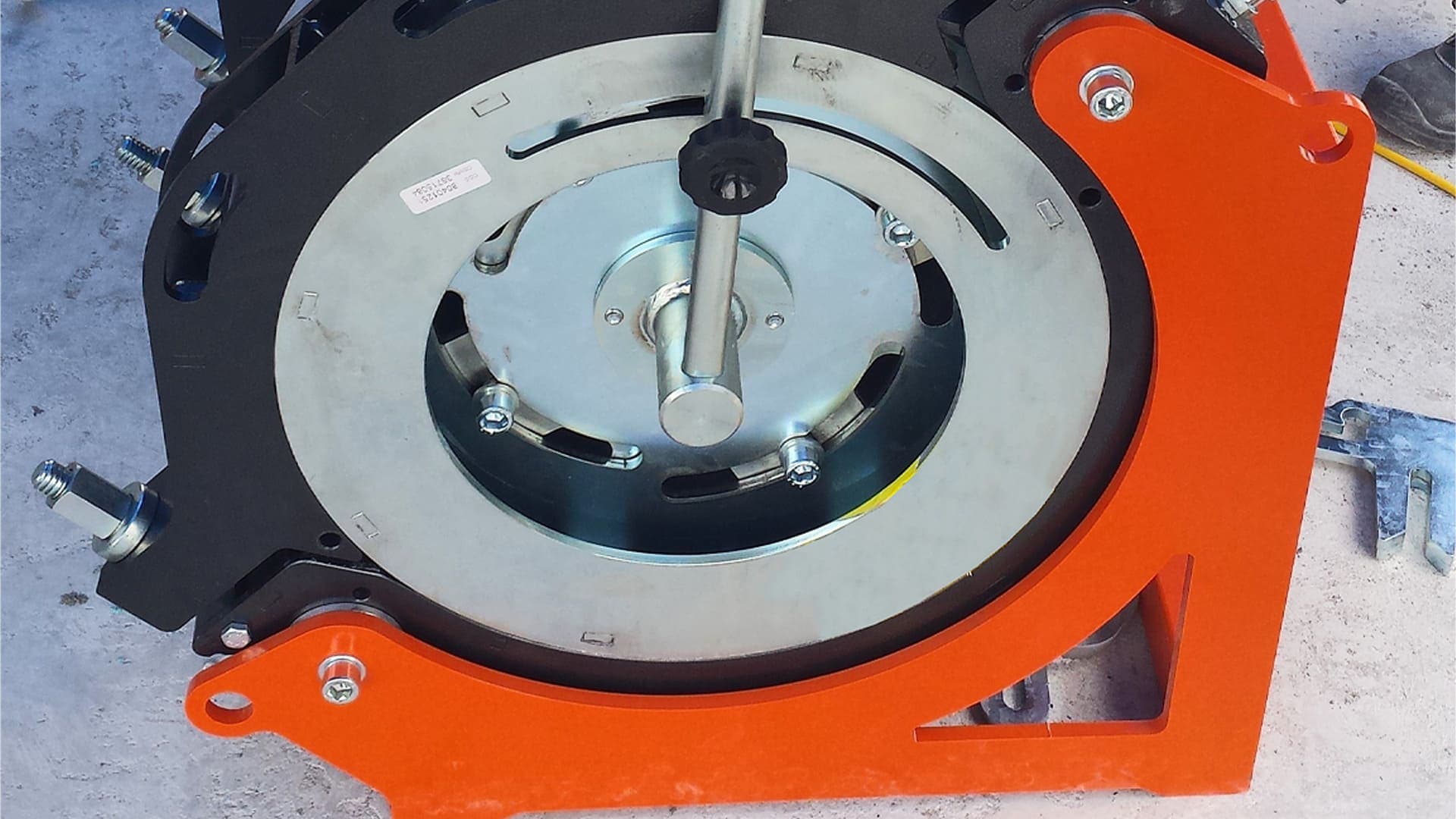

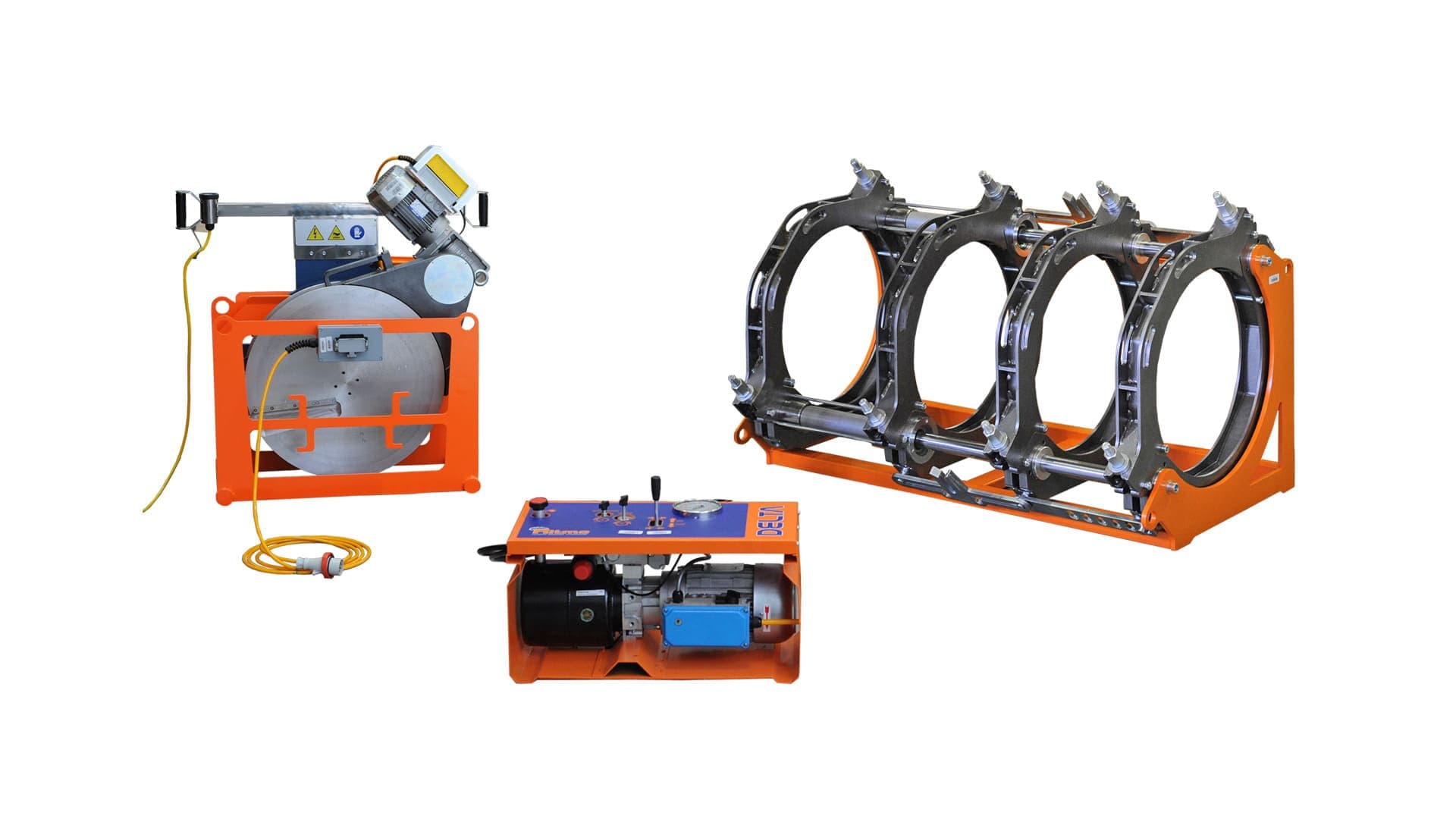

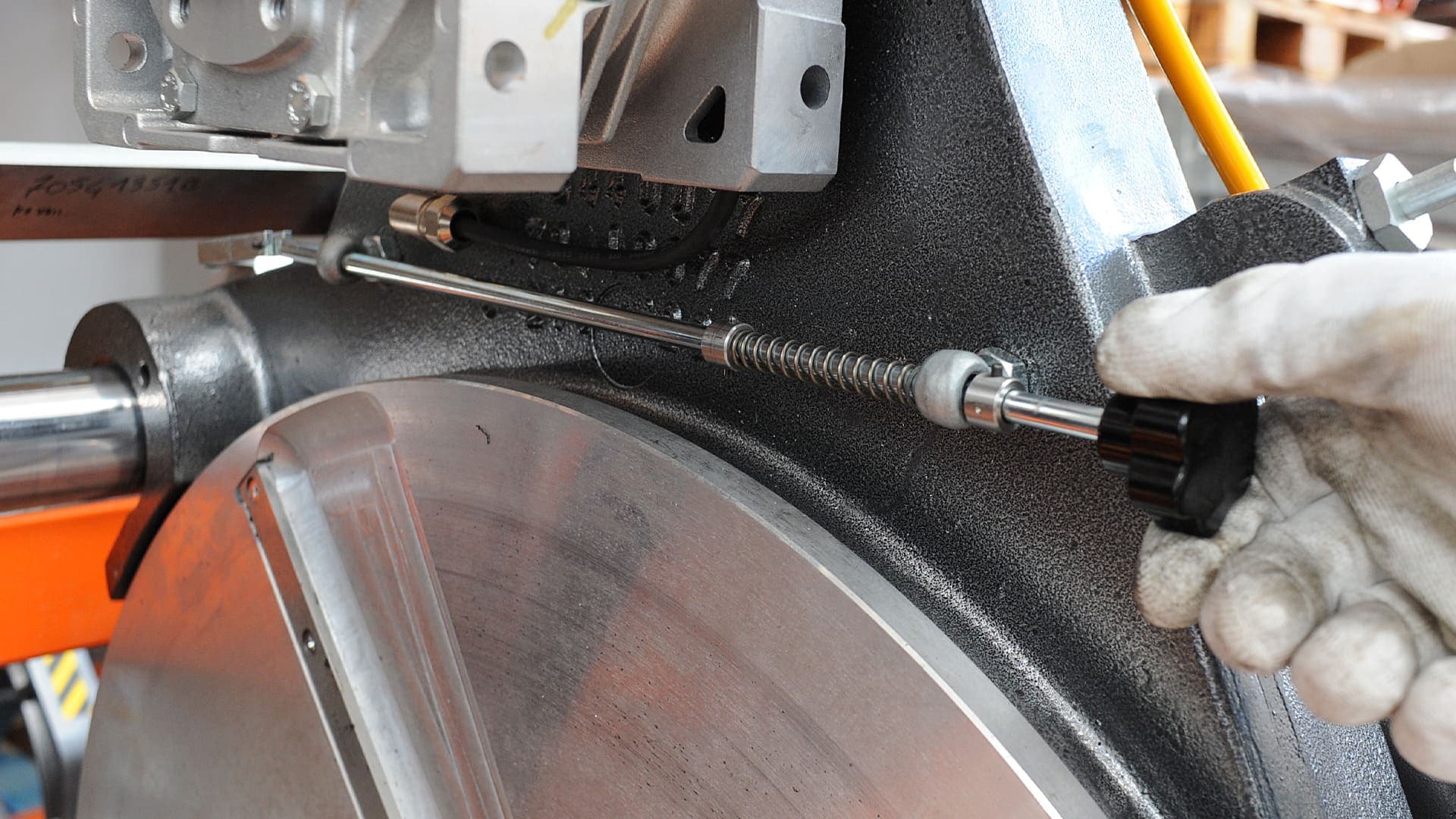

The Delta line is heavy-duty butt fusion for large-diameter infrastructure. Clamps with hydraulic opening, closing and clamping, a hydraulic milling cutter and an on-board heating plate remove the manual handling that large diameters otherwise demand. Welding parameters are recorded with Inspector 2.0 (on request) and can be reported through the Orangecloud platform.
Technical specifications
| Working range | 200 ÷ 500 mm; 8” IPS ÷ 18” IPS; 8’’ DIPS ÷ 18” DIPS |
|---|---|
| Power supply | 230 V Single Phase 50/60 Hz; 400 V 3-Phase 50/60 Hz |
| Total absorbed power | 7950 W (230 V); 7200 W (400 V) |
| Suggested power generator | 12 kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 20’ minutes |
| Dimensions Body machine (W x D x H) | 1265 x 790 x 780 mm (50 x 31 x 31 in) |
| Dimensions gearcase (W x D x H) | 615 mm x 298 mm x 474 mm (24.21 x 11.73 x 18.66 in) |
| Weight Body machine | 230 Kg (507 Ib) |
| Weight standard composition | 418 Kg (921.53 Ib) |
