Ritmo Delta 500 Trailer Butt Fusion Machine Ø 200-500 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details
Delta 500 Trailer is a 580 kg trailer machine for Ø 200-500 mm. At these diameters towing the machine to each joint instead of craning it there is what lifts site productivity.

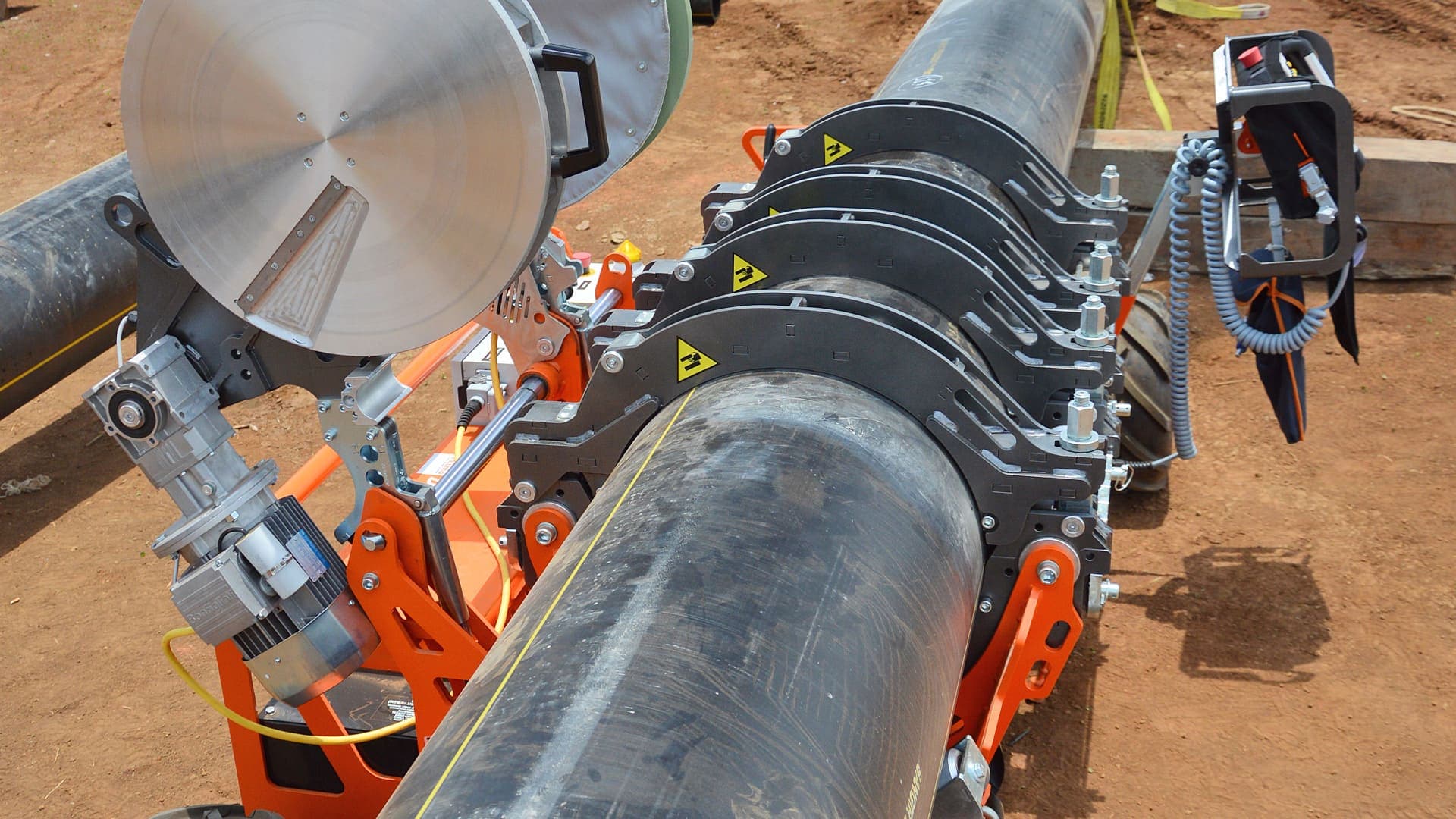

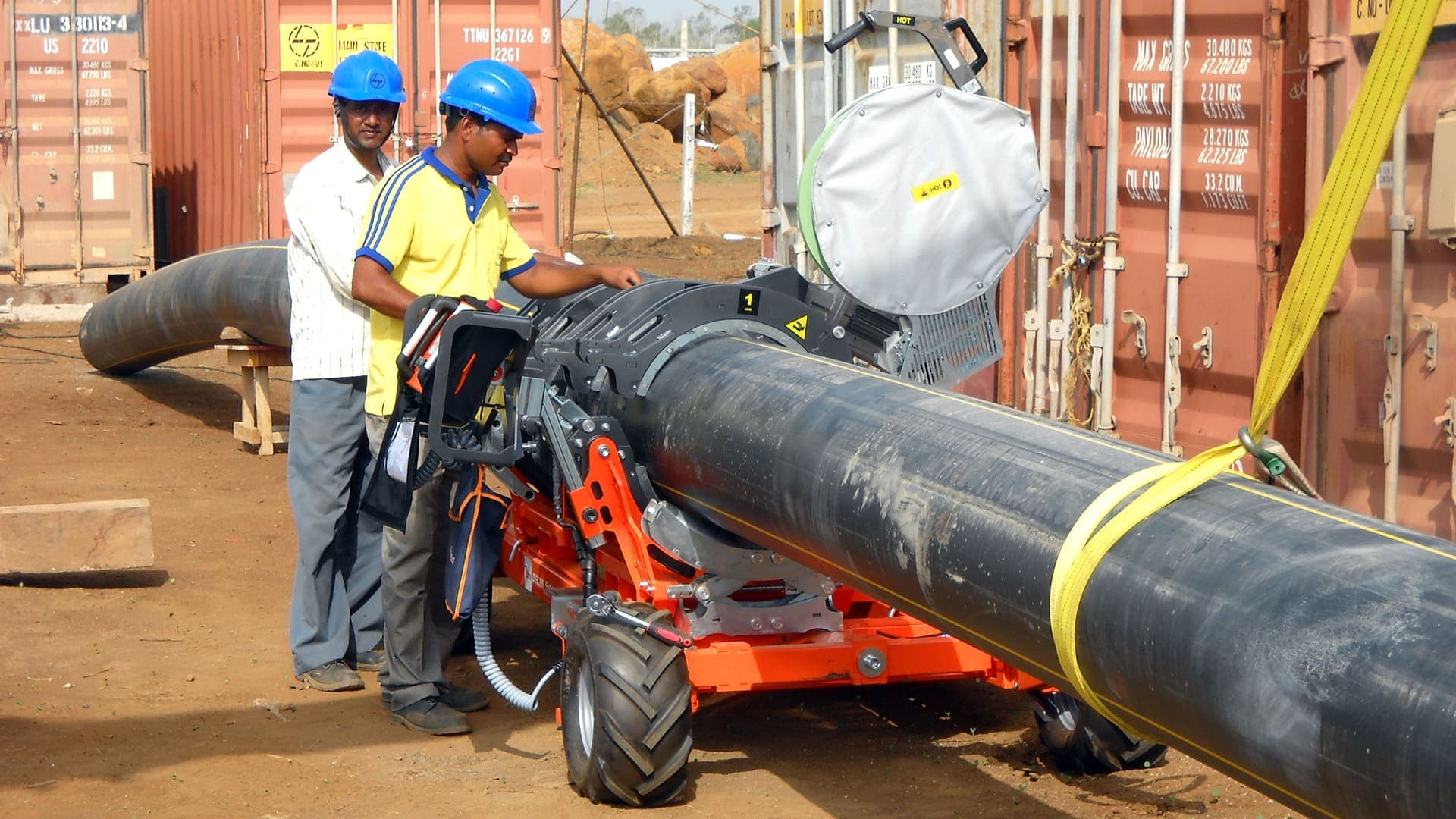

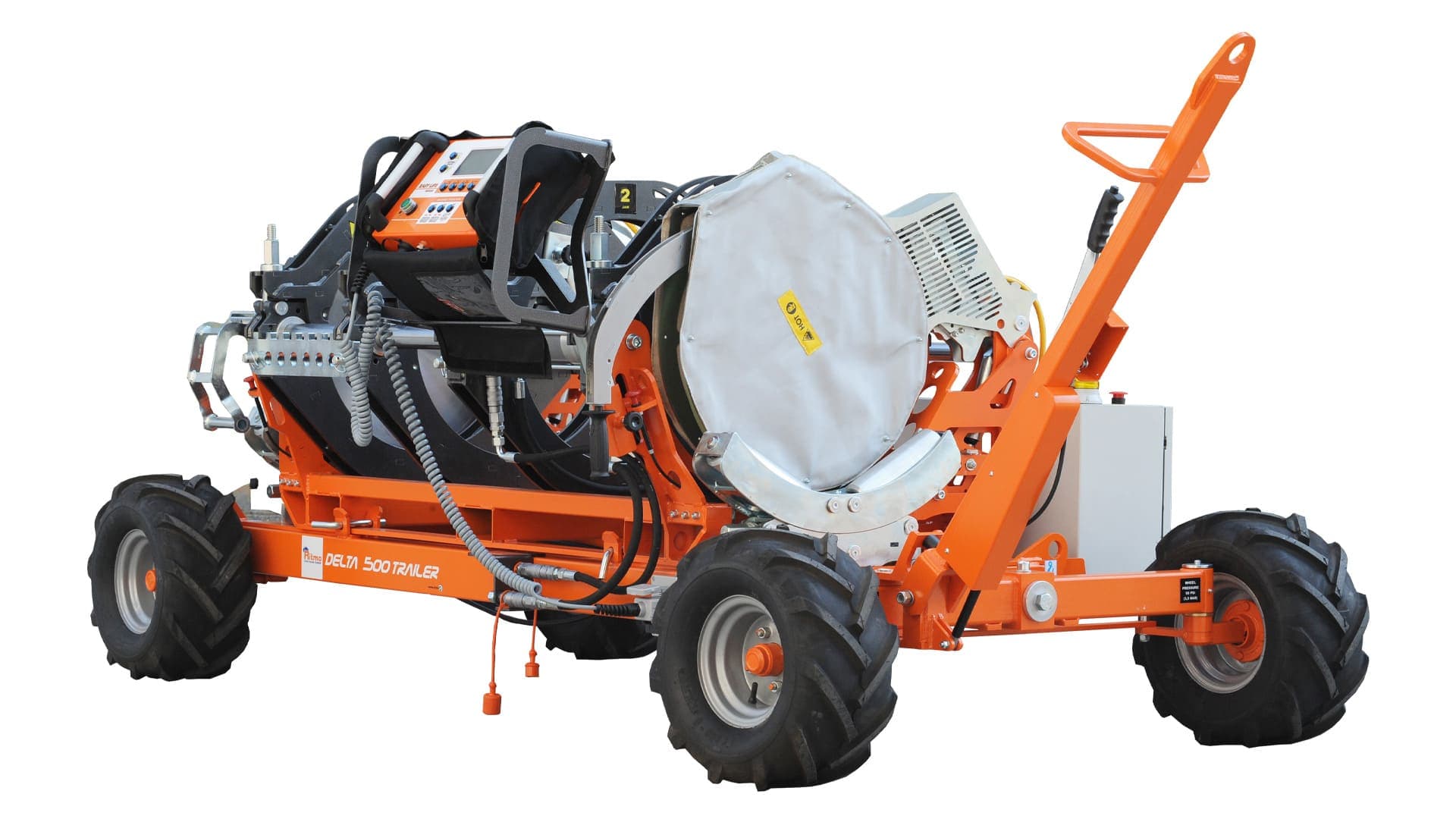

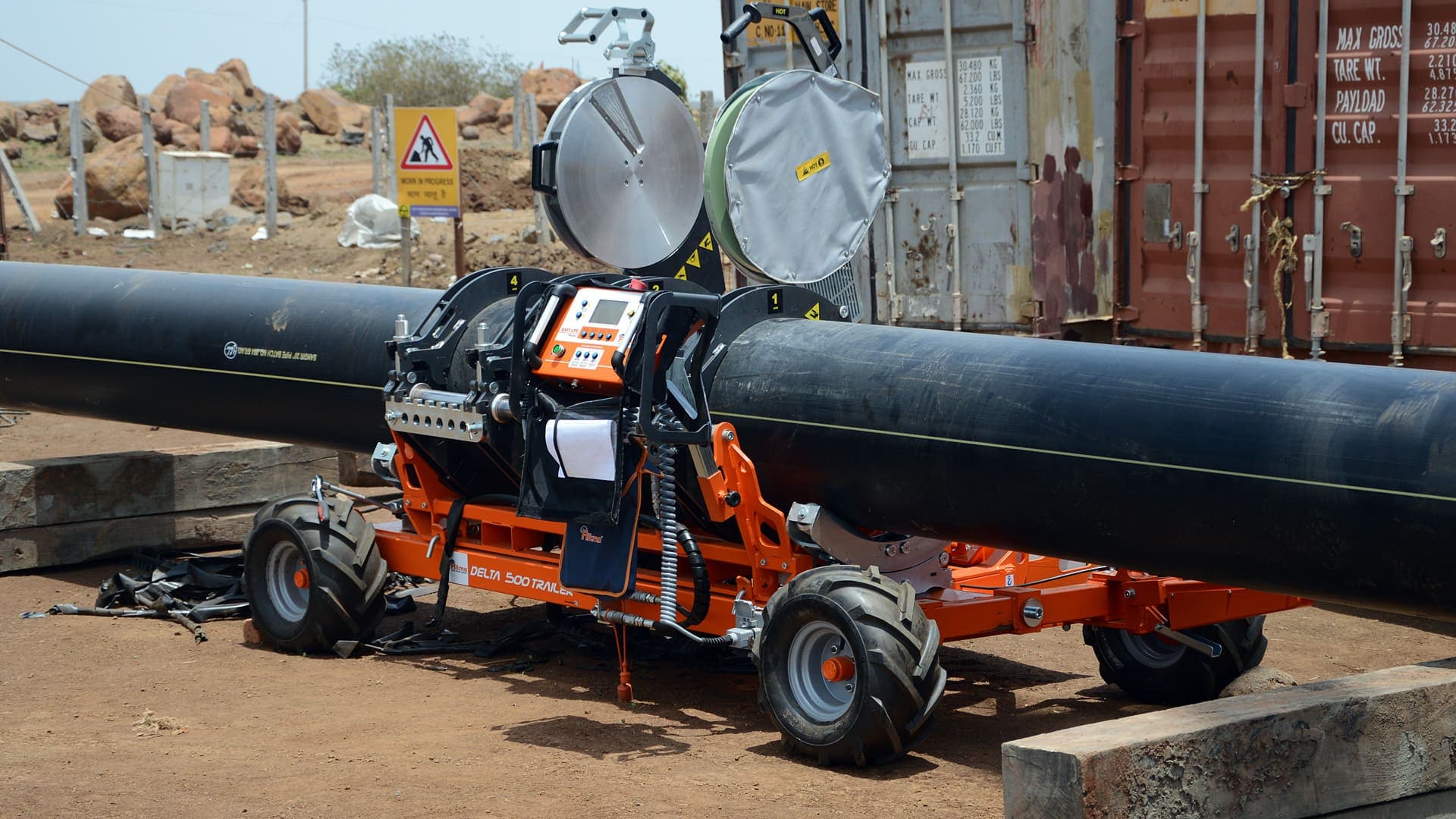

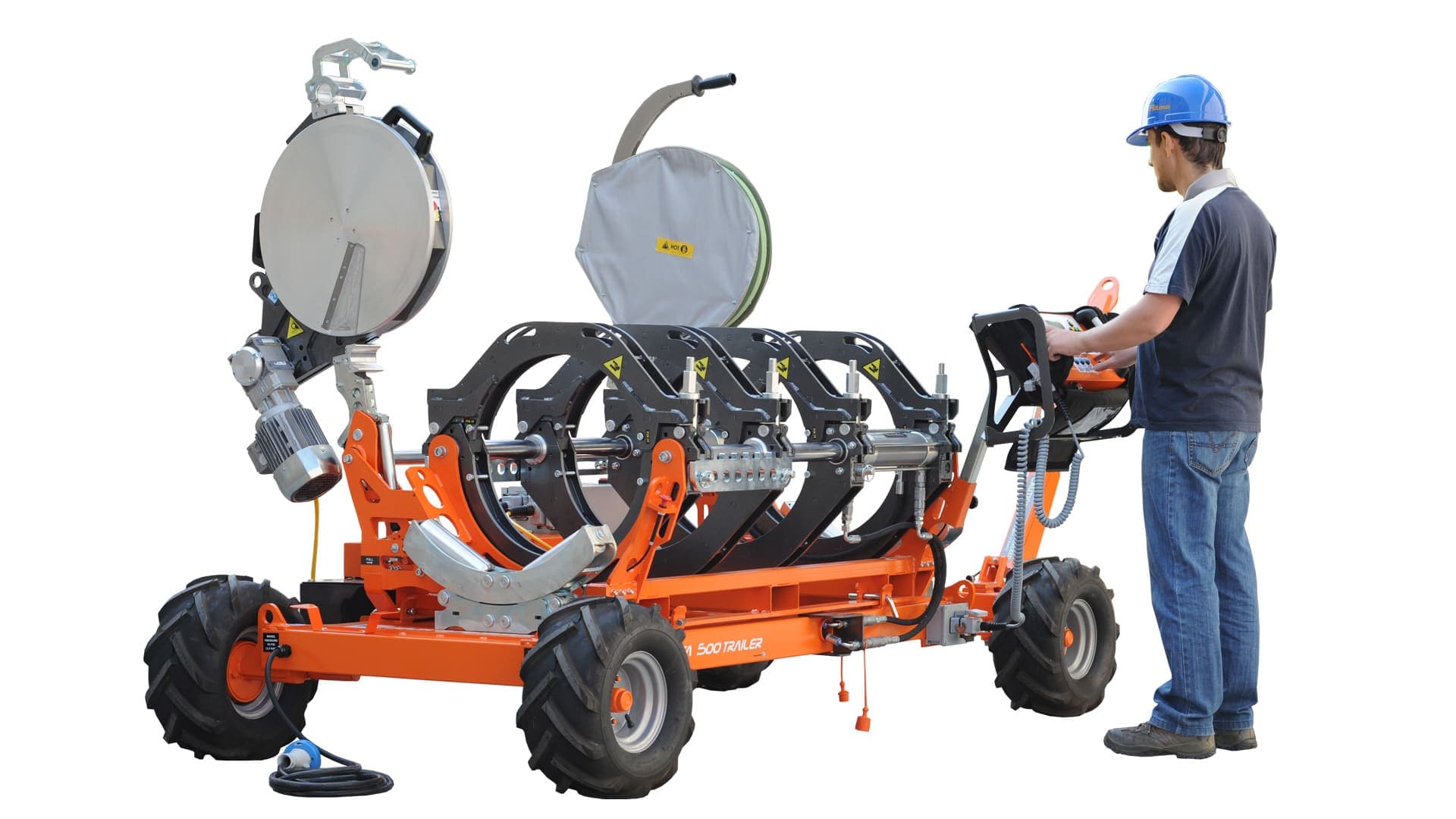

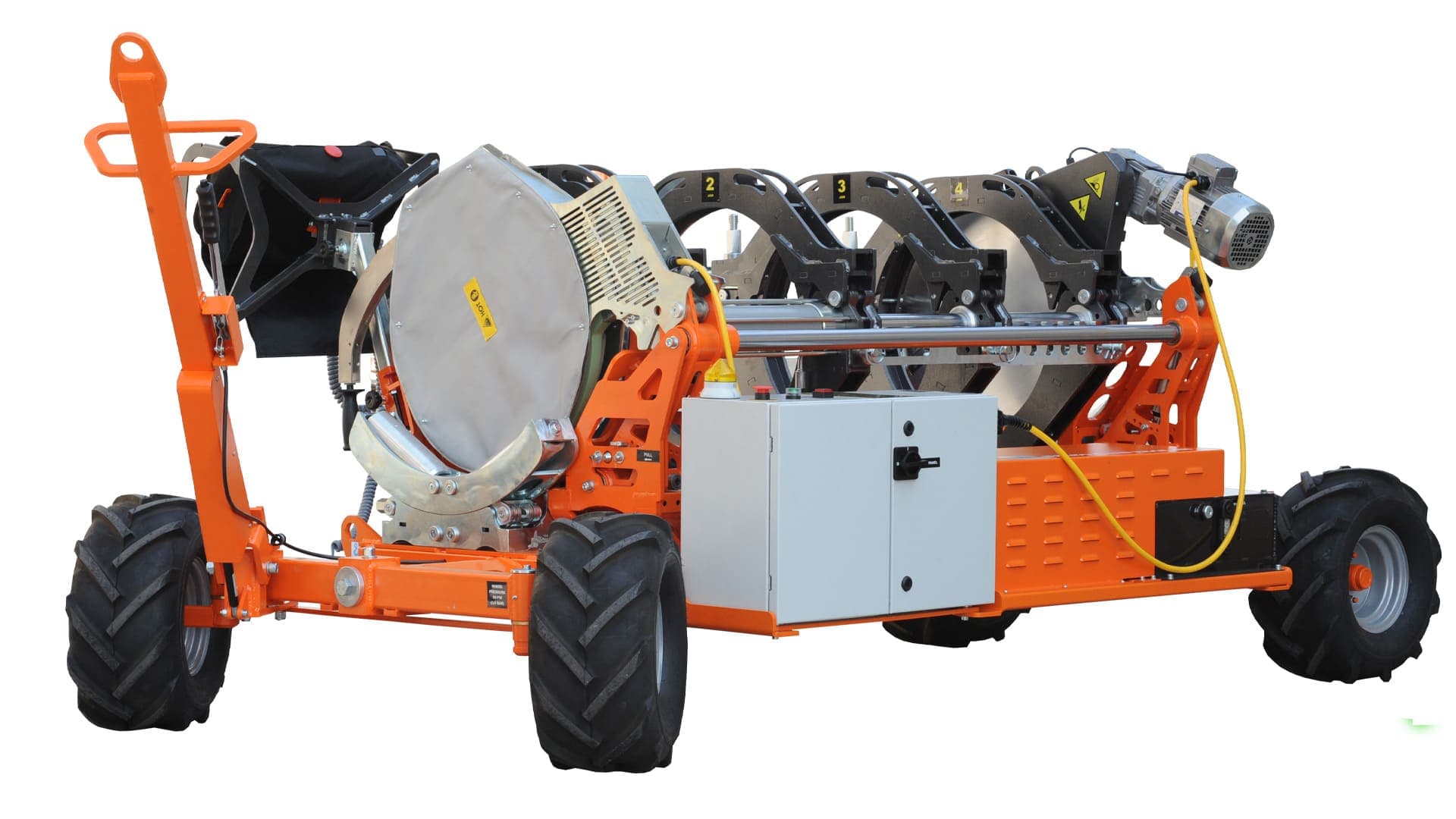

On the Trailer line the machine sits on a trailer with steering wheels, carrying every functional element on board so one person can position it around the site. The Easy Life automated welding system, a removable control panel with GPS, an on-board electric milling cutter and the tool-free SmartLock reduction system are standard.
Technical specifications
| Working range | 200 ÷ 500 mm; 6” IPS ÷ 18” IPS; 6” DIPS ÷ 18” DIPS |
|---|---|
| International standards | ISO 21307 HIGH PRESSURE, ASTM F2623 |
| Traceability GPS | Yes |
| Memory | 4000 cycles |
| Memory favorite welds | 20 cycles |
| Power supply | 230 V Single-phase - 50/60 Hz; 230 V Three-phase - 50/60 Hz; 400 V Three-phase - 50/60 Hz |
| Total absorbed power | 8000 W (230 V single-phase); 7600 W (230 V 3-phases); 7600 W (400 W) |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Pressure | up to 150 bar |
| Dimensions Body machine (W x D x H) | 1822 x 1152 x 814 mm 71.8”x45.4”x 32” |
| Weight Body machine | 580 Kg (1279 lb) |
| Weight standard composition | 850 Kg (1874 lb) |
