View category: Butt Fusion Machines
Ritmo Delta 630 Easy Life Butt Fusion Machine Ø 280-630 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

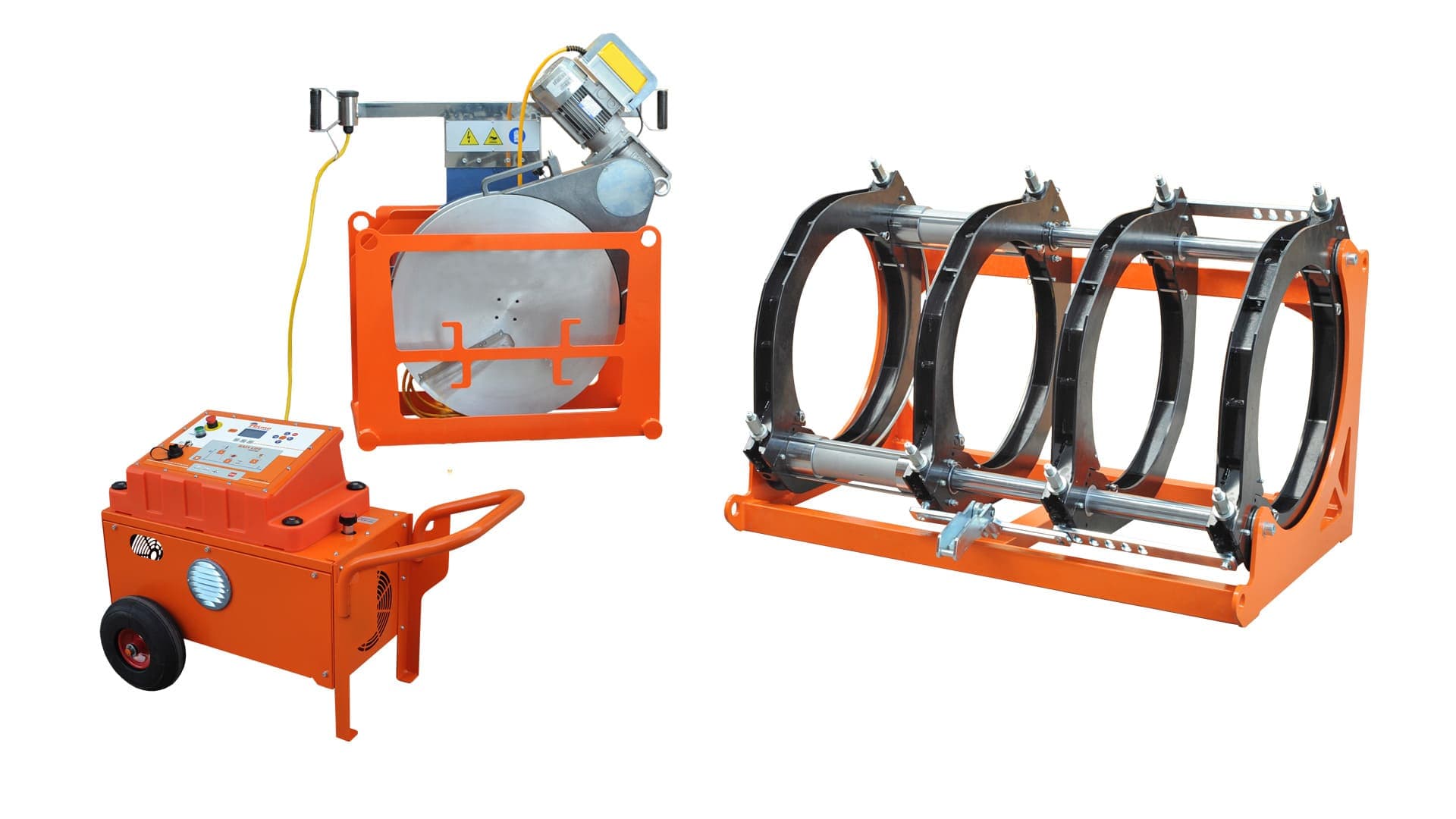

Delta 630 Easy Life is a 415 kg machine covering Ø 280-630 mm with the Easy Life system. Hydraulic clamp and milling movements together with the automated cycle are what make large-diameter joints repeatable.

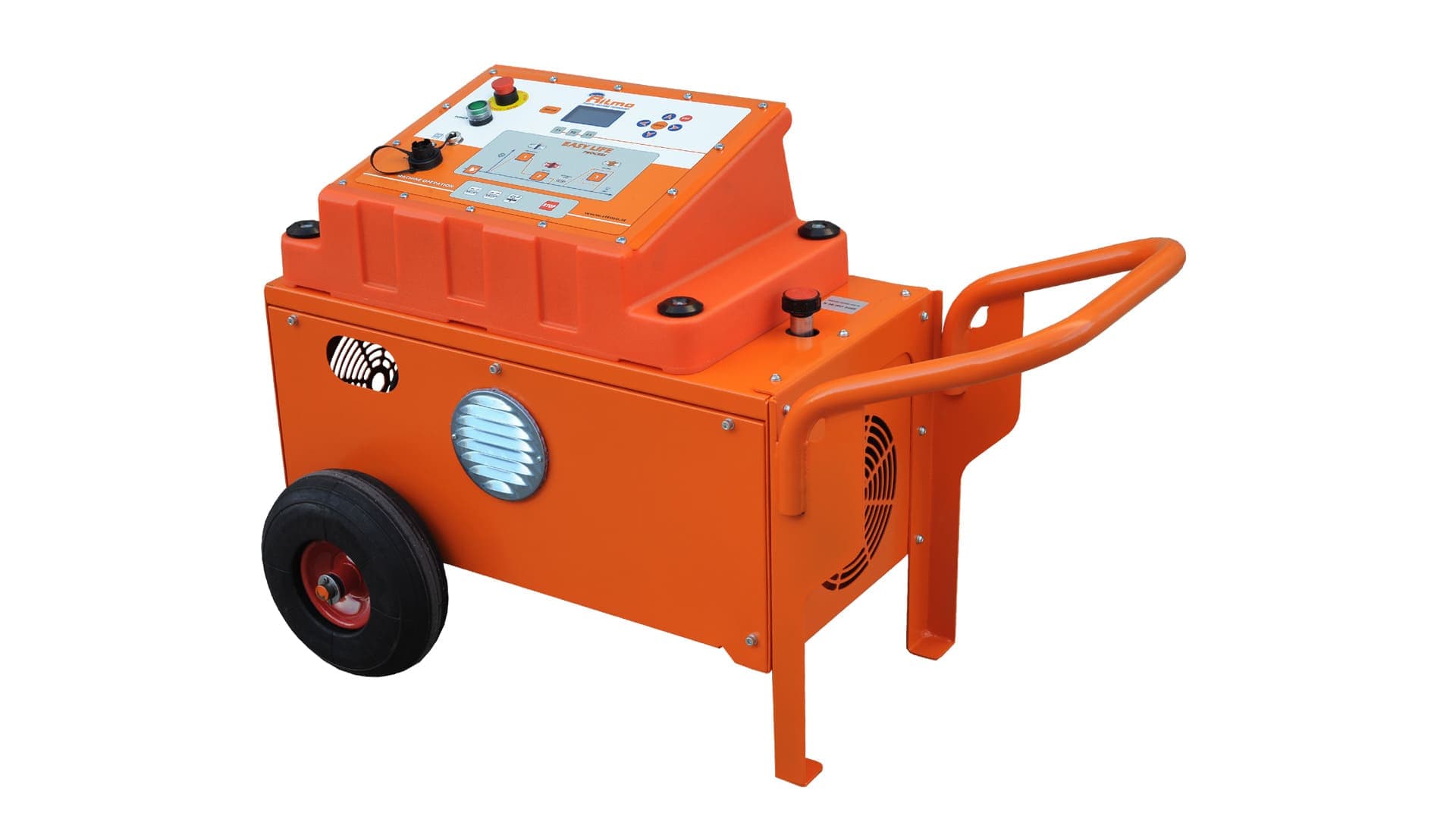

The Easy Life system standardises the welding cycle by taking it out of the operator's hands: the operator enters the parameters and the machine manages heating, changeover and cooling pressure automatically. The removable control panel carries a GPS device, so job site location and welding data are recorded. On sites with several operators, that is what stops joint quality varying from person to person.
Technical specifications
| Working range | 280 ÷ 630 mm; 10” IPS ÷ 24” IPS; 10’’ DIPS ÷ 20” DIPS |
|---|---|
| Power supply | 230 V 3-Phase 50/60 Hz; 400 V 3-Phase 50/60 Hz |
| Total absorbed power | 1500 W |
| Suggested power generator | 18 kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 20’ minutes |
| Memory | 4000 cycles |
| Pre-set welding cycles | 56 cycles |
| Wi-Fi Ready | App "SET & GO PRO" |
| Dimensions Body machine (W x D x H) | 1550 x 1010 x 1000 mm (61 x 40 x 40 in) |
| Dimensions gearcase (W x D x H) | 615 x 298 x 474 mm (24.21 x 11.73 x 18.66 in) |
| Weight Body machine | 415 Kg (914.9 Ib) |
| Weight standard composition | 700 Kg (1543.44 Ib) |
