Ritmo Delta 800 Butt Fusion Machine Ø 500-800 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

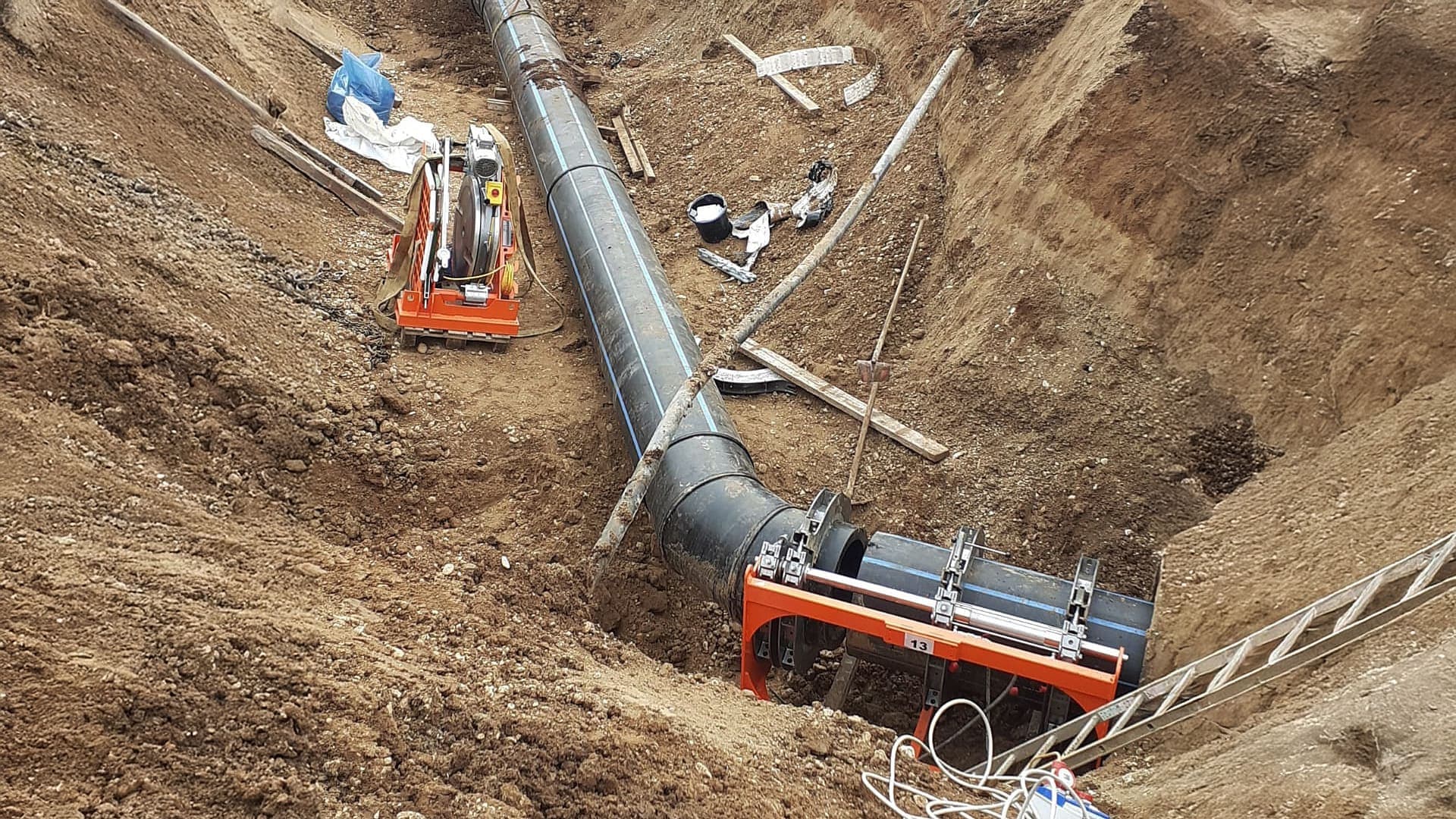

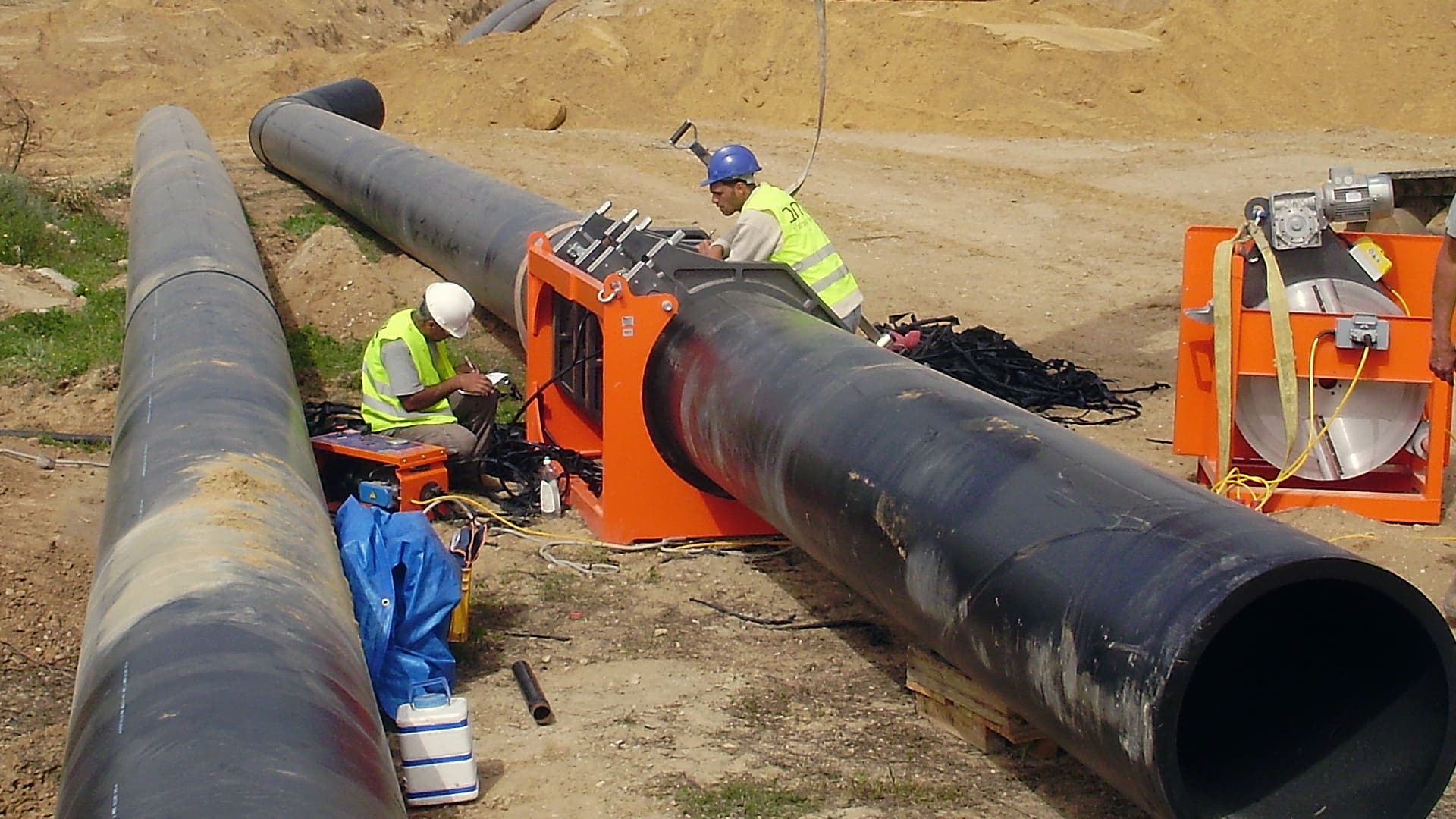

Delta 800 is an 821 kg machine for Ø 500-800 mm, used on large transmission mains, pipe strings prepared for horizontal directional drilling and industrial intake lines.

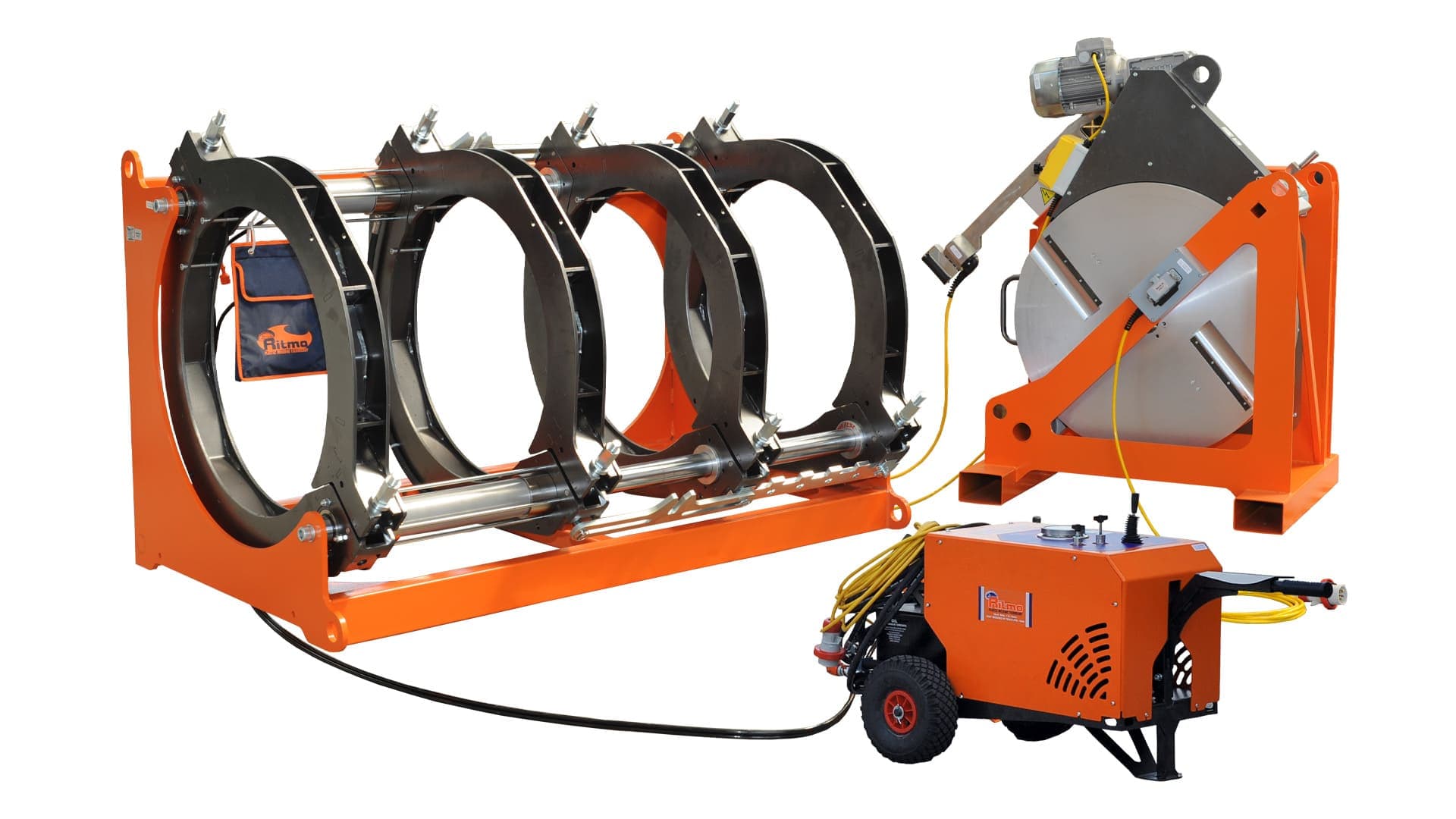

The Delta line is heavy-duty butt fusion for large-diameter infrastructure. Clamps with hydraulic opening, closing and clamping, a hydraulic milling cutter and an on-board heating plate remove the manual handling that large diameters otherwise demand. Welding parameters are recorded with Inspector 2.0 (on request) and can be reported through the Orangecloud platform.
Technical specifications
| Working range | 500 ÷ 800 mm; 20” IPS ÷ 30” IPS; 18’’ DIPS ÷ 24” DIPS |
|---|---|
| Power supply | 230 V 3-Phase 50/60 Hz; 400 V 3-Phase 50/60 Hz |
| Total absorbed power | 16500 W -230 V; 17000 W - 400 V |
| Suggested power generator | 30 kVA |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -10° ÷ 40° C (14° ÷ 104° F) |
| Time to reach welding temperature | ~< 20’ minutes |
| Dimensions Body machine (W x D x H) | 2100 x 1350 x 1300 mm (82.7 x 53 x 51 in) |

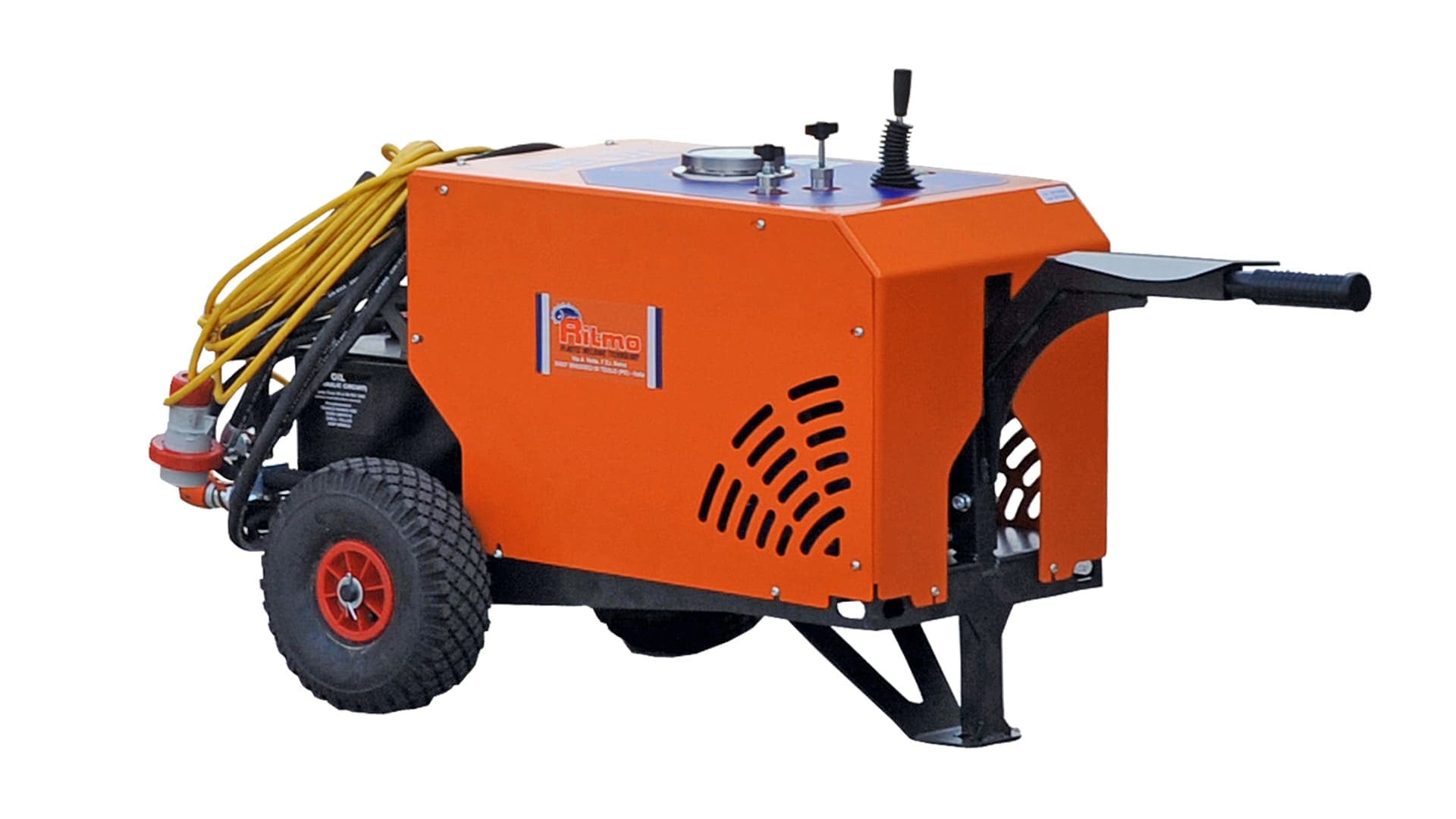

| Dimensions gearcase (W x D x H) | 615 mm x 298 mm x 474 mm (24.21 x 11.73 x 18.66 in) |
| Weight Body machine | 821 Kg (1810 Ib) |
| Weight standard composition | 1260 Kg (2777.8 Ib) |
