Ritmo Delta Dragon CNC 315 Butt Fusion Machine Ø 90-315 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

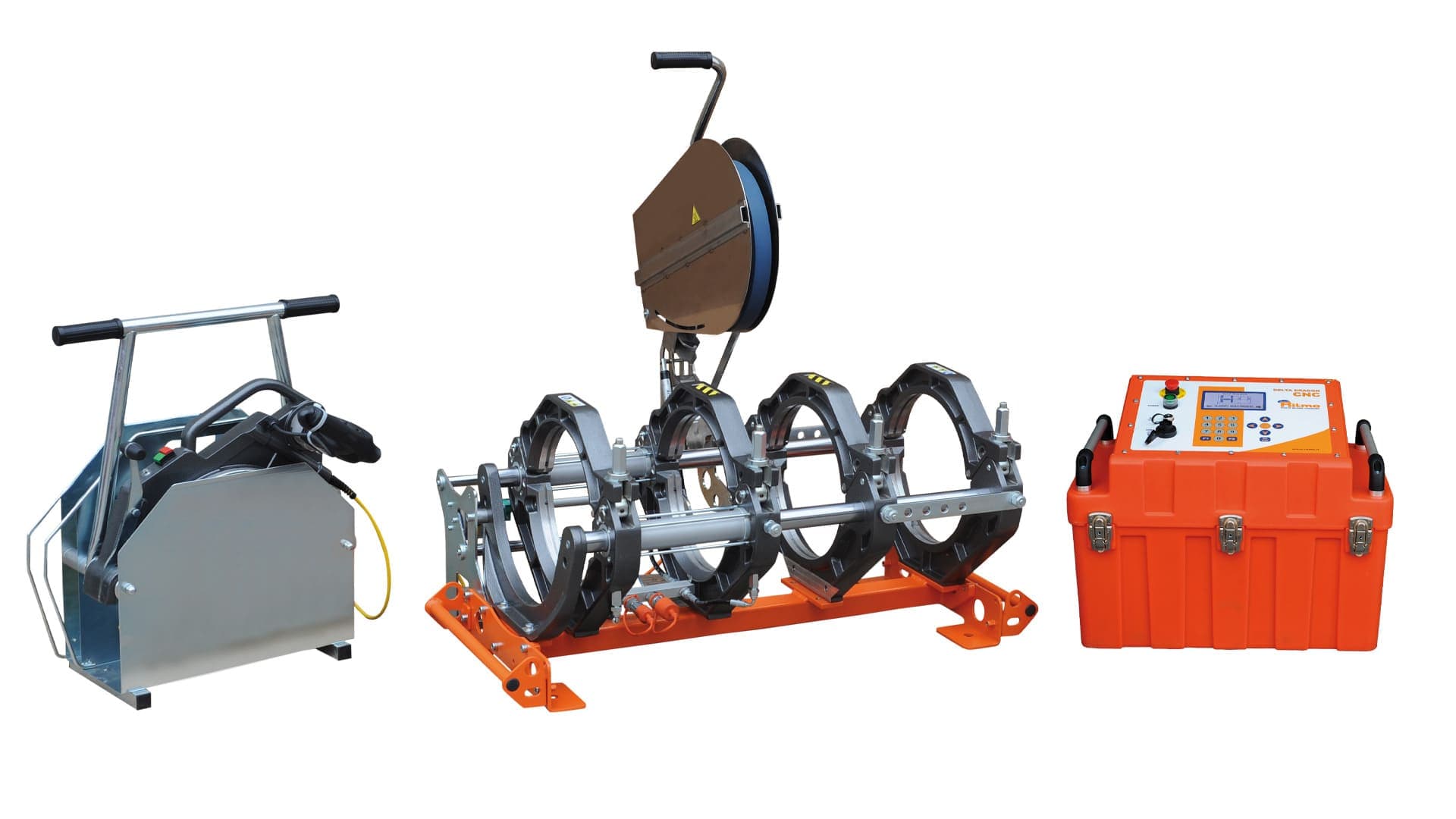

Delta Dragon CNC 315 is a 129 kg CNC-controlled machine for Ø 90-315 mm. In fittings fabrication and batch workshop welding, the recorded cycle data is what makes the result repeatable.

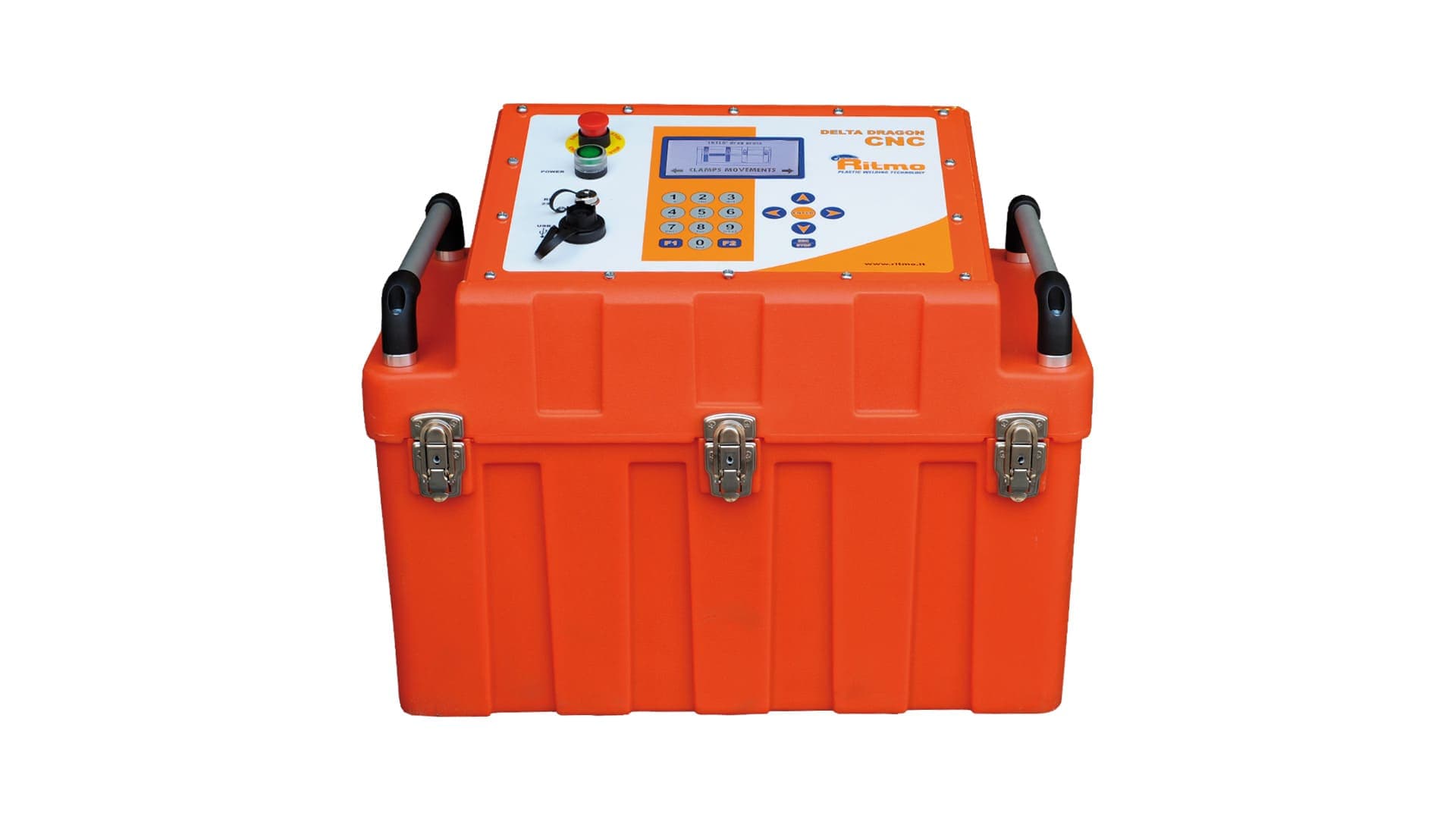

On the Delta Dragon CNC line the cycle is managed entirely by the machine, following the selected welding standard. Internal memory records welding data continuously (4,000 cycles) and GPS fixes the job site; with the optional scanner, operator identity (ISO 12176-3) and pipe identity (ISO 12176-4) are logged too. Semi-automatic (SA) and fully automatic (FA) versions are available, the FA also extracting the heating plate automatically.
Technical specifications
| Working range | 90 ÷ 315 mm; 3” IPS ÷ 10” IPS; 3” DIPS ÷ 10” DIPS |
|---|---|
| Power supply | 110 V - 50/60 HZ 230 V - 50/60 HZ |
| Total absorbed power | 4500W - 110 V; 5550 W - 230 V |
| Suggested power generator | 8 ÷ 8,5kVA |
| Welding cycle | Semi - Automatic/ Fully - Automatic |
| Memory | 4000 cycles |
| Protection degree | IP 54 |
| Dimensions Body machine (W x D x H) | 1150x970x730 mm (45.28 x 38.19 x 28.74 in) |
| Dimensions gearcase (W x D x H) | 580x461x490 mm (22.83 x 18.15 x 19.29 in) |
| Weight Body machine | 129 Kg ( 284,4 lb) |
| Weight standard composition | 205 Kg (451.9 Ib) |
