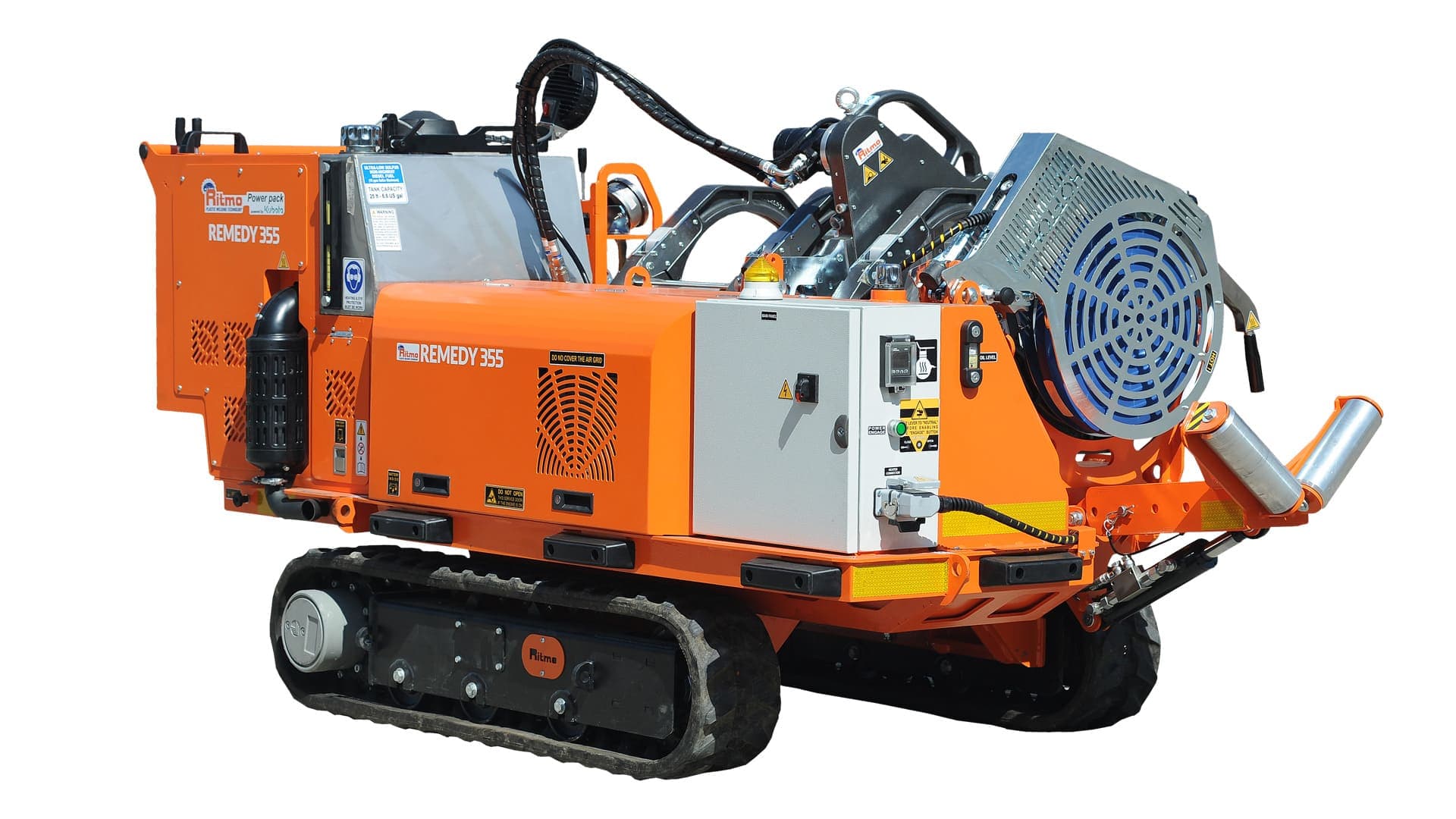

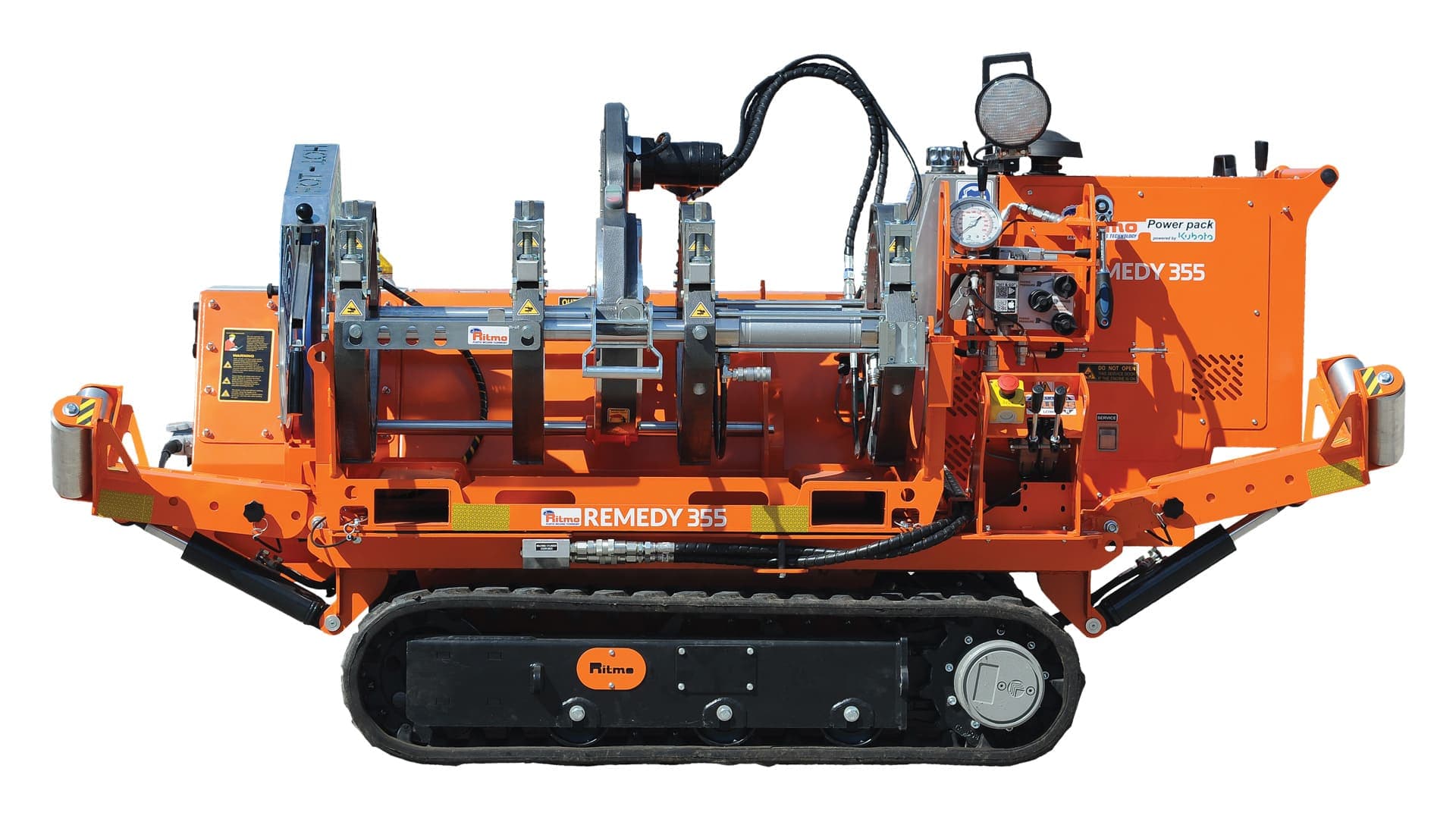

Ritmo Remedy 355 Tracked Butt Fusion Machine Ø 125-355 mm
- Brand
- Ritmo
- Category
- Butt Fusion Machines
Product details

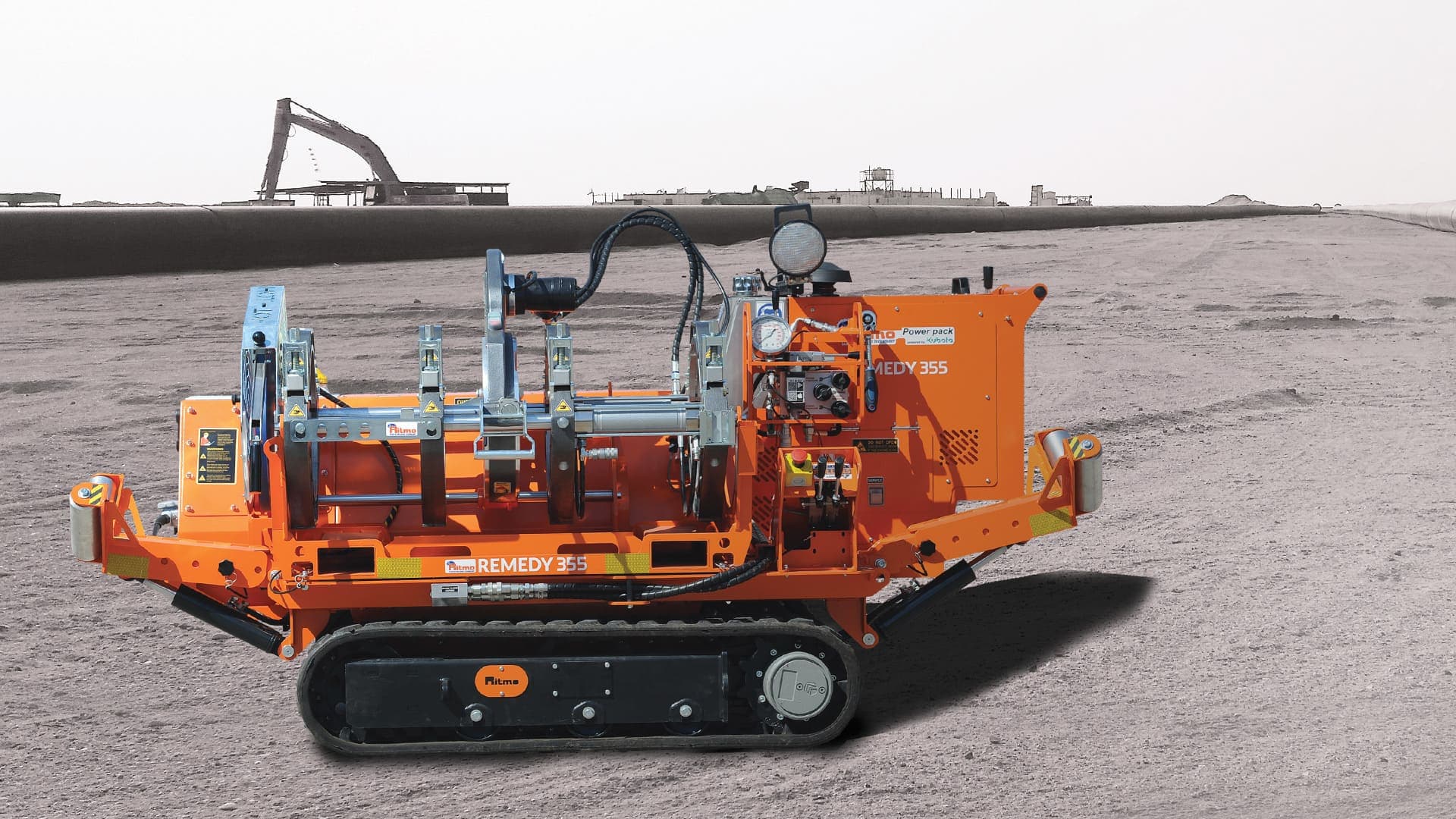

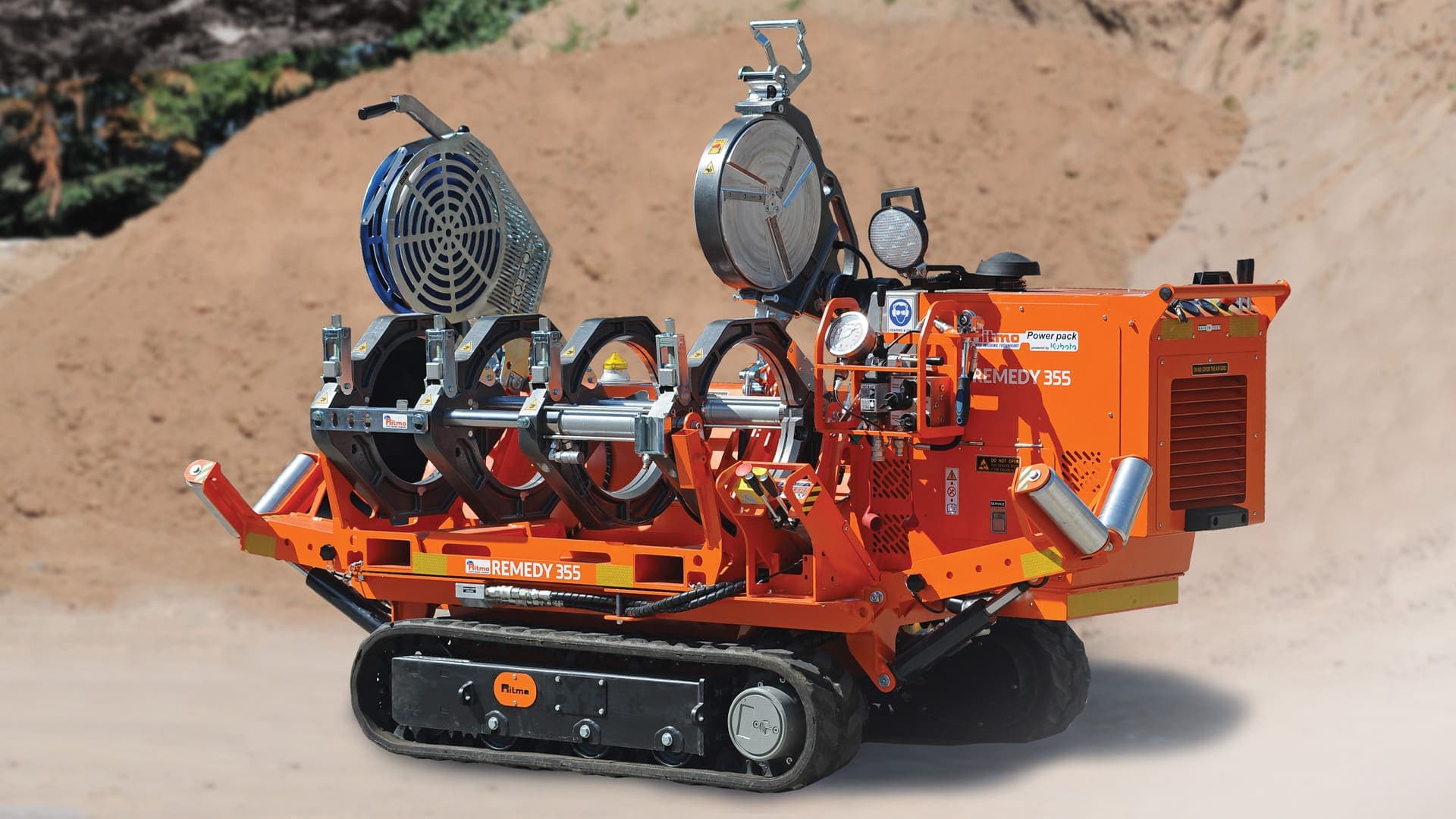

Remedy 355 is a tracked butt fusion machine for Ø 125-355 mm. A 719 cc / 14 kW diesel generator, over 12 hours of running on a full tank and tracks that climb 35% gradients let it work terrain with no power infrastructure.

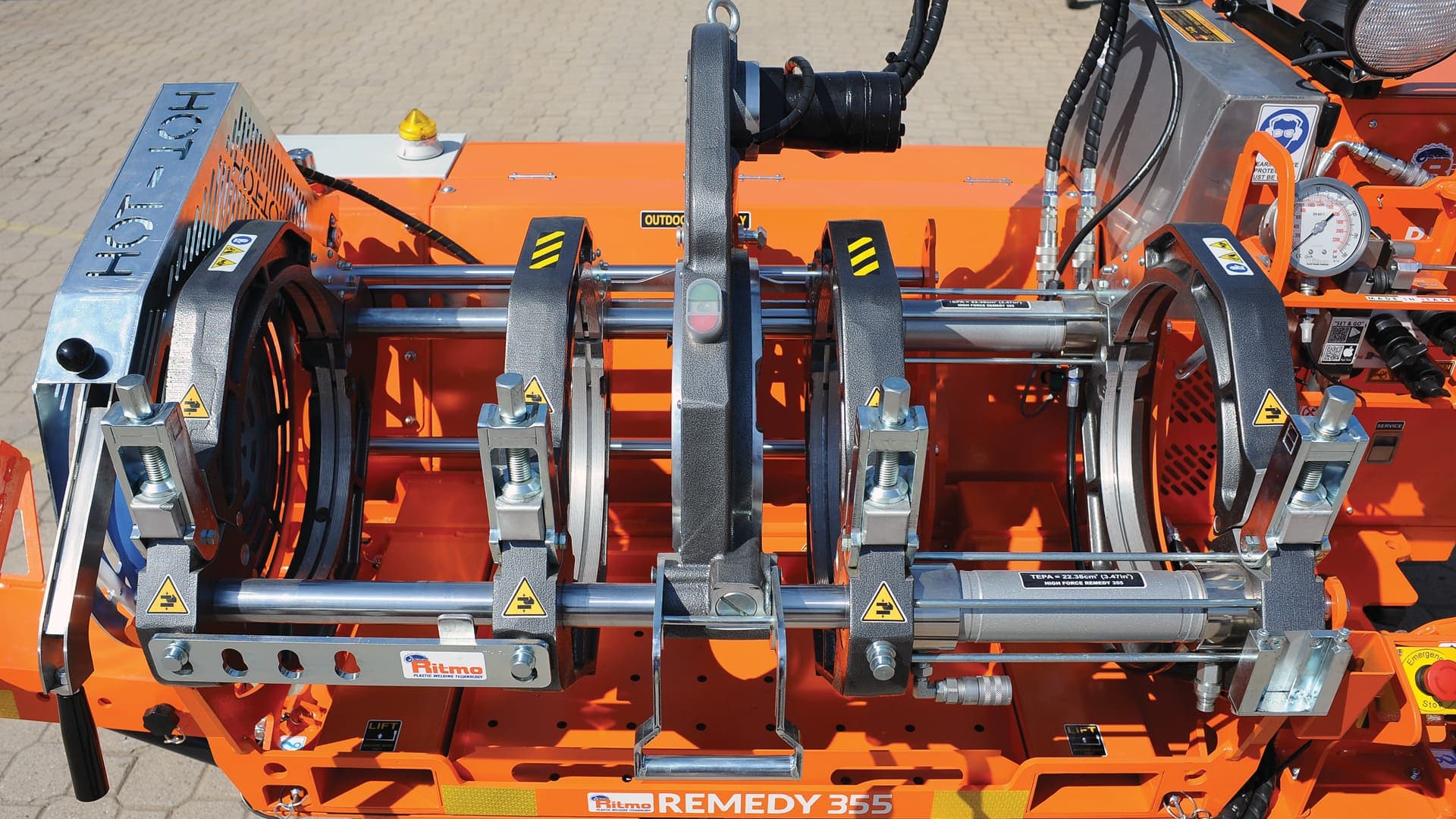

The Remedy and All Terrain line is built to move around the site rather than be carried to it. With its own diesel generator, hydraulic milling cutter, hydraulic roller and the SmartLock clamp system (Ritmo patent) that swaps reductions without tools, it works independently of site power. The welding cycle complies with ISO 21307 High Pressure and ASTM F2620, and joints can be documented with Inspector 2.0.
Technical specifications
| Working range | 125 ÷ 355 mm; 4” IPS ÷ 14” IPS; 4” DIPS ÷ 12” DIPS |
|---|---|
| On board generator | 719 cc - 14 Kw |
| Fuel | Diesel |
| Manual welding cycle | Yes |
| Traceability GPS | With Inspector 2.0 on request |
| Memory | With Inspector 2.0 on request |
| Working temperature | 180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range | -5 ÷ +40°C (23 ÷ 104°F) |
| Pressure | up to 150 bar |
| Fuel tank | 25 L (6.6 gal) |
| Autonomy | 12,5 hours |
| Max operating slope | 35% |
| Dimensions standard composition (W x D x H) | 3007 x 1479 x 1690 mm 9.86 x 4.85 x 5.54 ft |
| Weight standard composition | 1170 Kg (2579 lb) |
