Ritmo Elektra Light Electrofusion Machine Ø 20-160 mm
- Brand
- Ritmo
- Category
- Electrofusion Machines
Product details

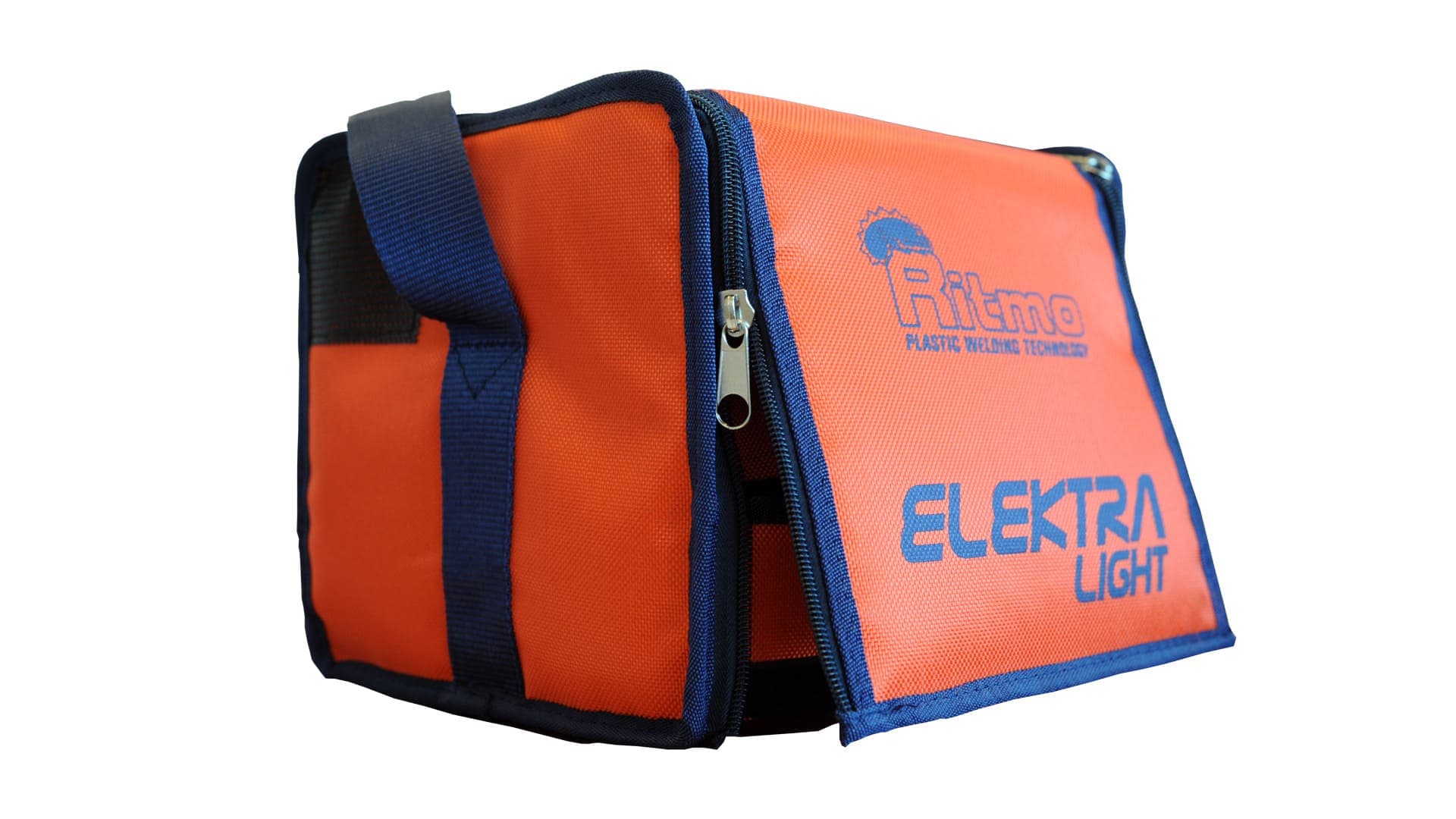

Elektra Light is the light, compact control unit for Ø 20-125/160 mm electrofusion fittings. It travels in a shoulder bag, stores 325 cycles and exports reports over a DB9M-USB adapter — the entry point for plumbing and small-diameter network work.
Elektra control units read the fitting's barcode with a laser scanner and set the welding parameters automatically to ISO 13950. Ambient temperature compensation is automatic, the cycle is monitored continuously and stopped on deviation, and parameters can also be entered by hand. Welding reports export as PDF, CSV and BIN, and the impact-resistant technopolymer housing is built for site conditions.
Technical specifications
| Working range | 20 ÷ 125/160 ½” IPS ÷ 6” IPS (110 V-230V) |
|---|---|
| Automatic ambient temperature compensation (through the reading of the EF fitting barcode) | Yes |
| Continuous welding cycle monitoring | Yes |
| Barcode scanner (ISO 13950) | Yes |
| Manual welding parameters input | Yes |

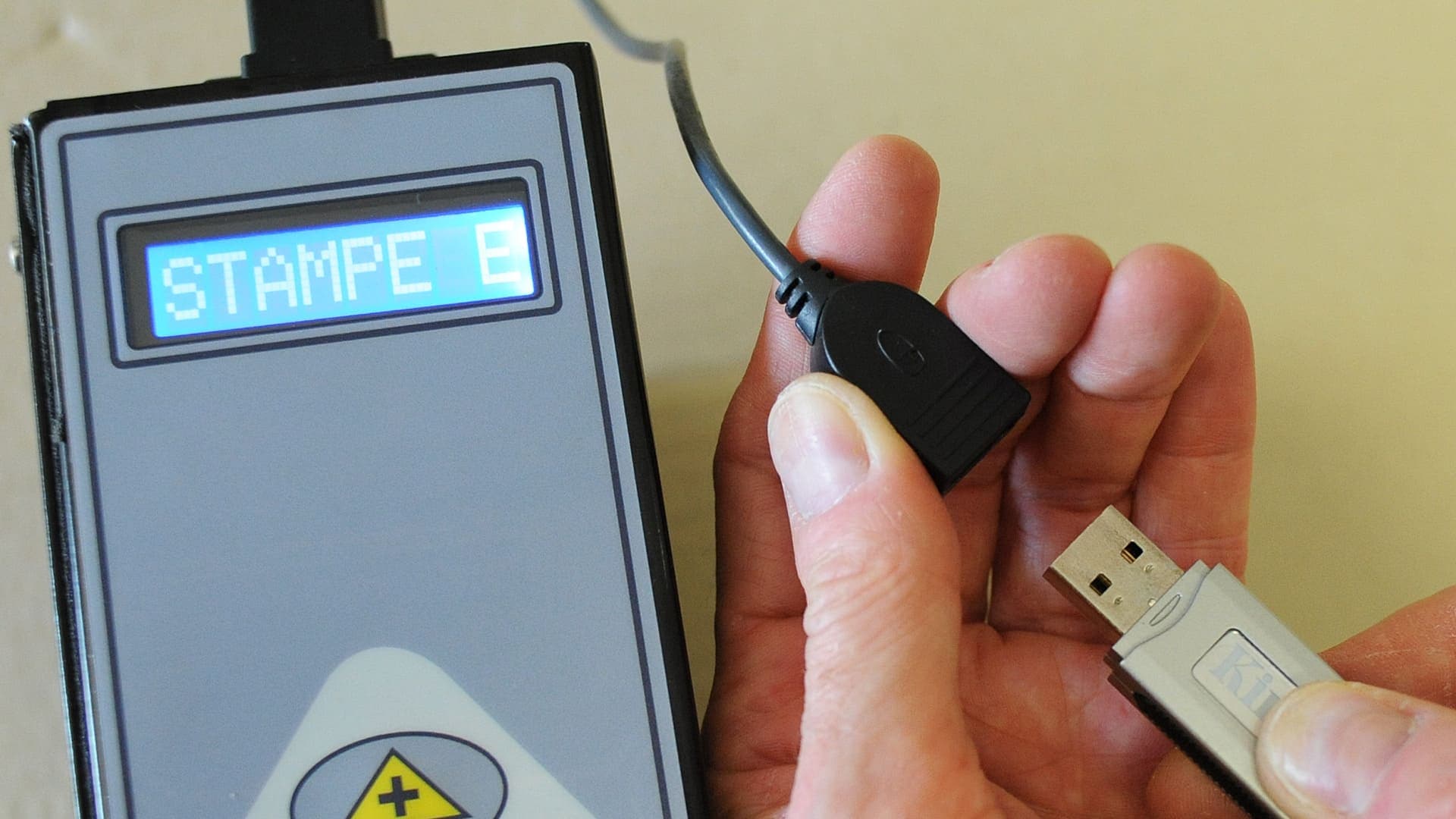

| Connection | Adapter DB9M-USB |
| Welding report file format | PDF - BIN |
| Memory | 325 cycles |
| Connector | Universal adapter 90° Ø 4.00 - 4,7 mm |
| Power supply | 110 V - 50/60 Hz / 230 V - 50/60 Hz |
| Absorbed power (Power at 60% Duty Cycle) | 1300 W |
| Suggested generator | 3,5 ÷ 4 kVA |
| Max output current | 60 A |
| Welding output voltage | 8 ÷ 48 V |
| Outside temperature range | -10° ÷ 50° C; -4° ÷ 122° F |
| Dimensions Body machine (W x D x H) | 200 x 250 x 210 mm 7.9” x 9.8” x 8.3” |
| Weight Body machine | 7 Kg (15.4 lb) |
