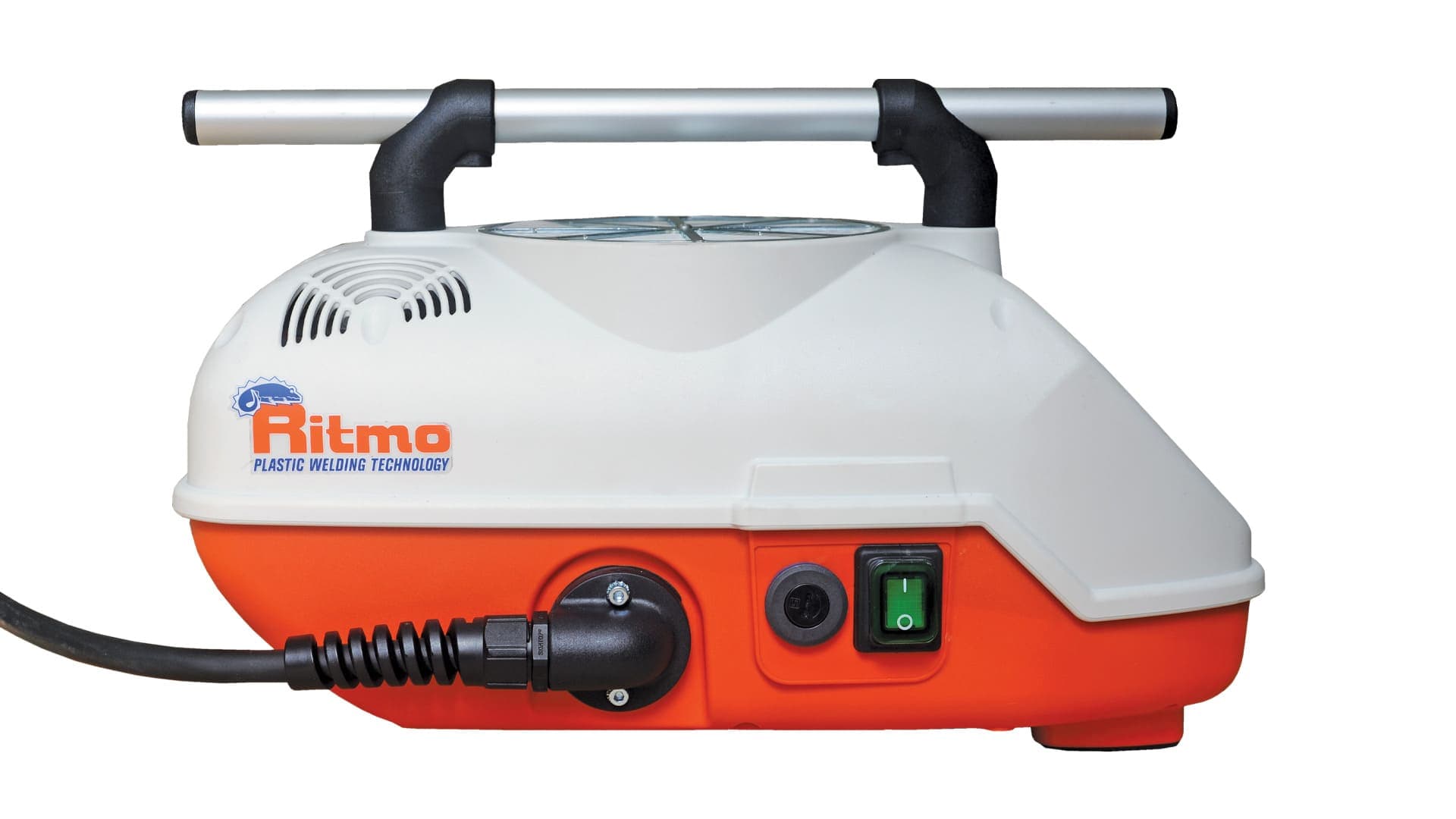

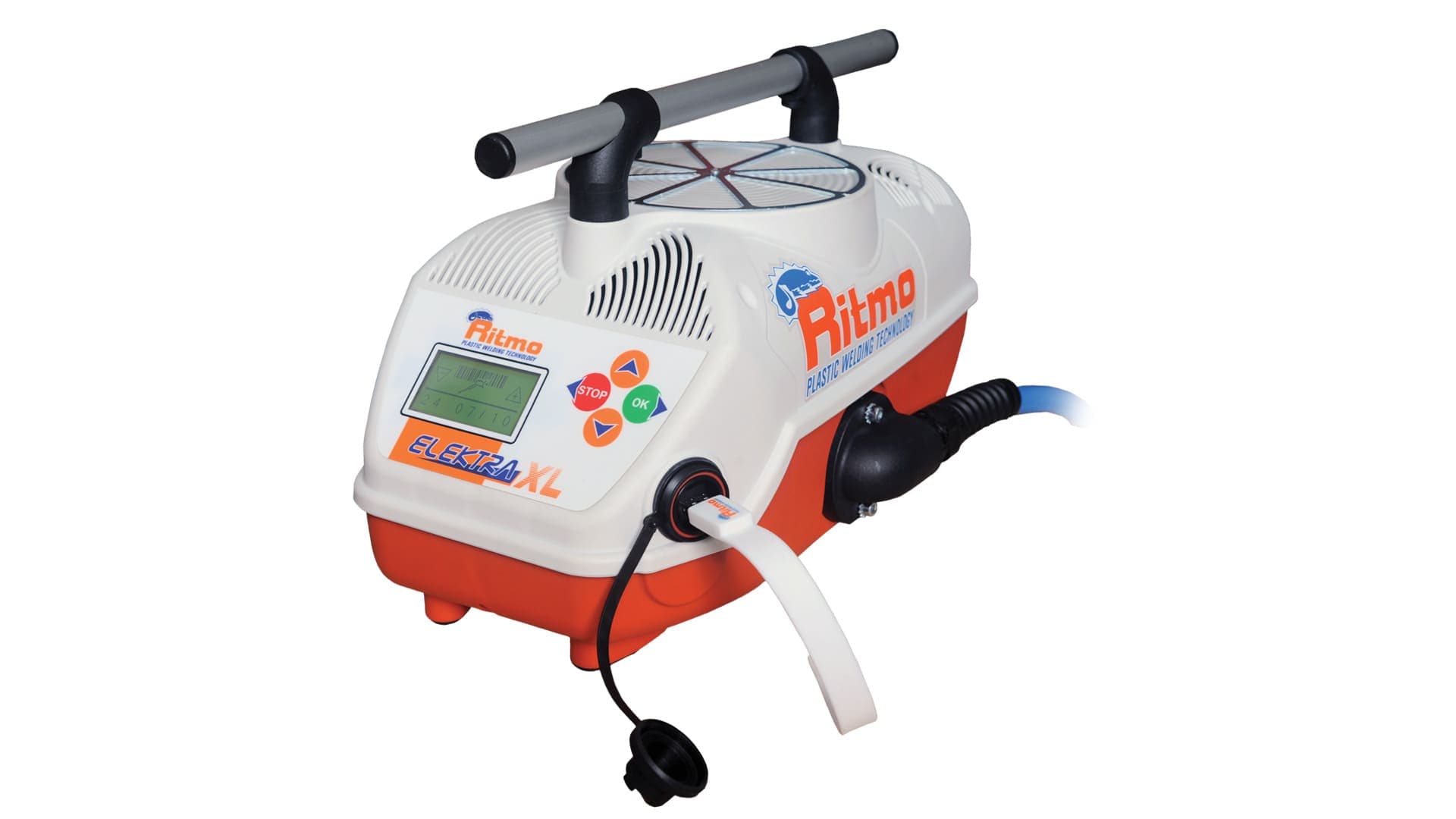

Ritmo Elektra XL V1 Electrofusion Machine Ø 20-1600 mm
- Brand
- Ritmo
- Category
- Electrofusion Machines
Product details
Elektra XL V1 welds every electrofusion fitting from Ø 20 to 1600 mm on single-phase 230 V — the widest range in the line, with 8,000 cycles of memory, full traceability and an optional GPS module.

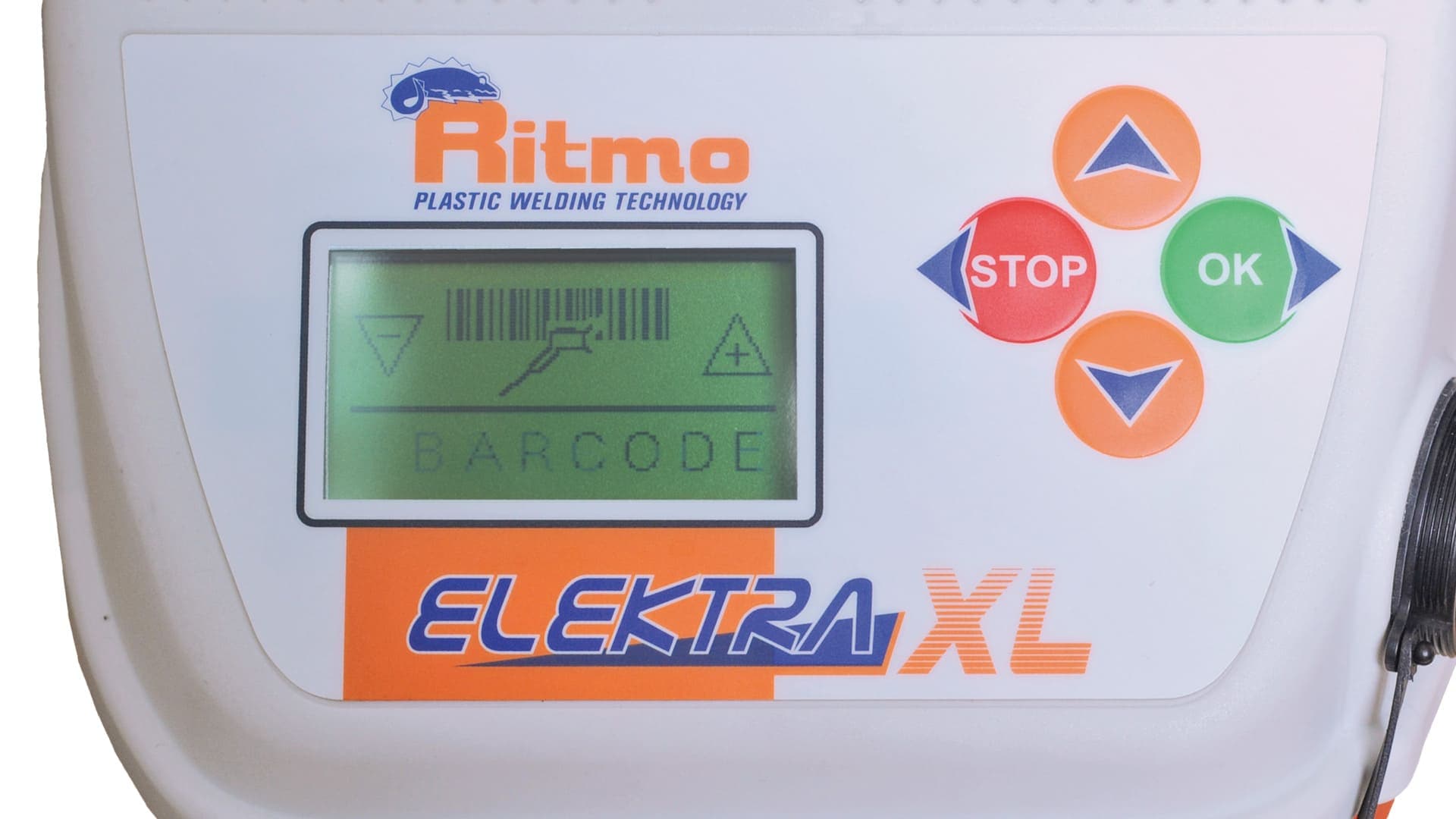

Elektra control units read the fitting's barcode with a laser scanner and set the welding parameters automatically to ISO 13950. Ambient temperature compensation is automatic, the cycle is monitored continuously and stopped on deviation, and parameters can also be entered by hand. Welding reports export as PDF, CSV and BIN, and the impact-resistant technopolymer housing is built for site conditions.
Technical specifications
| Working range | 20 ÷ 1600 mm ½” IPS - 63” IPS (230 V) |
|---|---|
| Automatic ambient temperature compensation (through the reading of the EF fitting barcode) | Yes |
| Continuous welding cycle monitoring | Yes |
| Barcode scanner (ISO 13950) | Yes |
| Manual welding parameters input | Yes |
| Connection | USB-A |
| Welding report file format | PDF- CSV- BIN |
| Memory | 8000 cycles |
| Connector | Universal adapter 90° Ø 4.00 - 4,7 mm |
| Traceability ISO | 12176 - 3 12176 - 4 |
| Power supply | 230 V - 50/60 Hz |
| Absorbed power (Power at 60% Duty Cycle) | 3500 W (230 V) |
| Suggested generator | 6,5 ÷ 7 kVA |
| Max output current | 120 A |
| Welding output voltage | 8 ÷ 48 V - 8 ÷ 80 V |
| Outside temperature range | -20° ÷ 50° C; -4° ÷ 122° F |
| Dimensions Body machine (W x D x H) | 246 x 390 x 240 mm; 7.9” x 15.3” x 9.4” |
| Weight Body machine + cable + laser scanner | 9,4 Kg; 20.7 lb |
| Dimensions transport case (W x D x H) | 290 x 445 x 295mm 11.4” x 17.5”x 11.6” |
