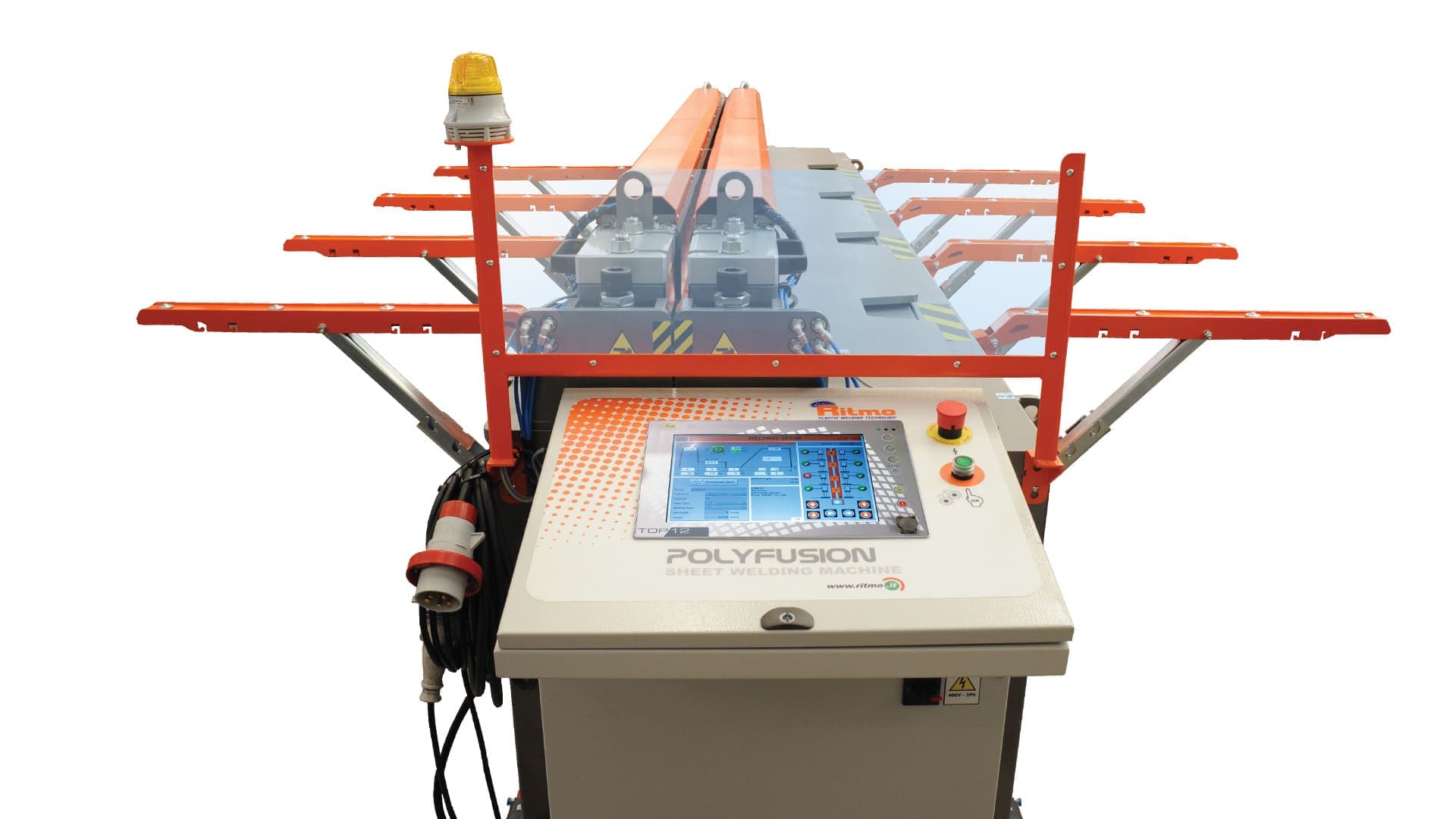

Ritmo Polyfusion 3 CNC Pneumatic Sheet Welding Machine 3050 mm
- Brand
- Ritmo
- Category
- Sheet Welding Machines
Product details

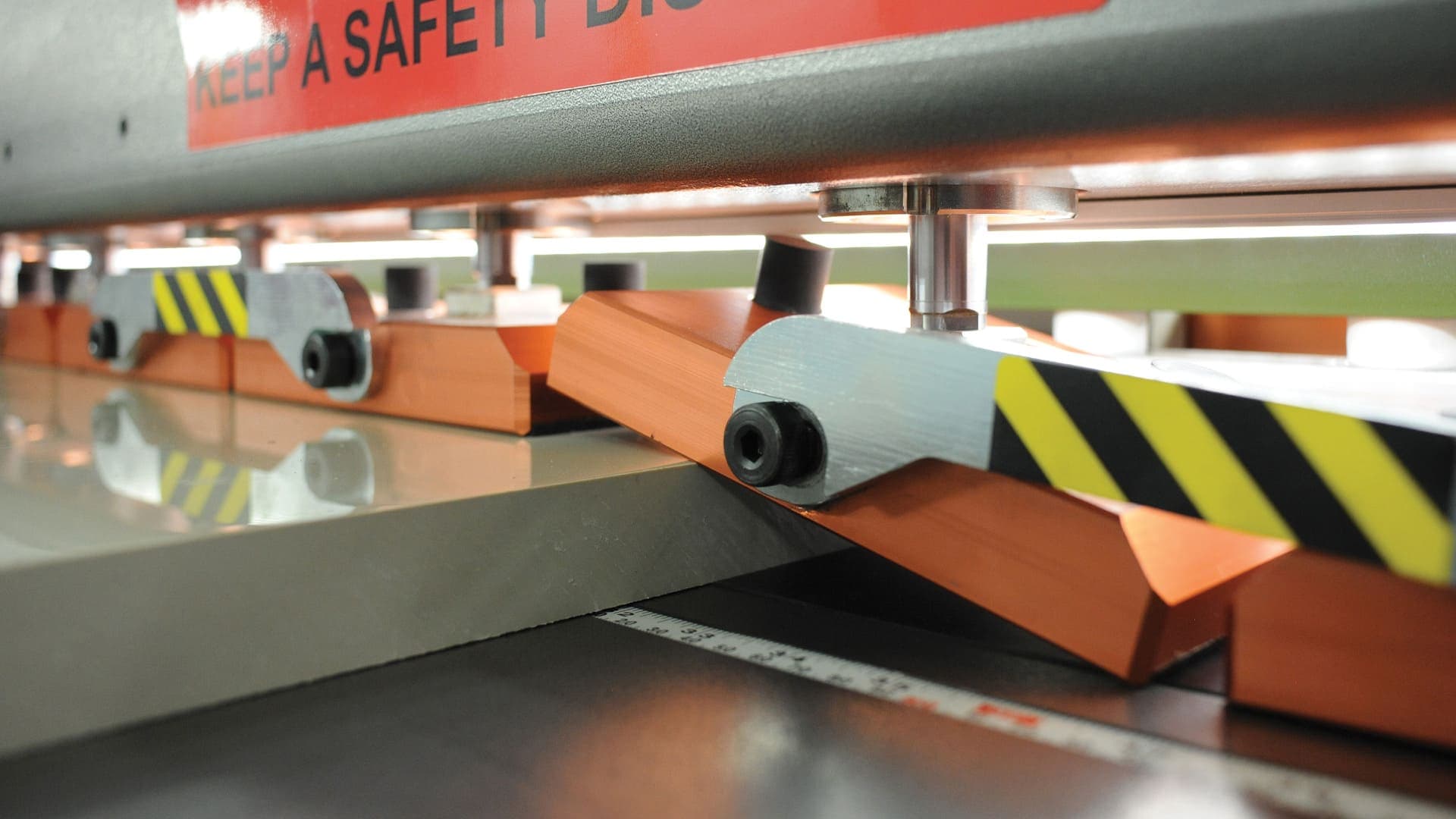

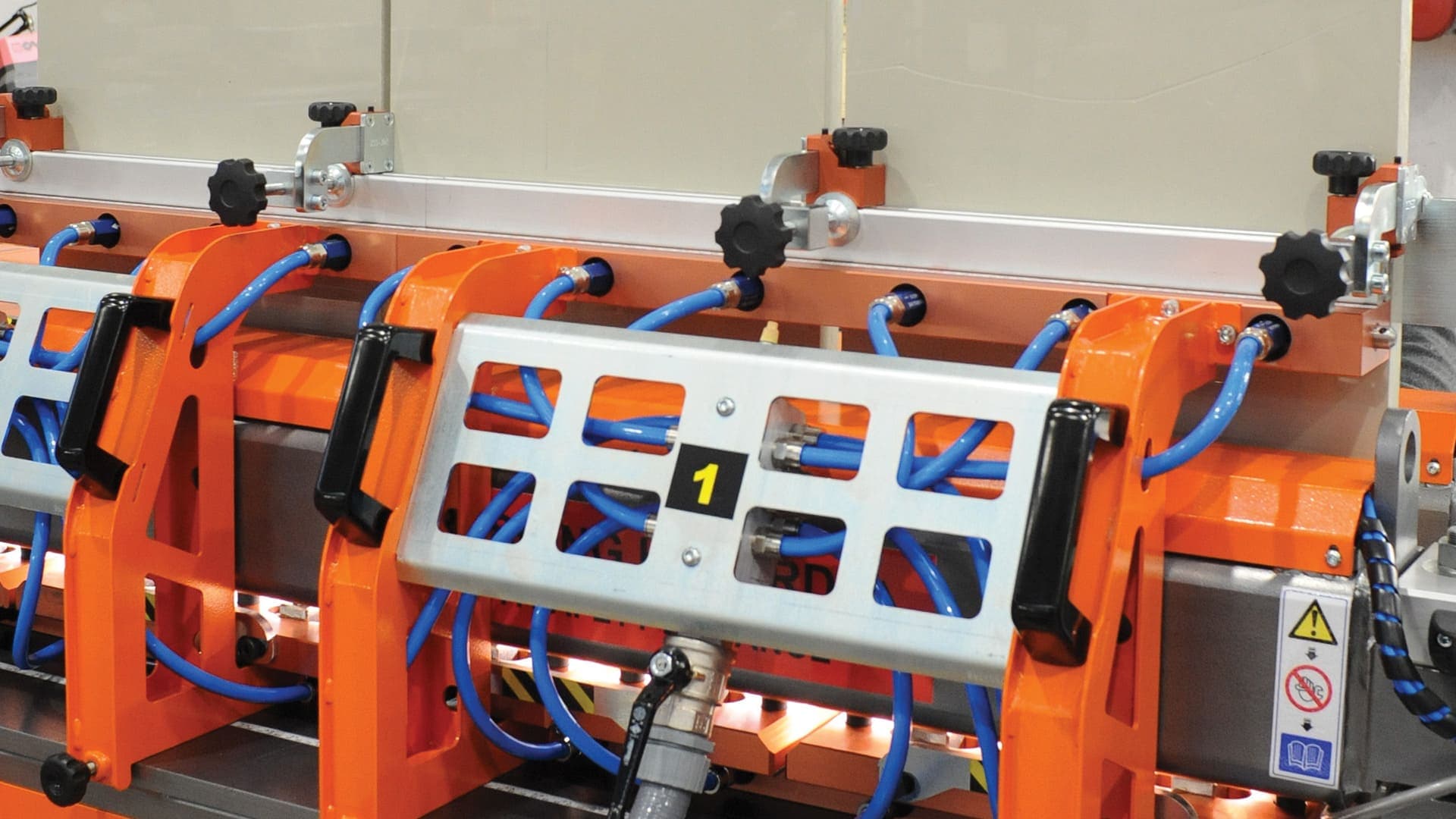

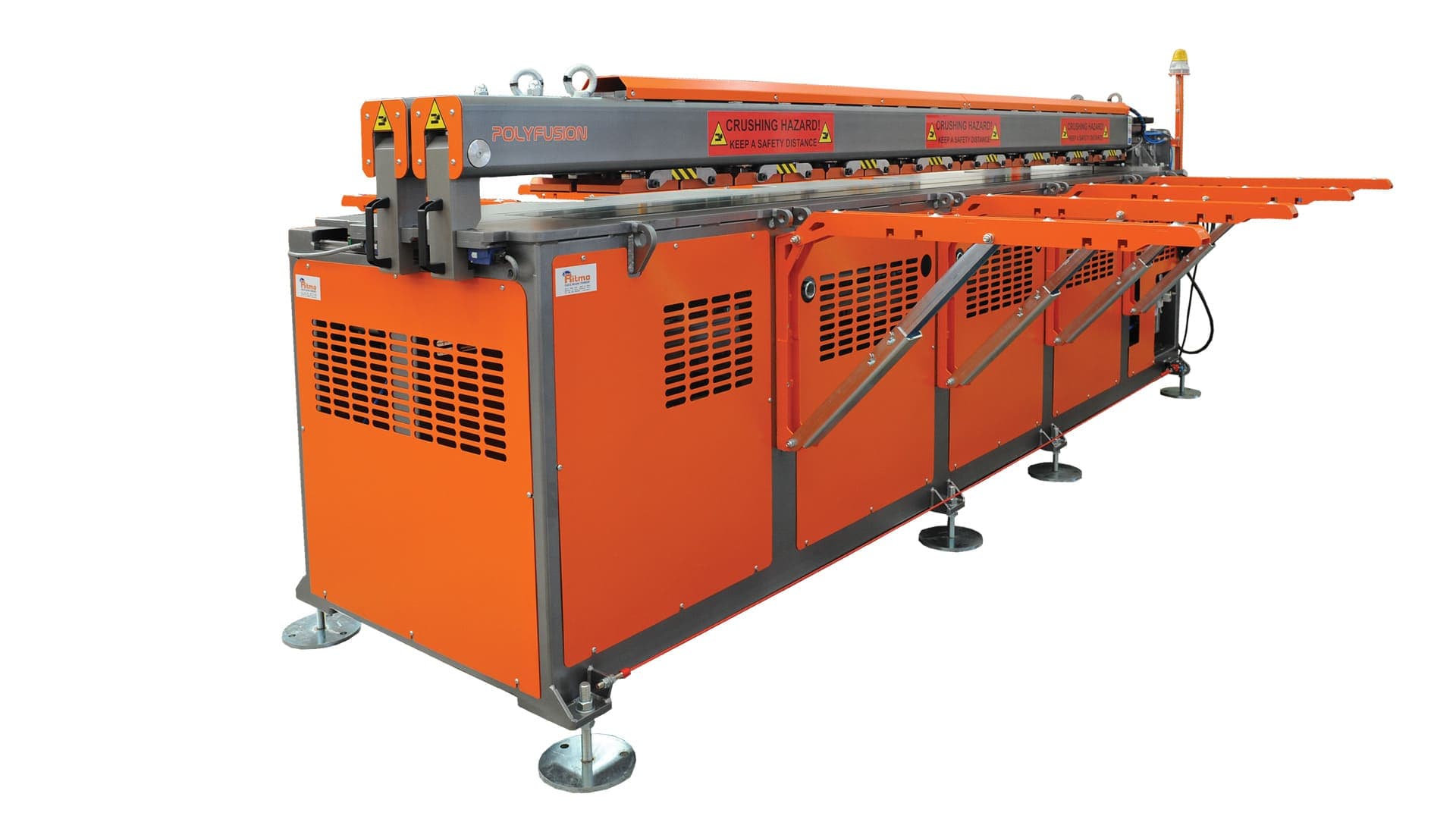

Polyfusion 3 is a CNC pneumatic press with a 3,050 mm working width. Its cycle complies with DVS 2207 and parameters for HDPE, PP, PVC-U, PVC-C and PVDF are preloaded. The pneumatic locking system works in four distinct zones with a high density of pressure pads and even force distribution.

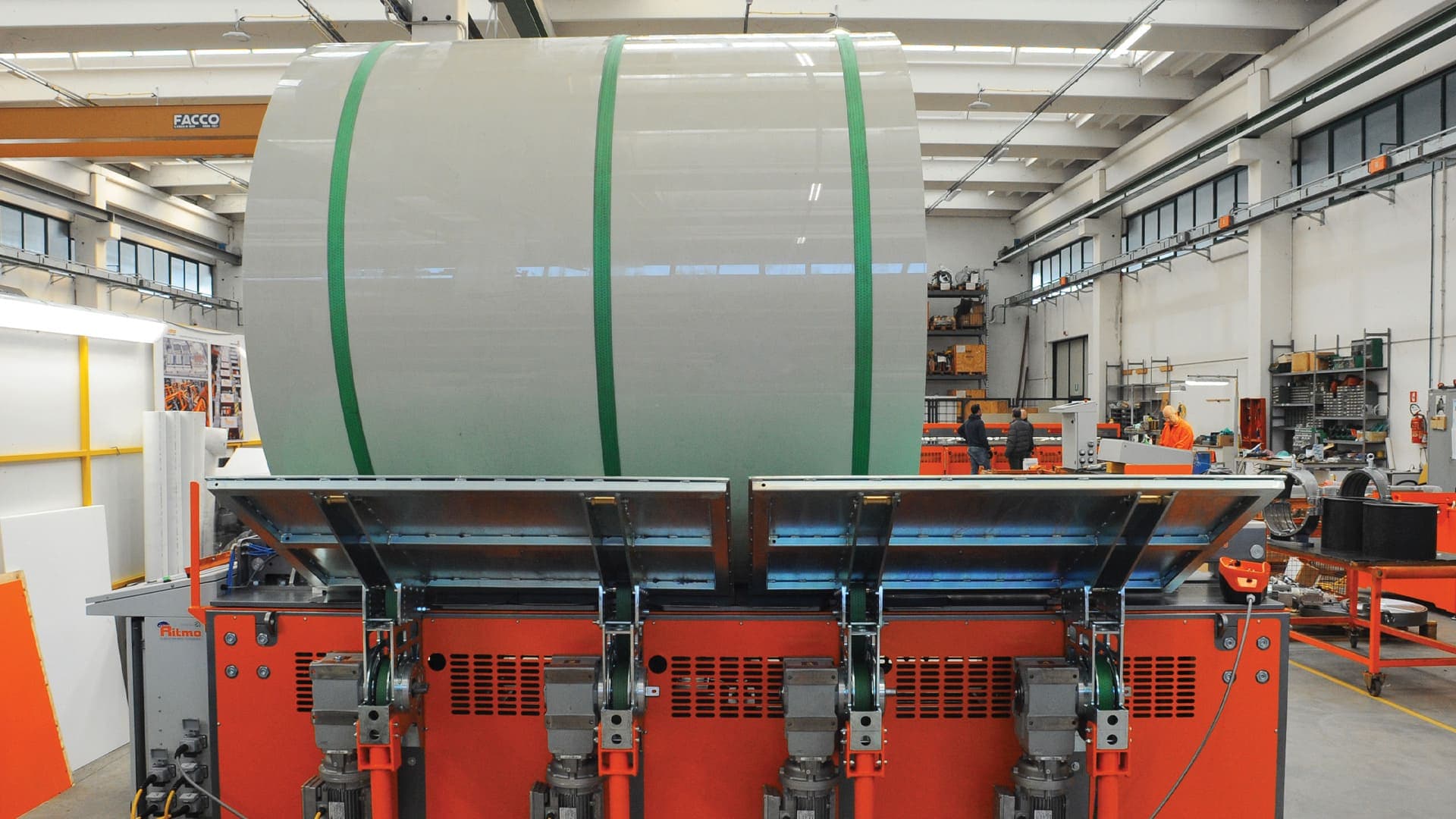

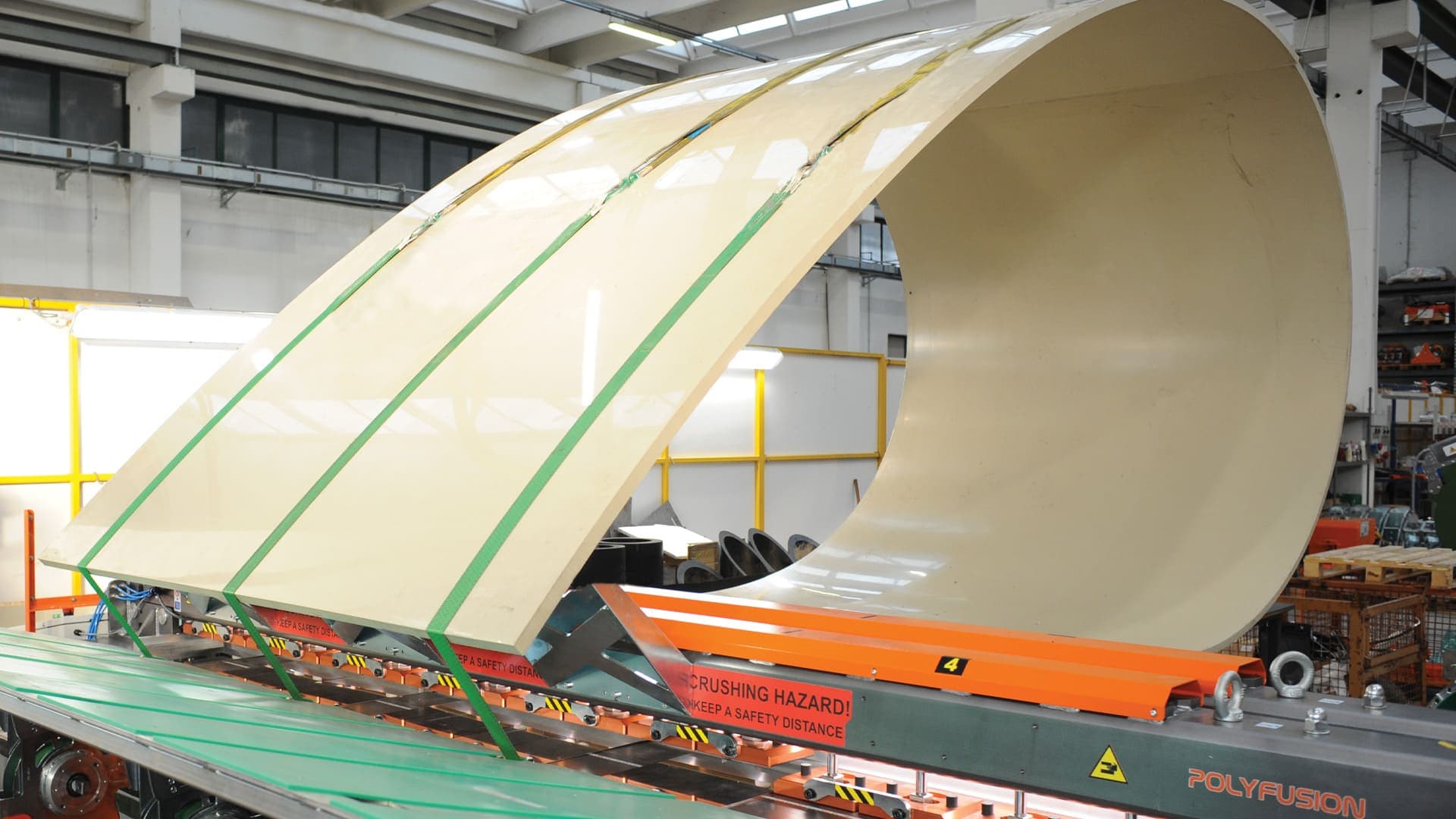

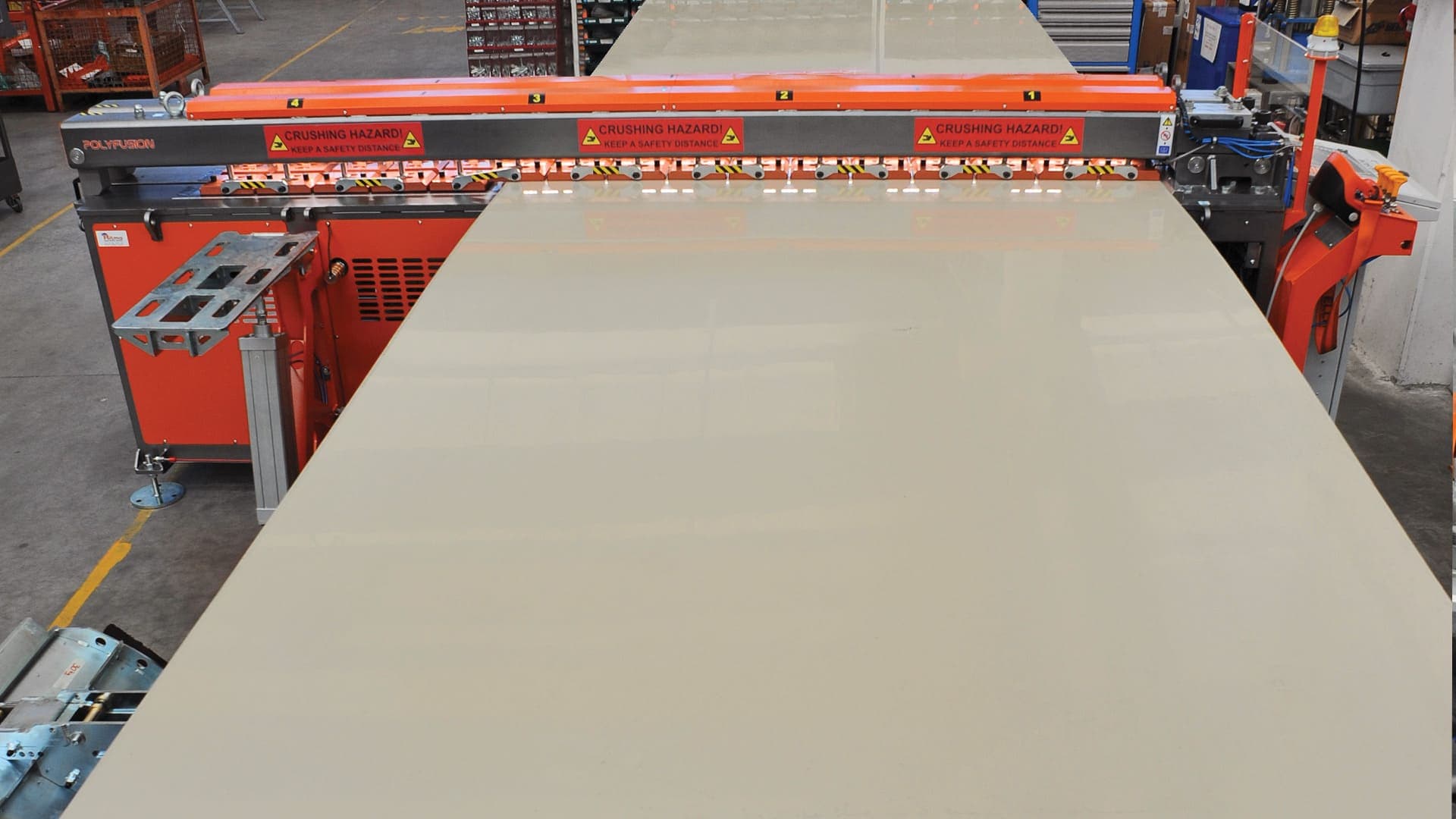

Polyfusion presses butt-weld PE and PP sheet to build the bodies of tanks, silos, couplers and fabricated parts. The working surface carries a graduated scale on both sides, which speeds up positioning and centring. Straight welds, twin-wall sheet and — on request — 90° welds are all covered.
Technical specifications
| Max. working width | 3050 mm |
|---|---|
| Min. weldable thickness | 3 mm |

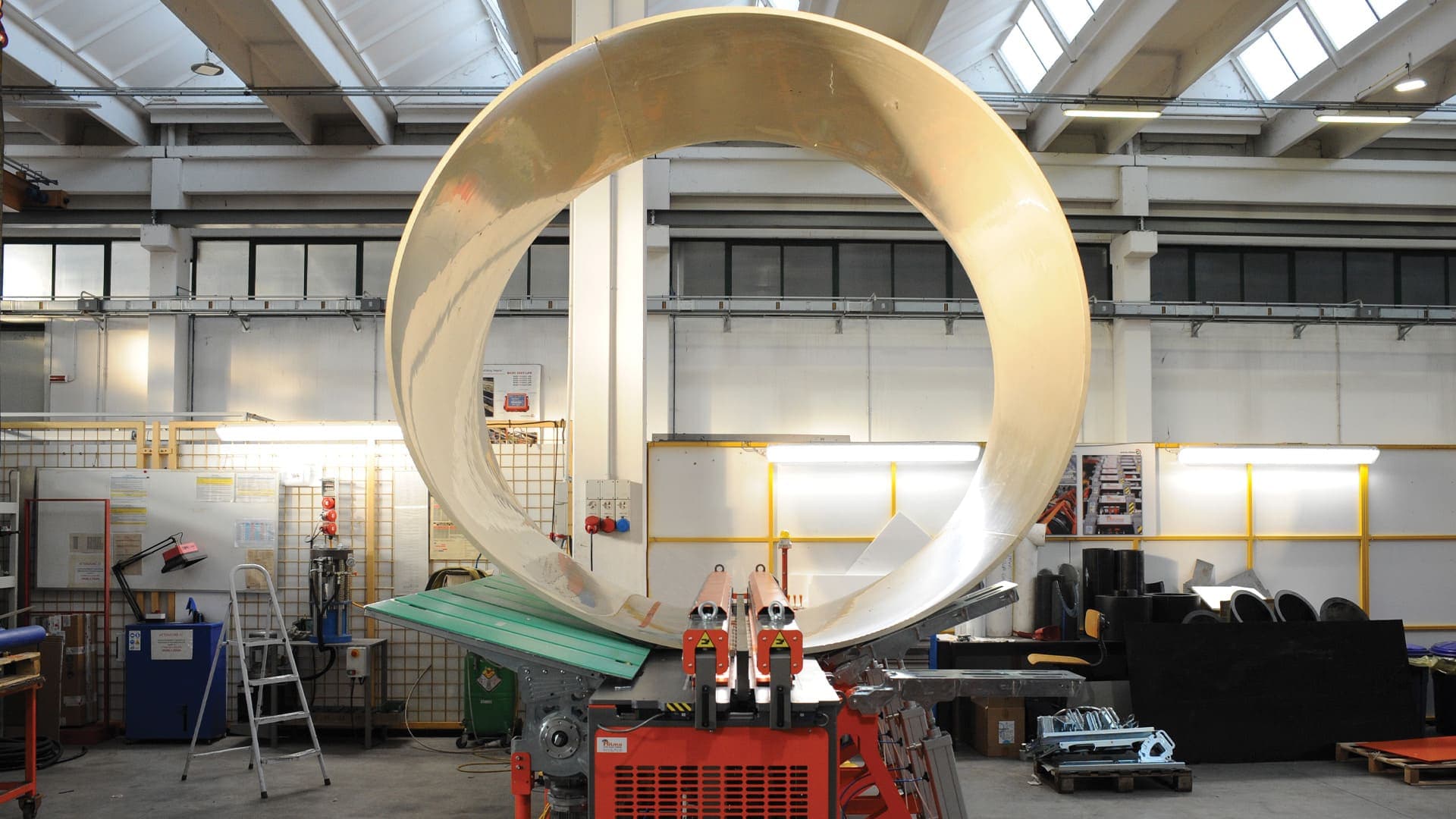

| Types of welding | straight; twin wall up to 60 mm; 90° ( kit on request); welding circular (kit on request min Ø 500 mm) |
| Sheet locking clamps | pneumatic |
| Locking 90° sheets | pneumatic |
| Heating plate lift | automatic |
| Welding System | CNC |
| Report | CSV |
| Memory | limitless reports |
| Display | LCD 12" |
| Power supply | 400 V Three Phase 50/60 Hz |
| Total absorbed power | 11500 W |
| Dimensions | 4307 x 2673 x 1508 mm |
| Weight | 2550 Kg |
