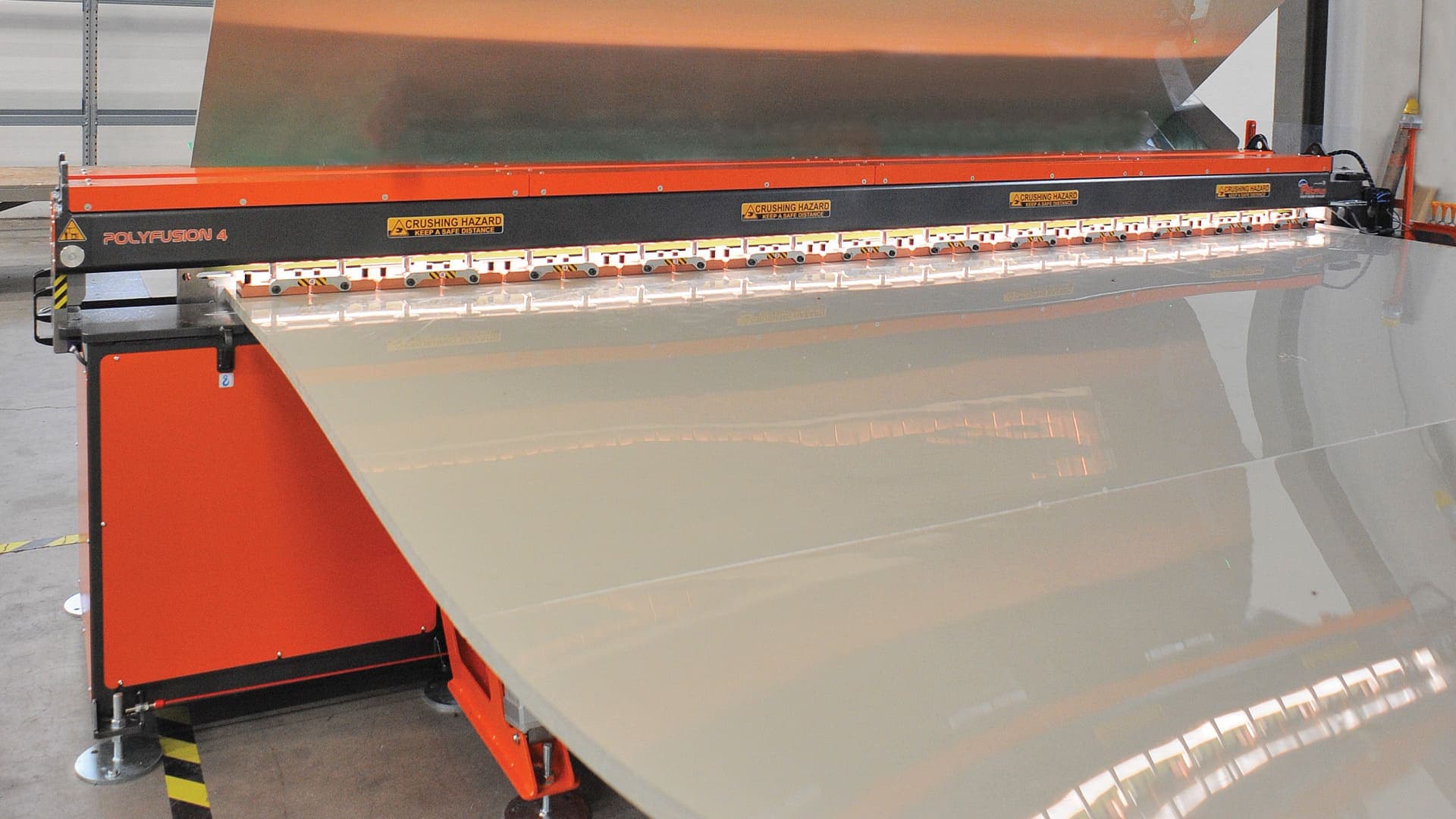

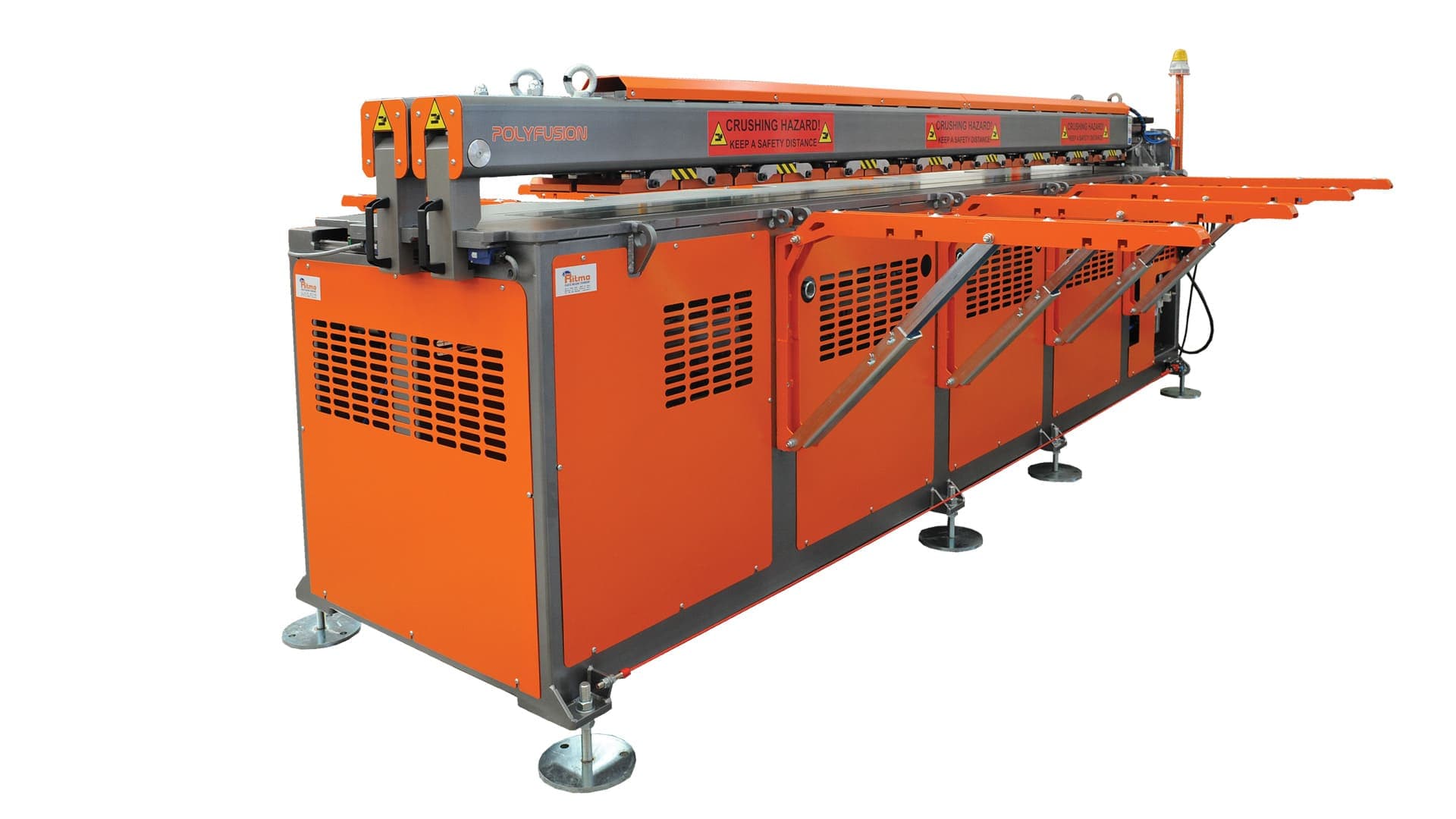

Ritmo Polyfusion 4 CNC Pneumatic Sheet Welding Machine 4050 mm
- Brand
- Ritmo
- Category
- Sheet Welding Machines
Product details

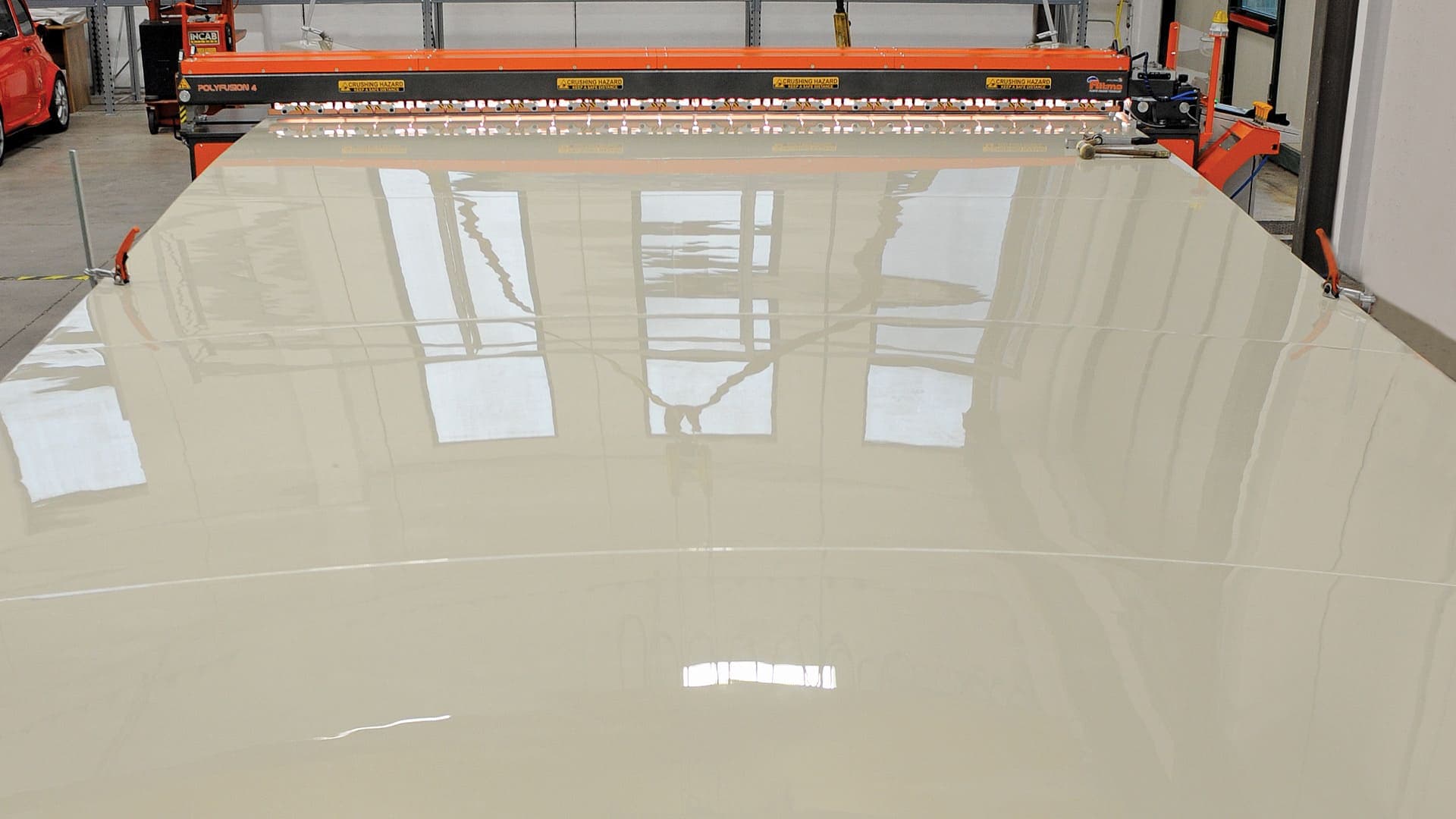

Polyfusion 4 welds sheet up to 4,050 mm wide: 3-50 mm solid, up to 60 mm twin-wall. CNC pneumatic control runs a DVS 2207 compliant cycle and ships with parameter sets for five materials.

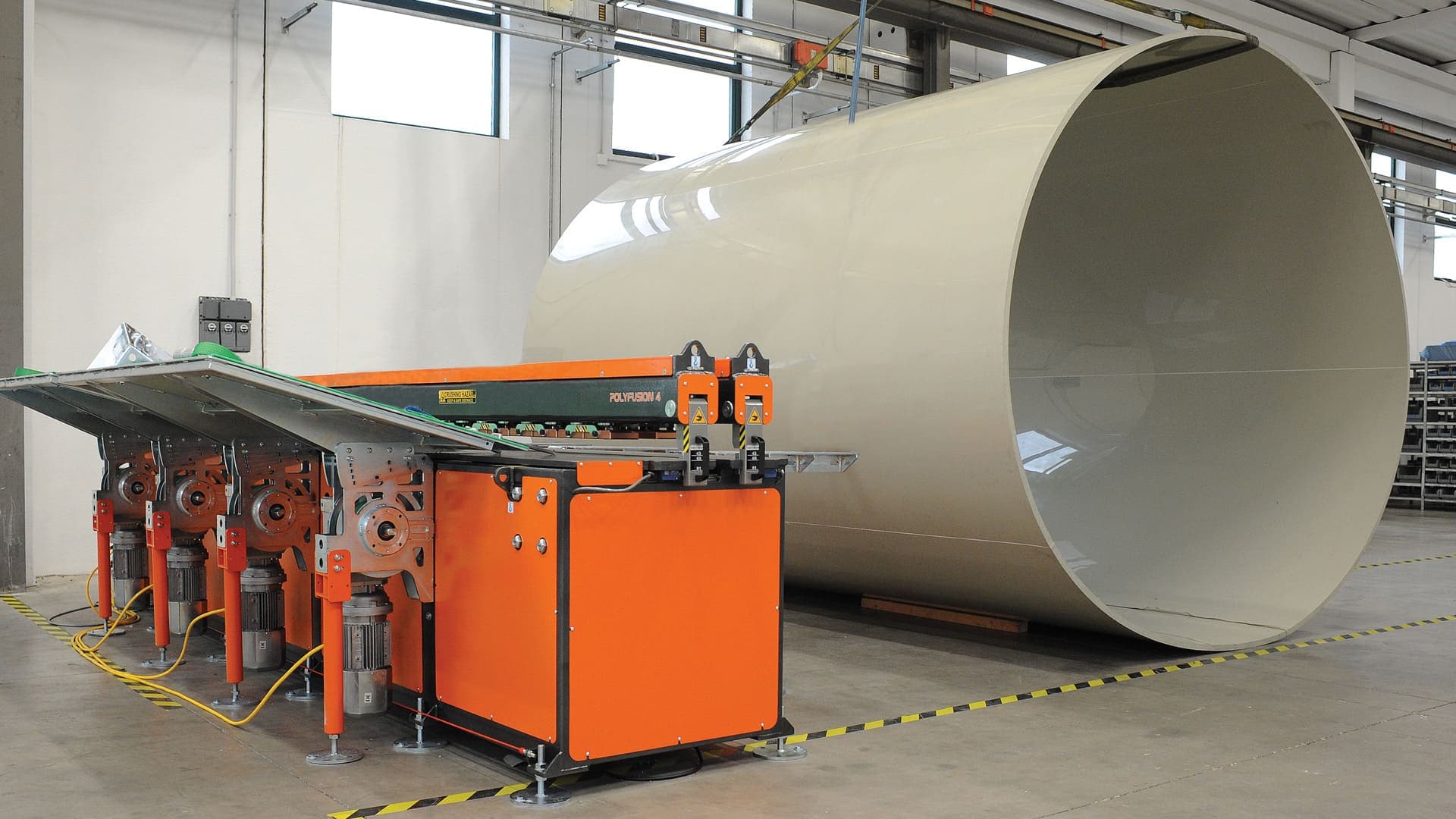

Polyfusion presses butt-weld PE and PP sheet to build the bodies of tanks, silos, couplers and fabricated parts. The working surface carries a graduated scale on both sides, which speeds up positioning and centring. Straight welds, twin-wall sheet and — on request — 90° welds are all covered.
Technical specifications
| Max. working width | 4050 mm |
|---|---|
| Min. weldable thickness | 3 mm |

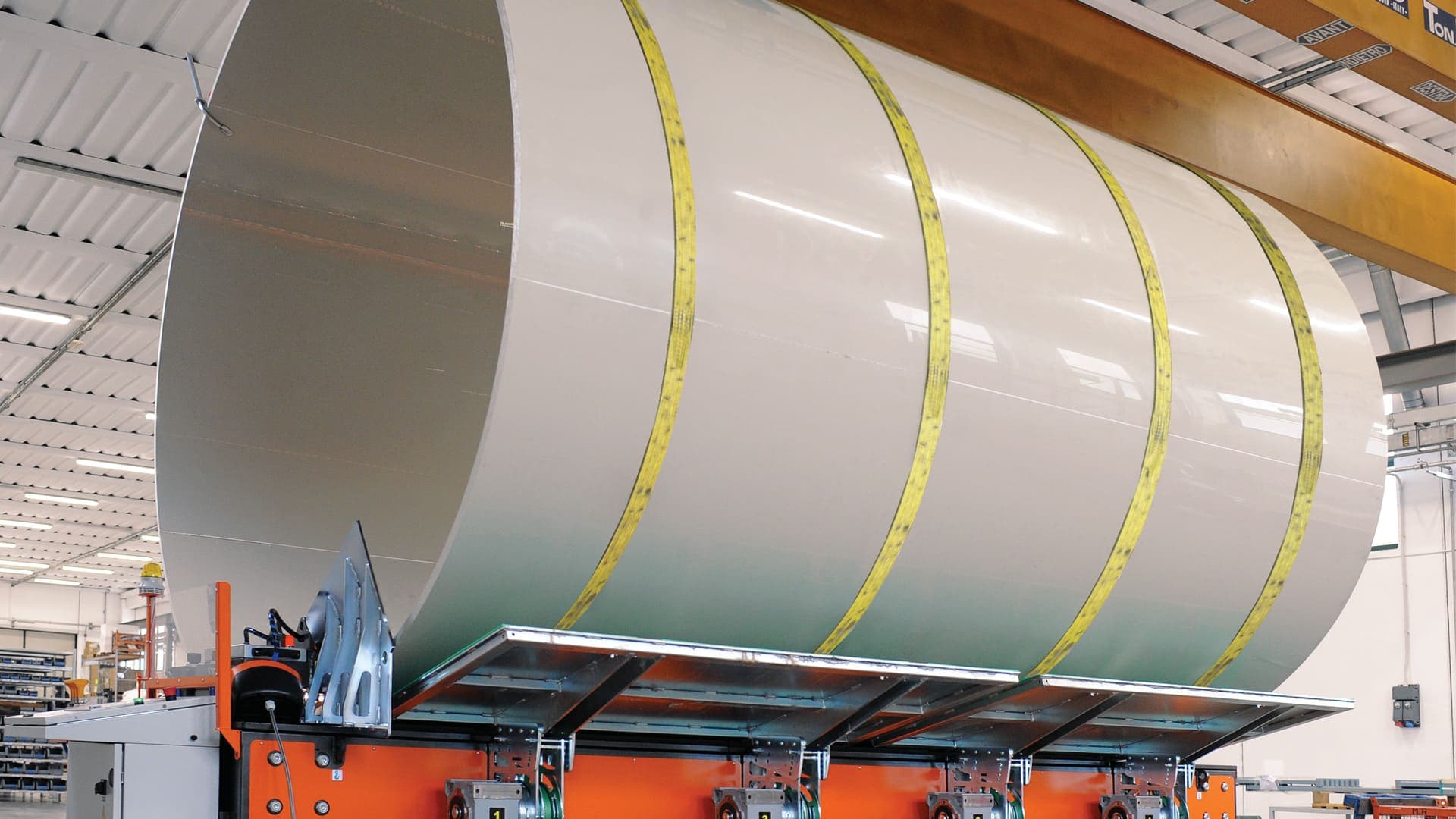

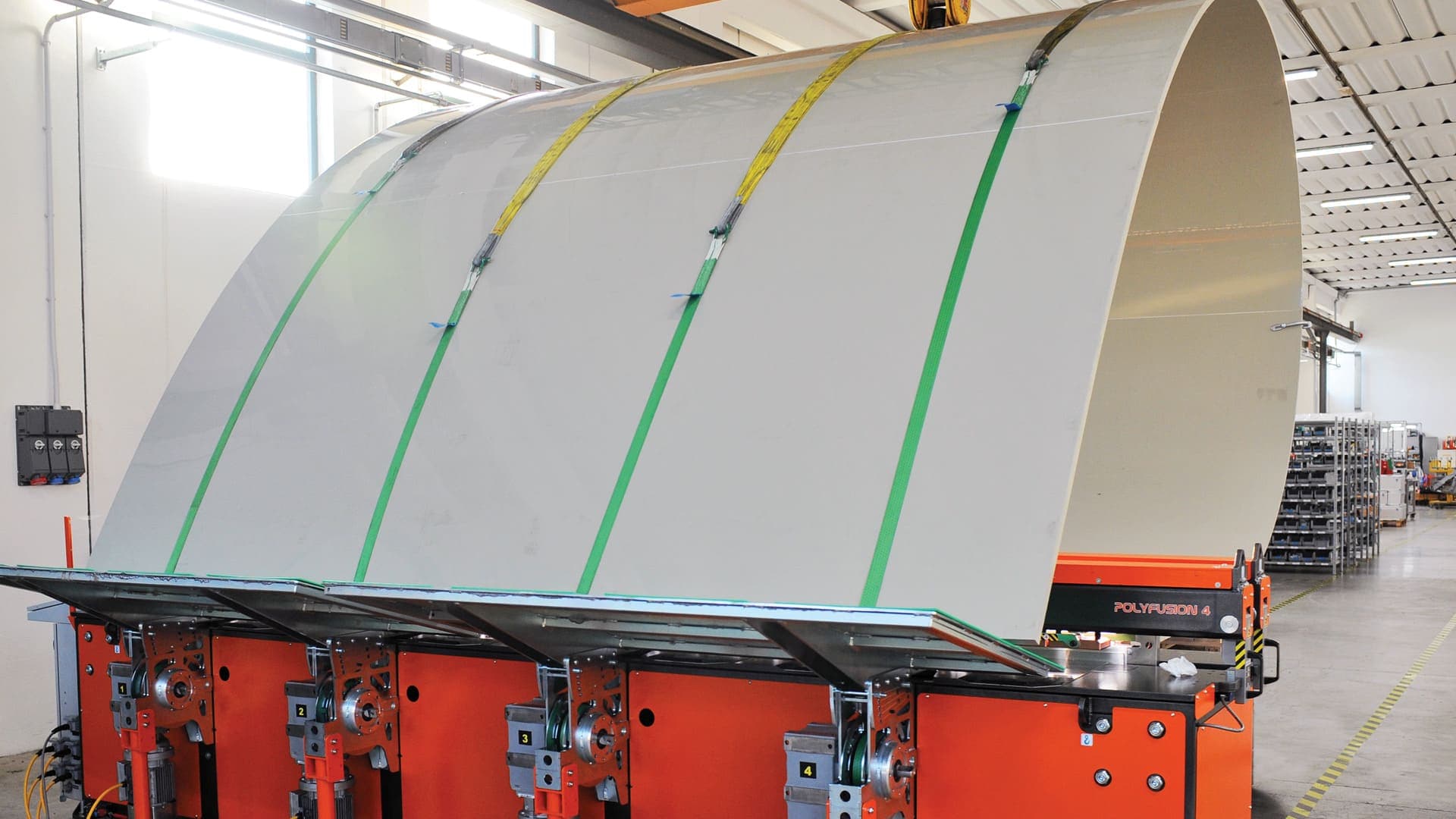

| Types of welding | straight; twin wall up to 60 mm; 90° ( kit on request); welding circular (kit on request min Ø 500 mm) |

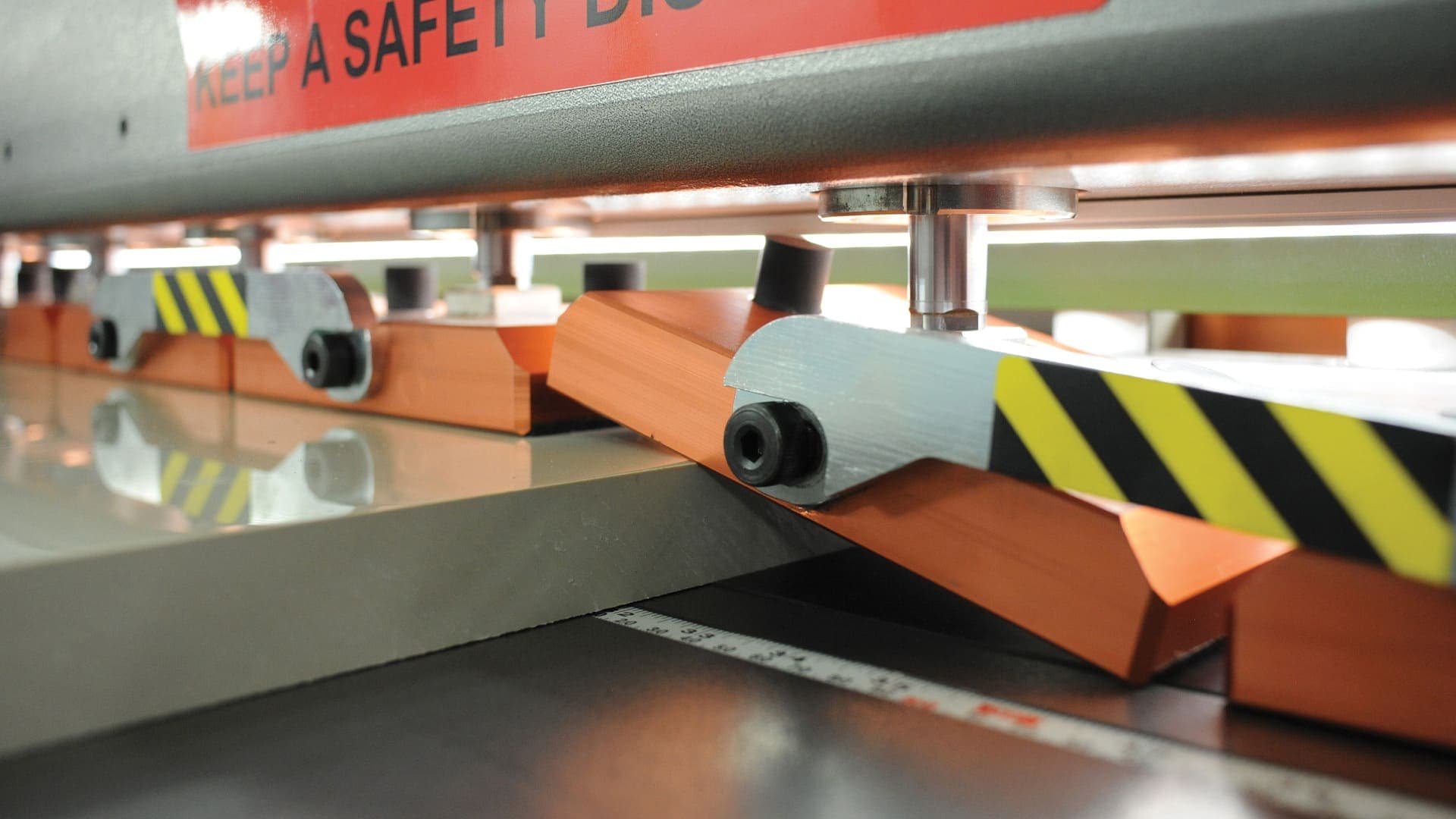

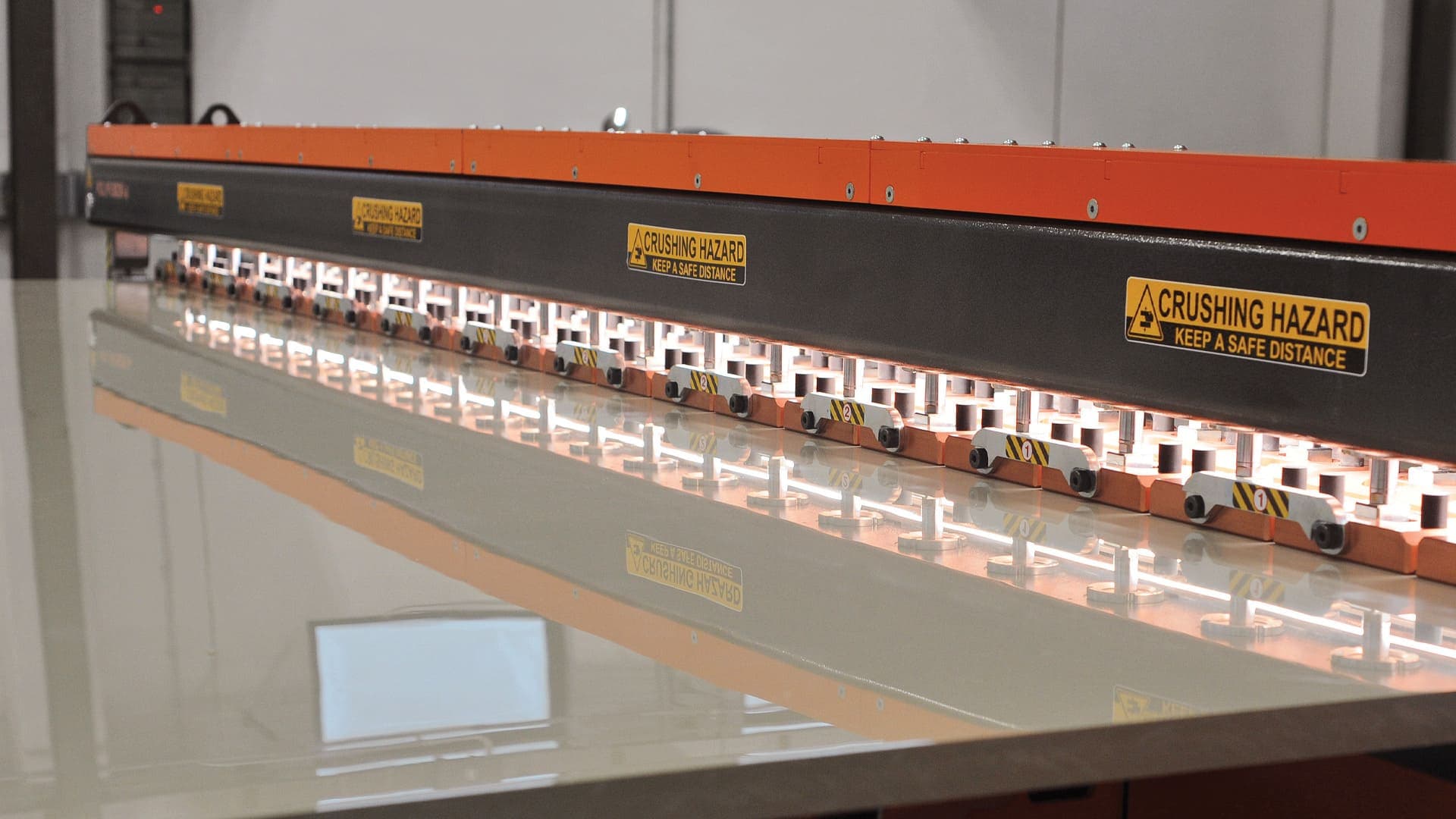

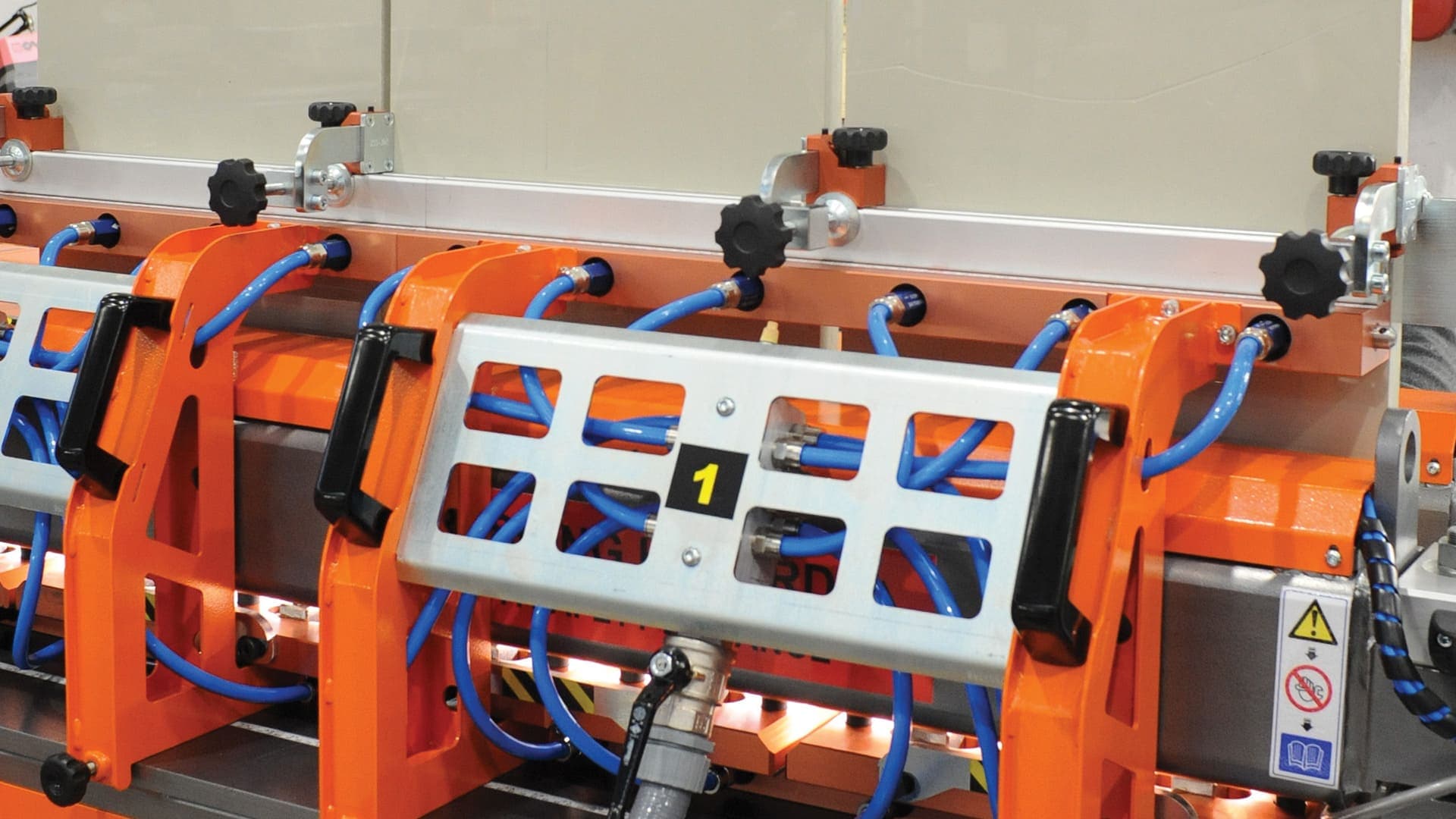

| Sheet locking clamps | pneumatic |

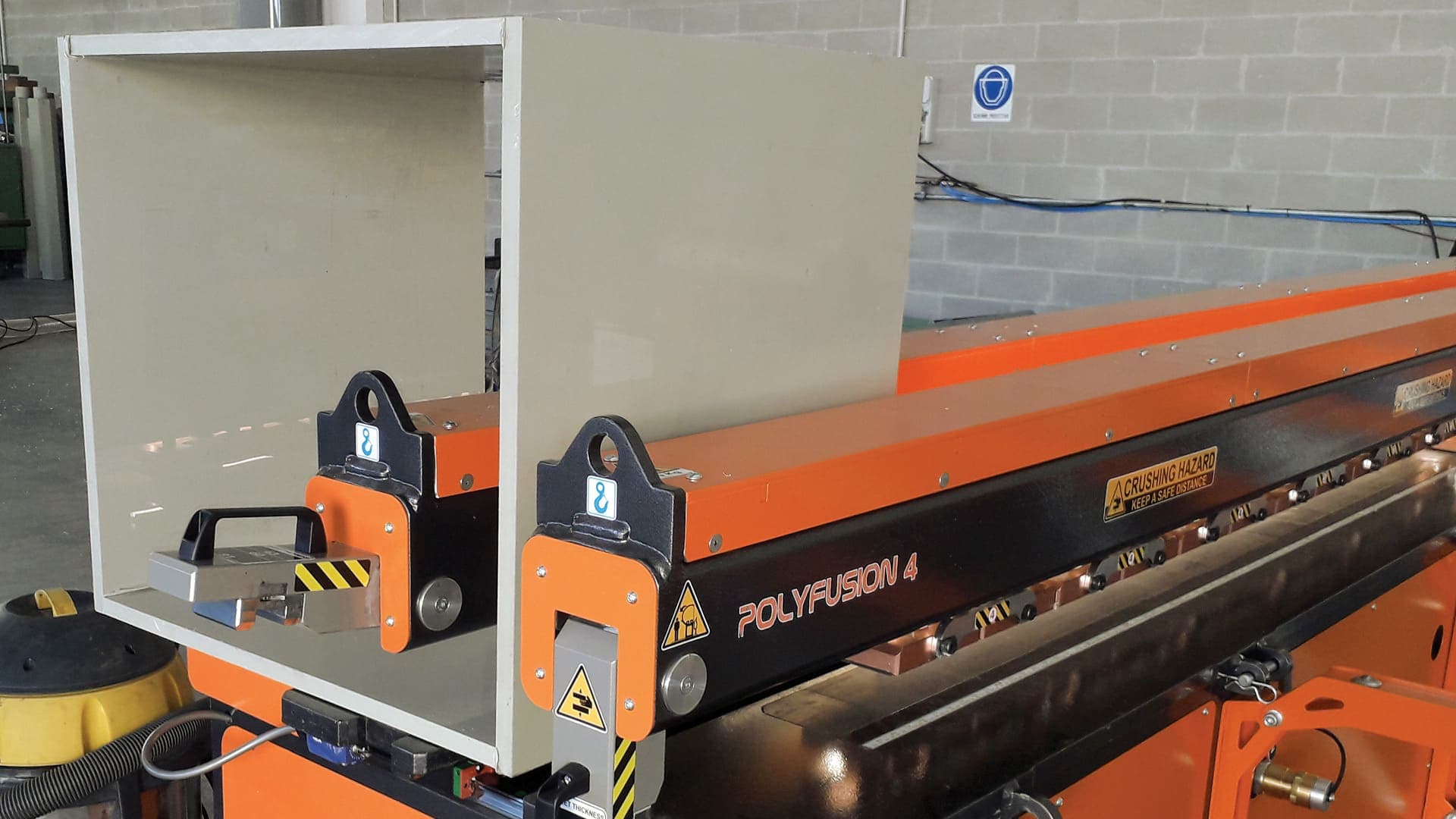

| Locking 90° sheets | pneumatic |
| Heating plate lift | automatic |
| Welding System | CNC |
| Report | CSV |
| Memory | limitless reports |

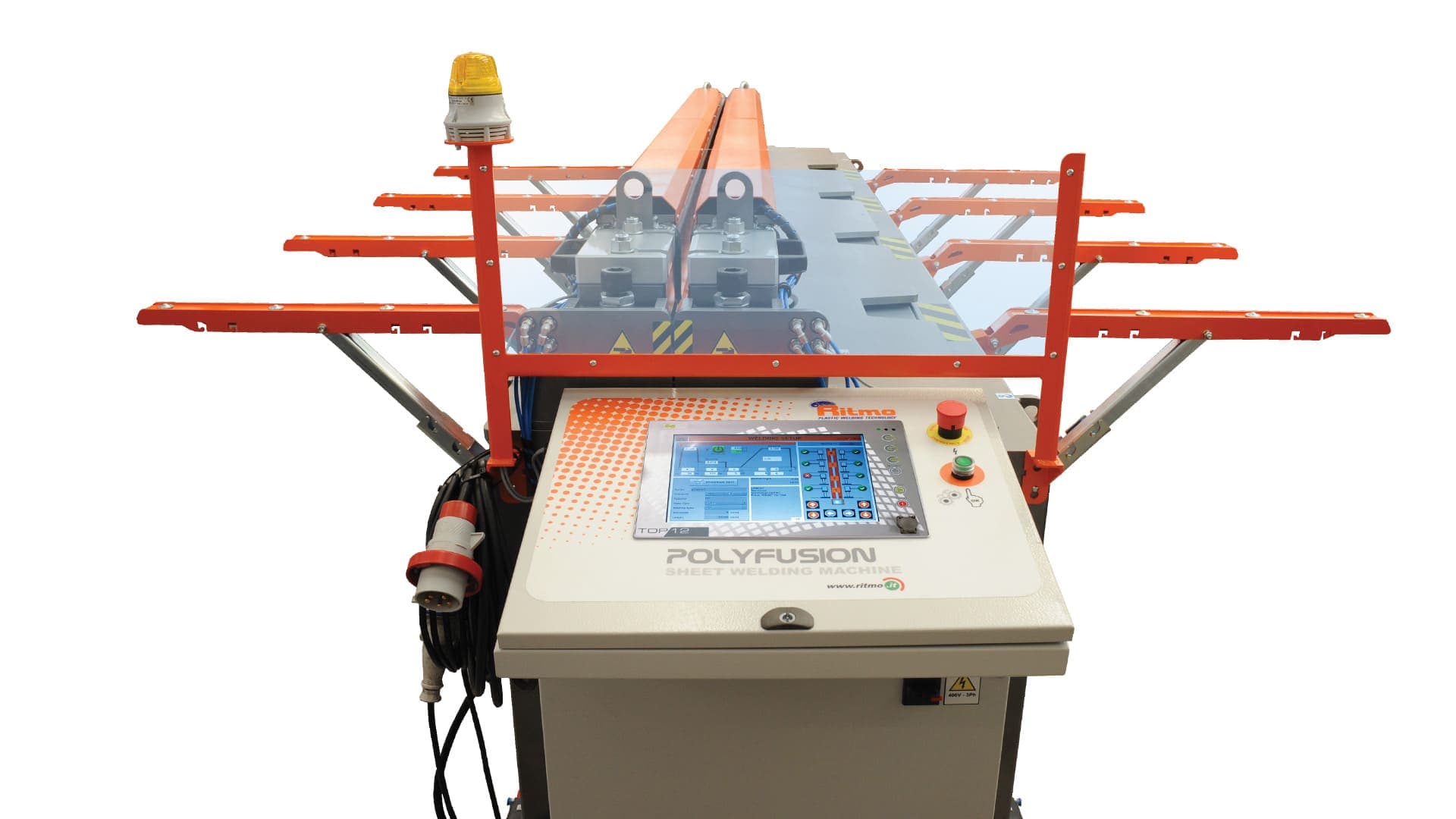

| Display | LCD 12" |
| Power supply | 400 V Three Phase 50/60 Hz |
| Total absorbed power | 13600 W |
| Dimensions | 5320 x 2673 x 1508 mm |
| Weight | 3200 Kg |
