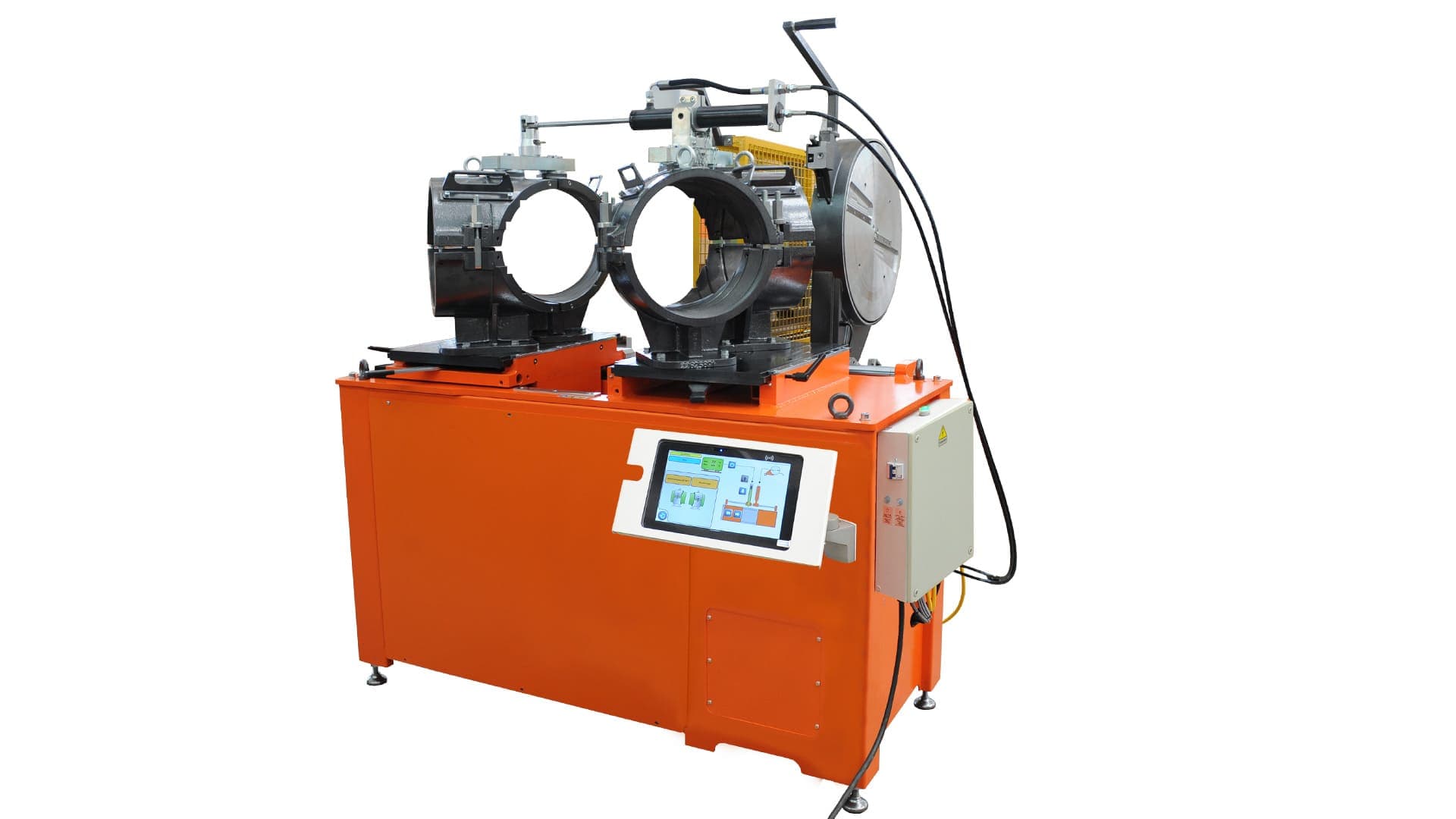

Ritmo Alfa 16 CNC TAB Fittings Fabrication Machine 4-16″ IPS
- Brand
- Ritmo
- Category
- Fittings Fabrication Machines
Product details

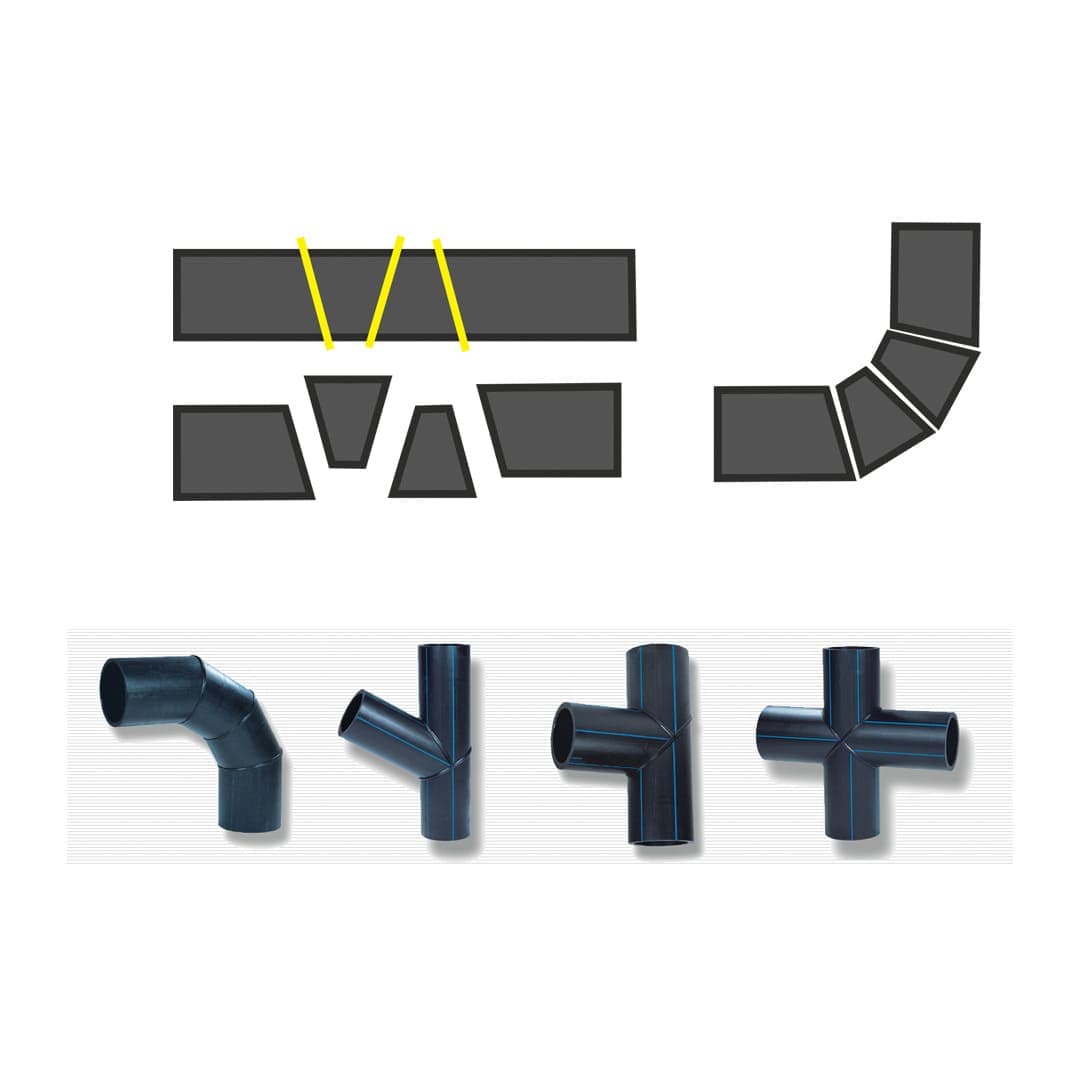

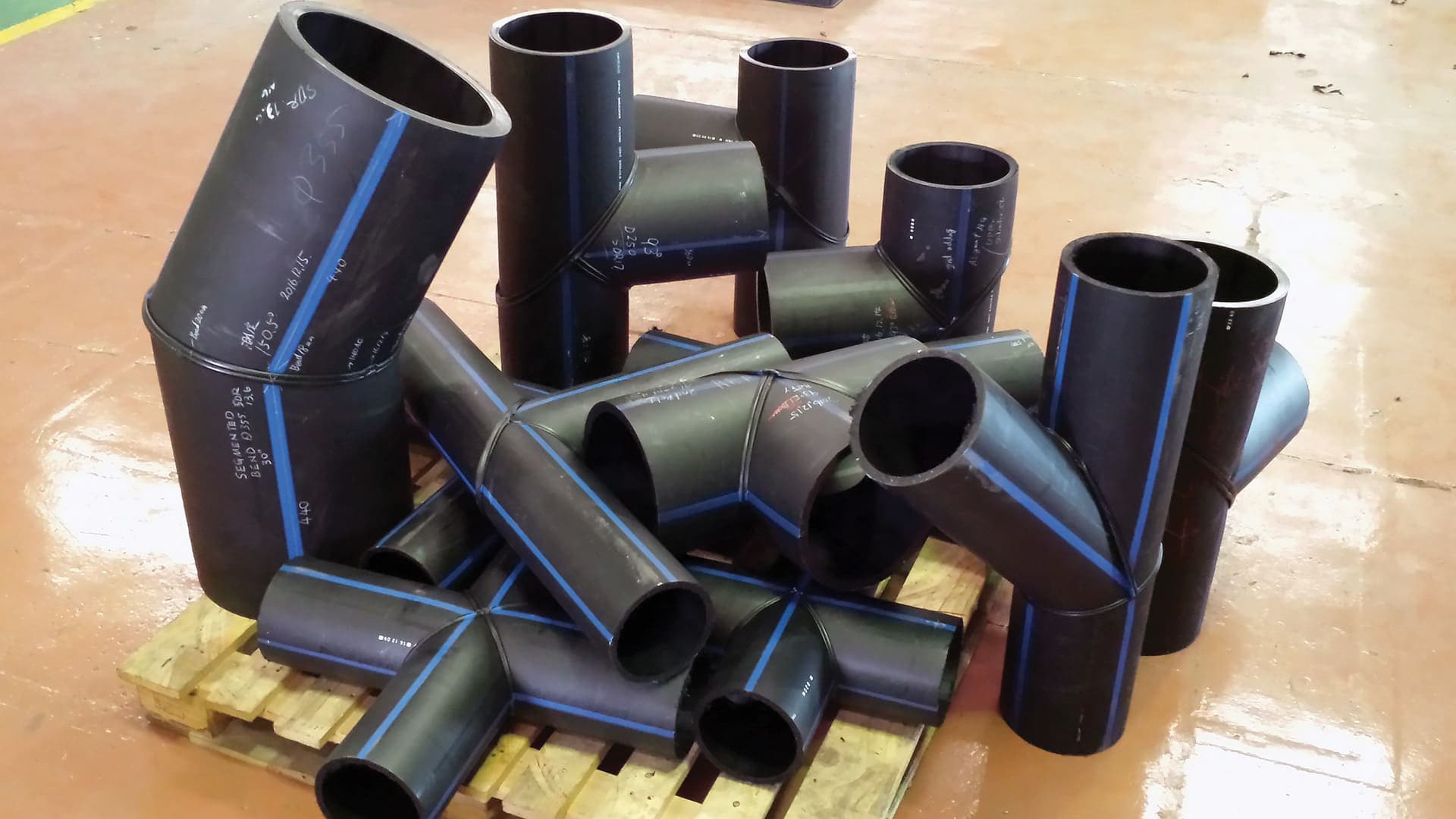

Alfa 16 CNC TAB makes 4-16″ IPS elbows and 4-12″ IPS tees, crosses and wyes — the imperial counterpart of the Alfa 400 CNC TAB, for projects and export work specified in IPS/DIPS.

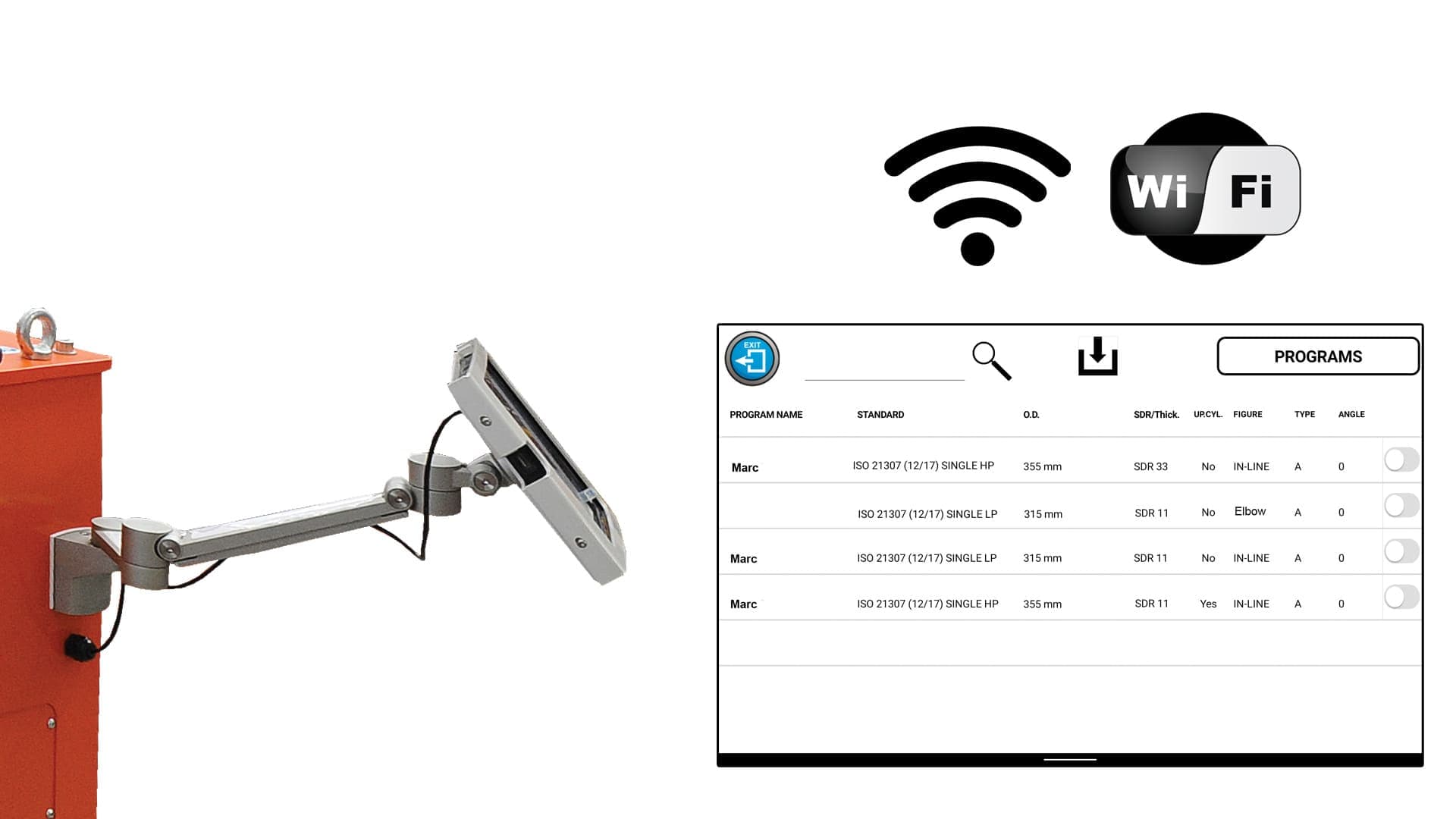

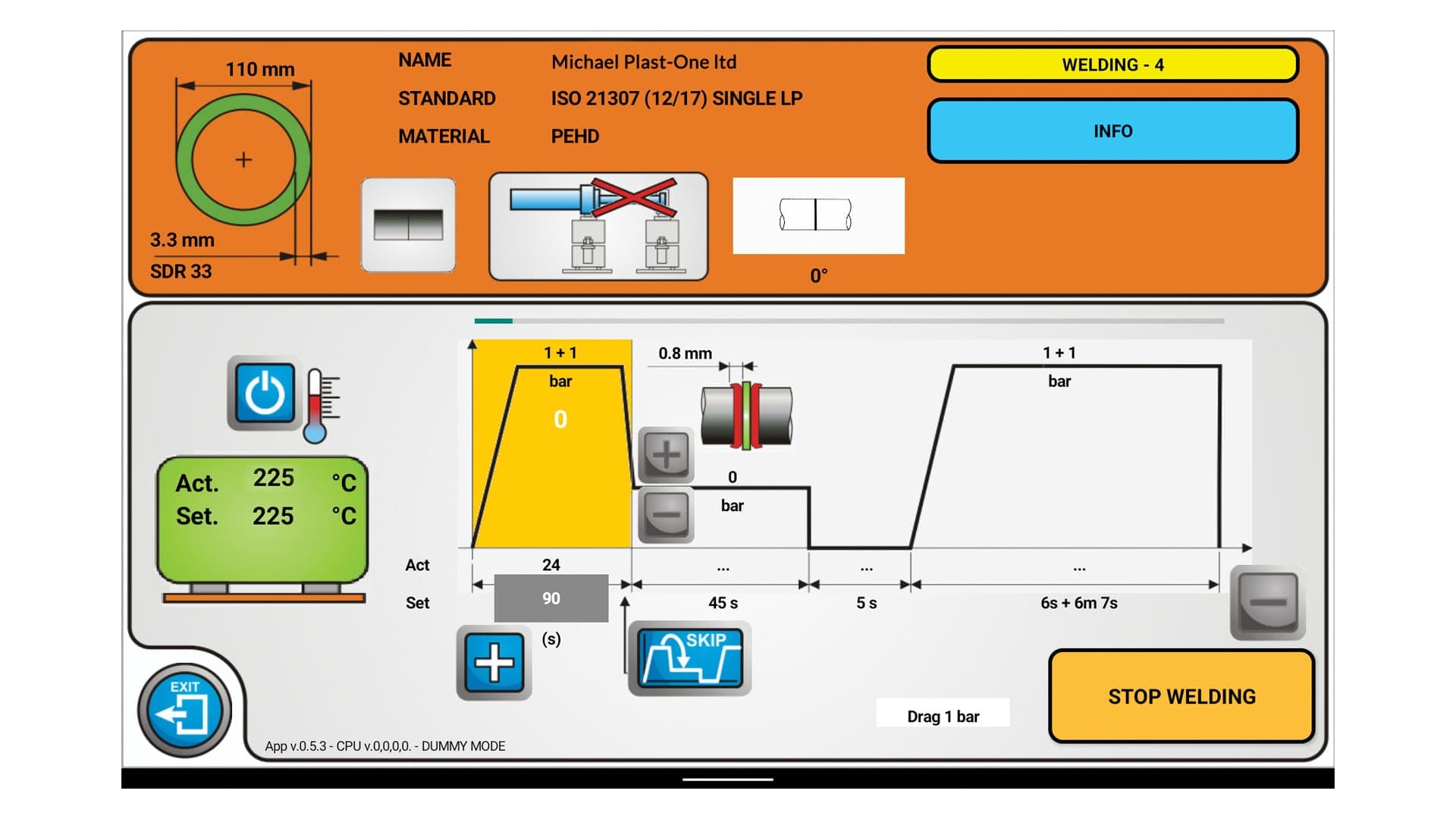

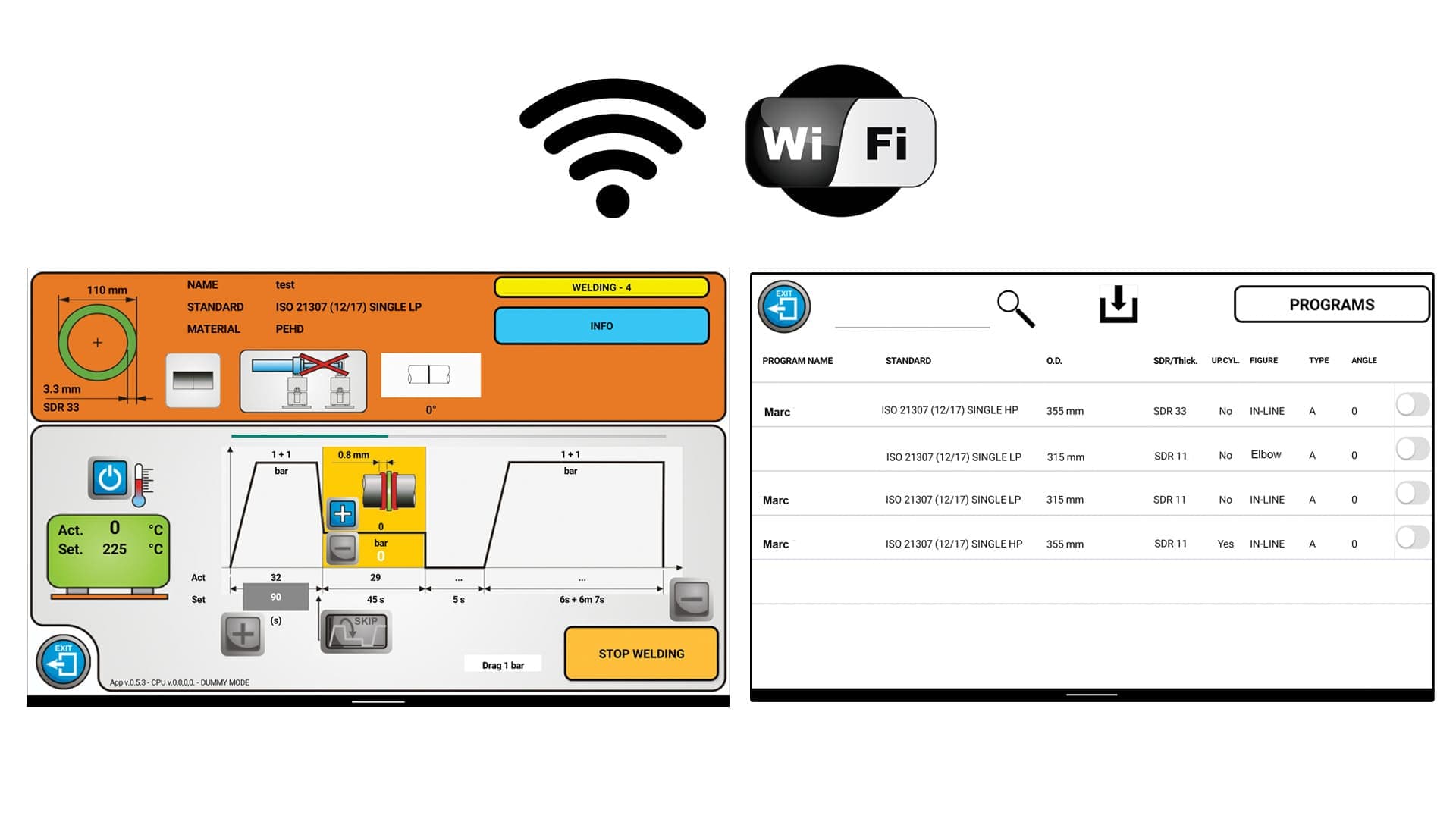

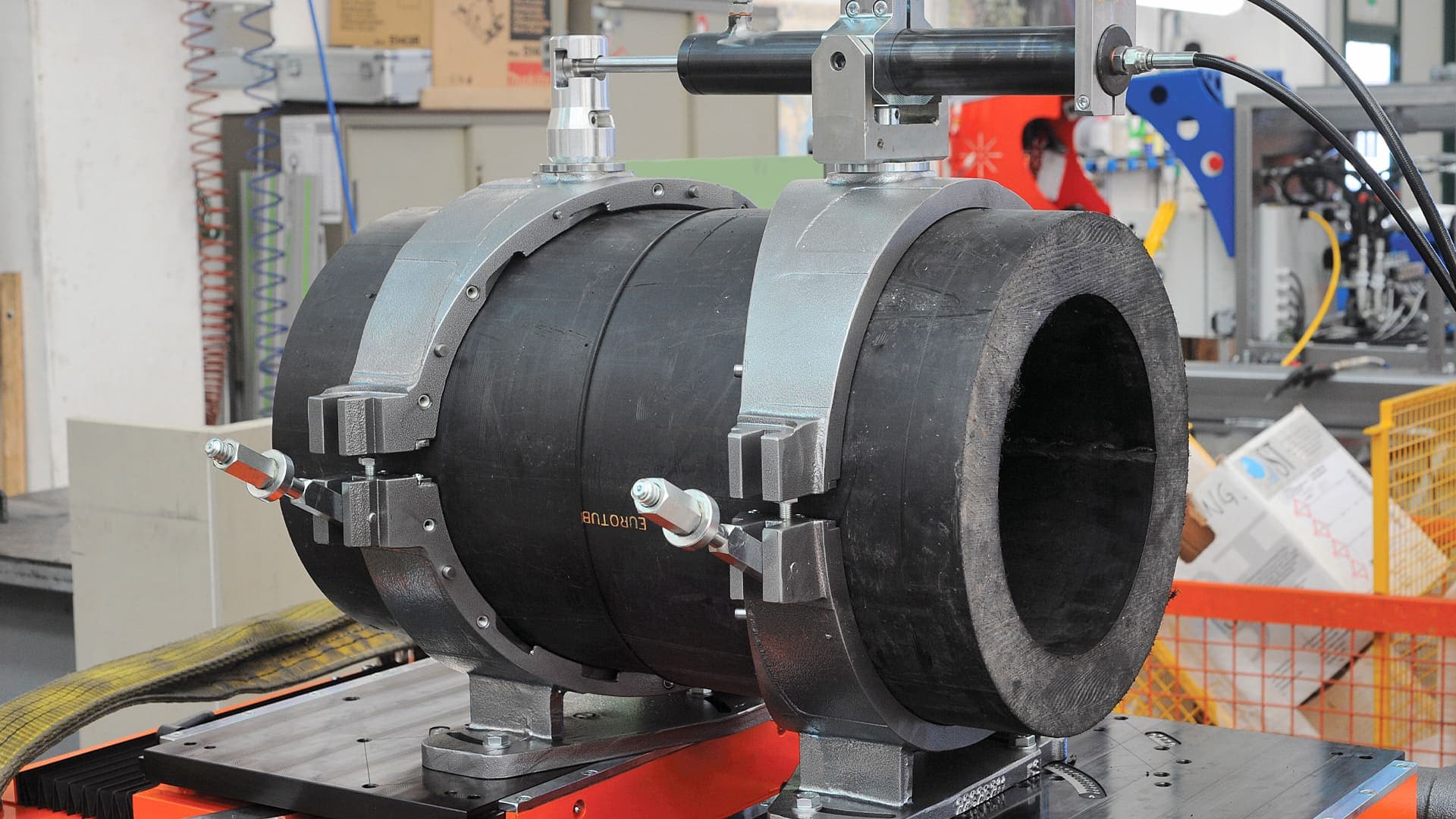

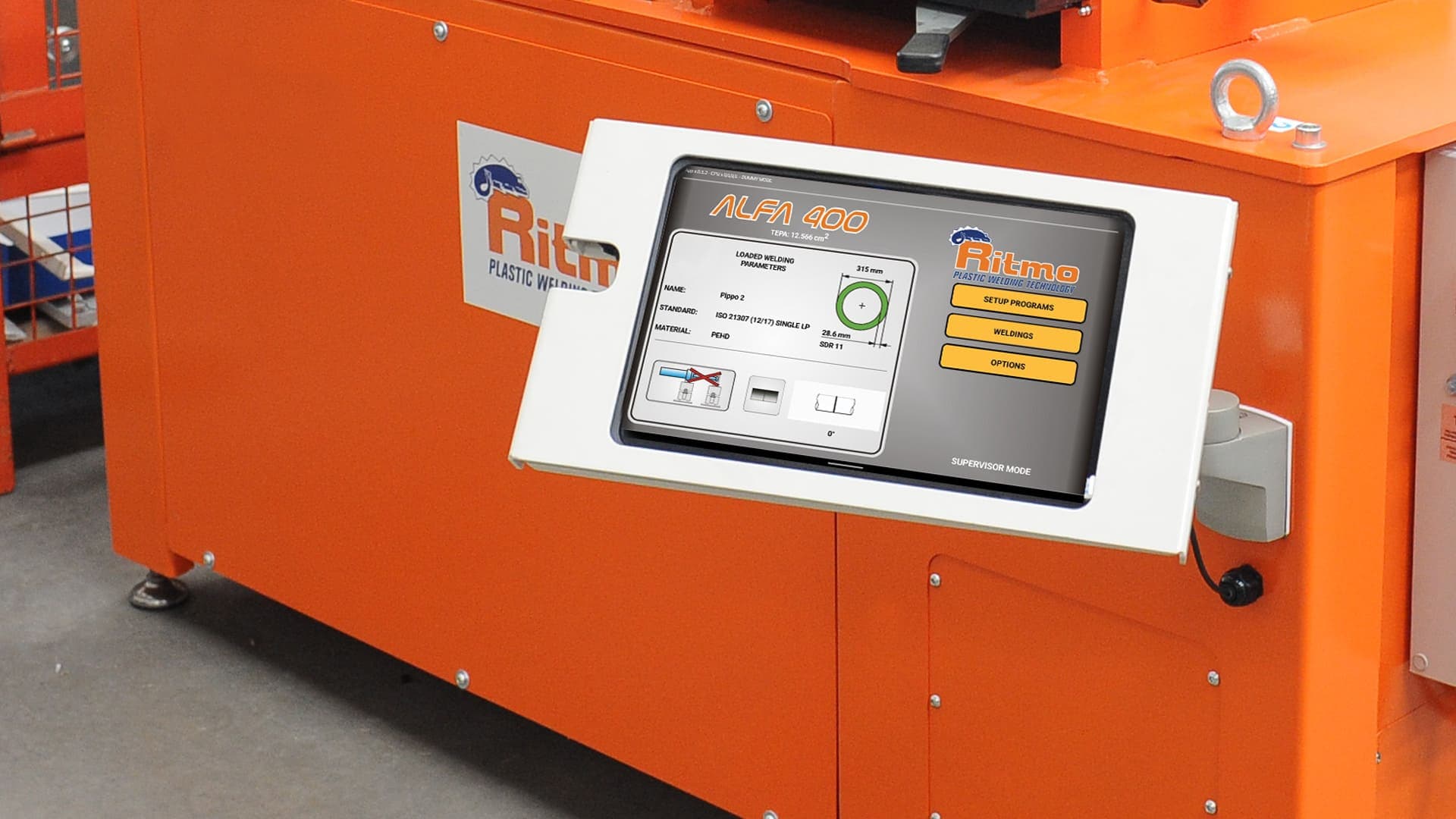

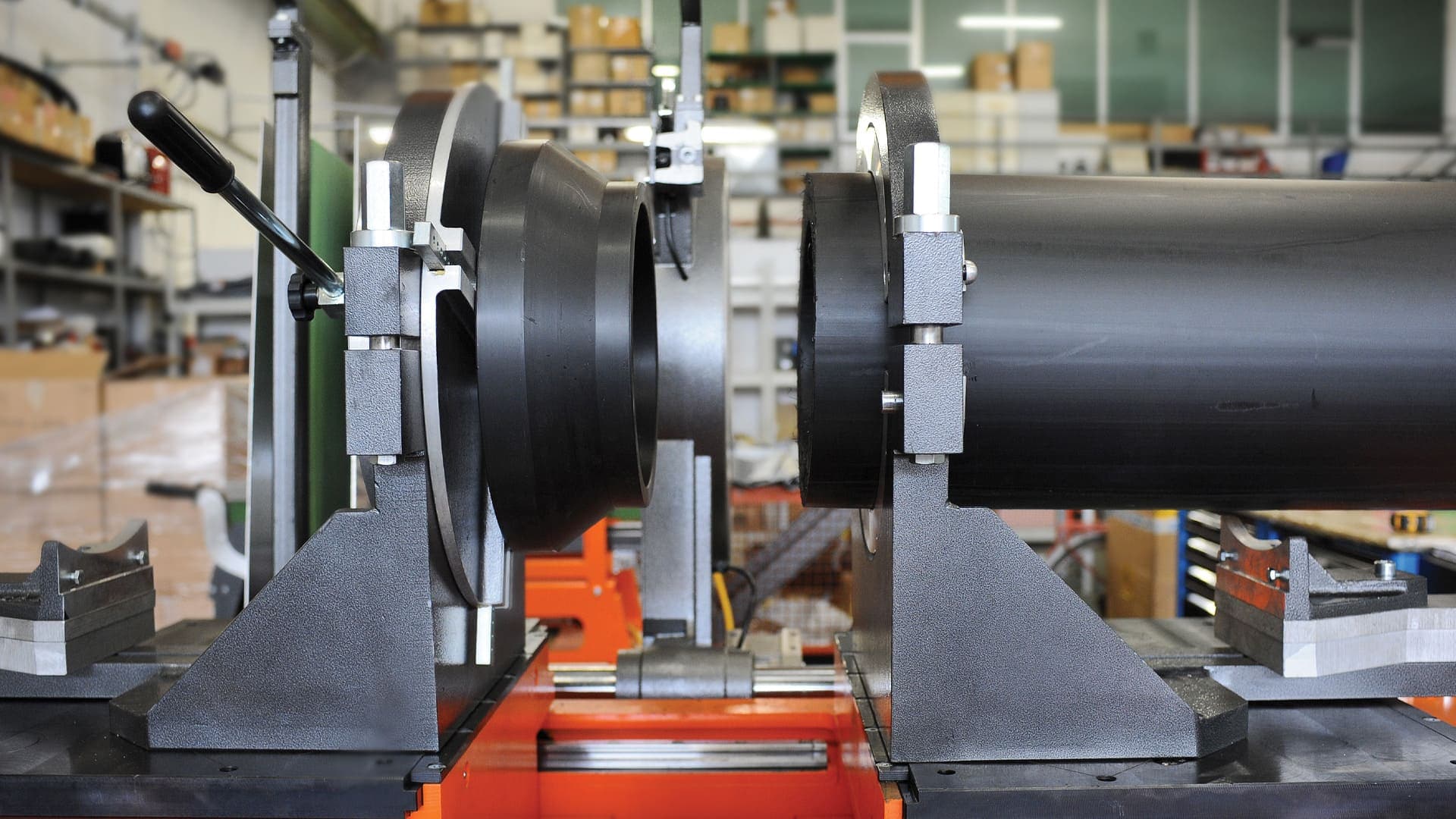

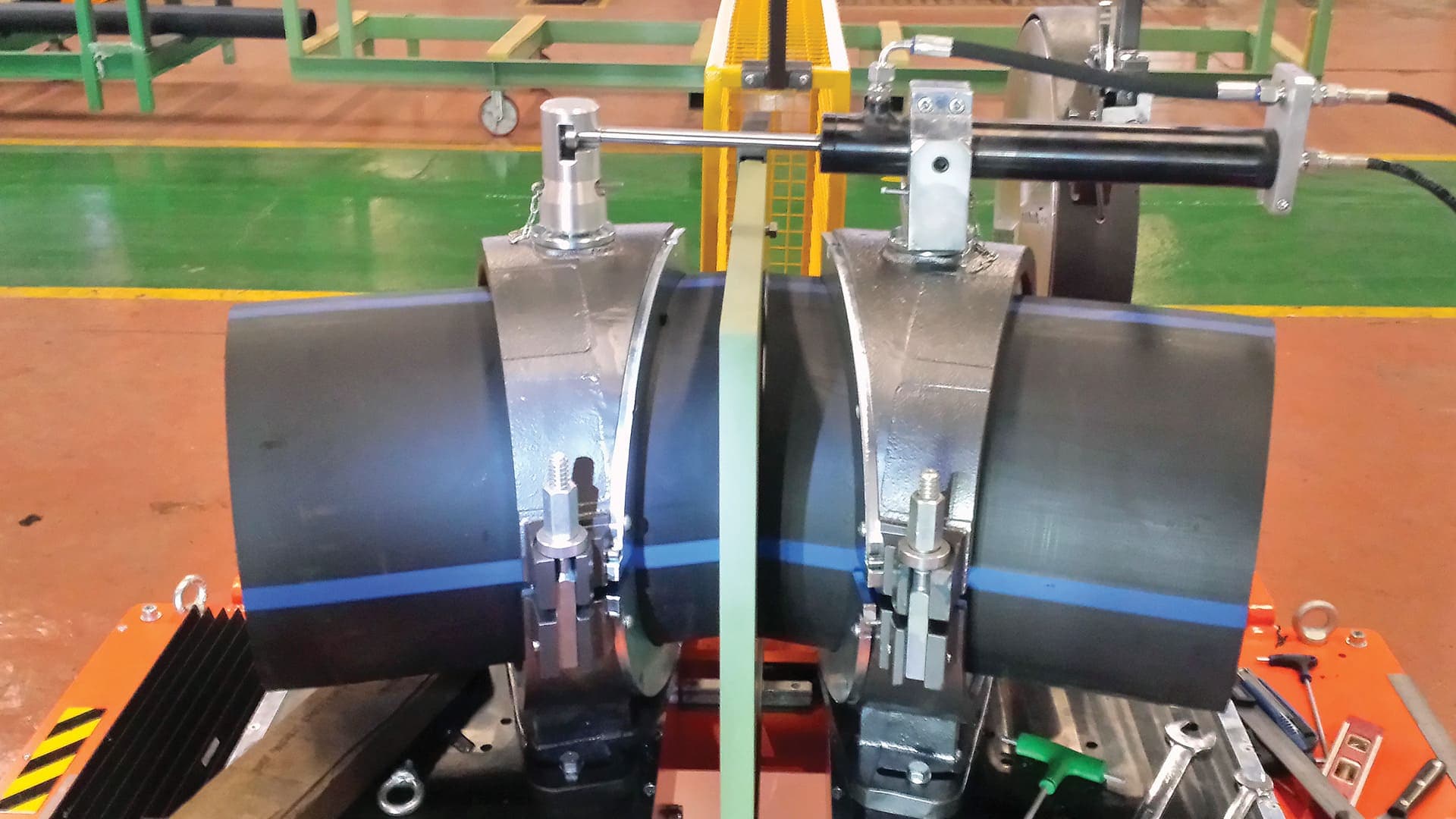

On the CNC TAB models the whole cycle is managed from an Android tablet (10" or 15.6", 1920 x 1200). Welding parameters, angle and segment count are set on the tablet, and the machine handles positioning through hydraulic clamps and applies welding pressure itself. Because production data is stored, the same fitting can be reproduced exactly.
Technical specifications
| Working range elbows 0° ÷ 60° | 4” ÷ 16 IPS 4” ÷ 14” DIPS |
|---|---|
| Working range wyes 45° ÷ 60° | 4” ÷ 12 IPS 4” ÷ 10” DIPS 45° ÷ 60° |
| Working range Tees | 4” ÷ 12 IPS 4” ÷ 10” DIPS |
| Working range crosses | 4” ÷ 12 IPS 4” ÷ 10” DIPS |
| Pressure range | 0 ÷ 150 bar |
| Welding system | CNC |
| Connection | USB Port Type A |
| Tablet | 10” |
| Wi-fi | Yes |
| Welding report | PDF - CSV |
| Memory | more than 16 gigabytes |
| Total absorbed power | 230 V Single Ph 400 V Three ph |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -5° ÷ 40° C (23° ÷ 104° F) |
| Dimensions | 168 x 219 x 180 cm 55.1" x 71.9" x 59.1" |
| Weight | 647 Kg (1426 lb) |
