Ritmo Alfa 63 CNC TAB Fittings Fabrication Machine 24-63″ IPS
- Brand
- Ritmo
- Category
- Fittings Fabrication Machines
Product details

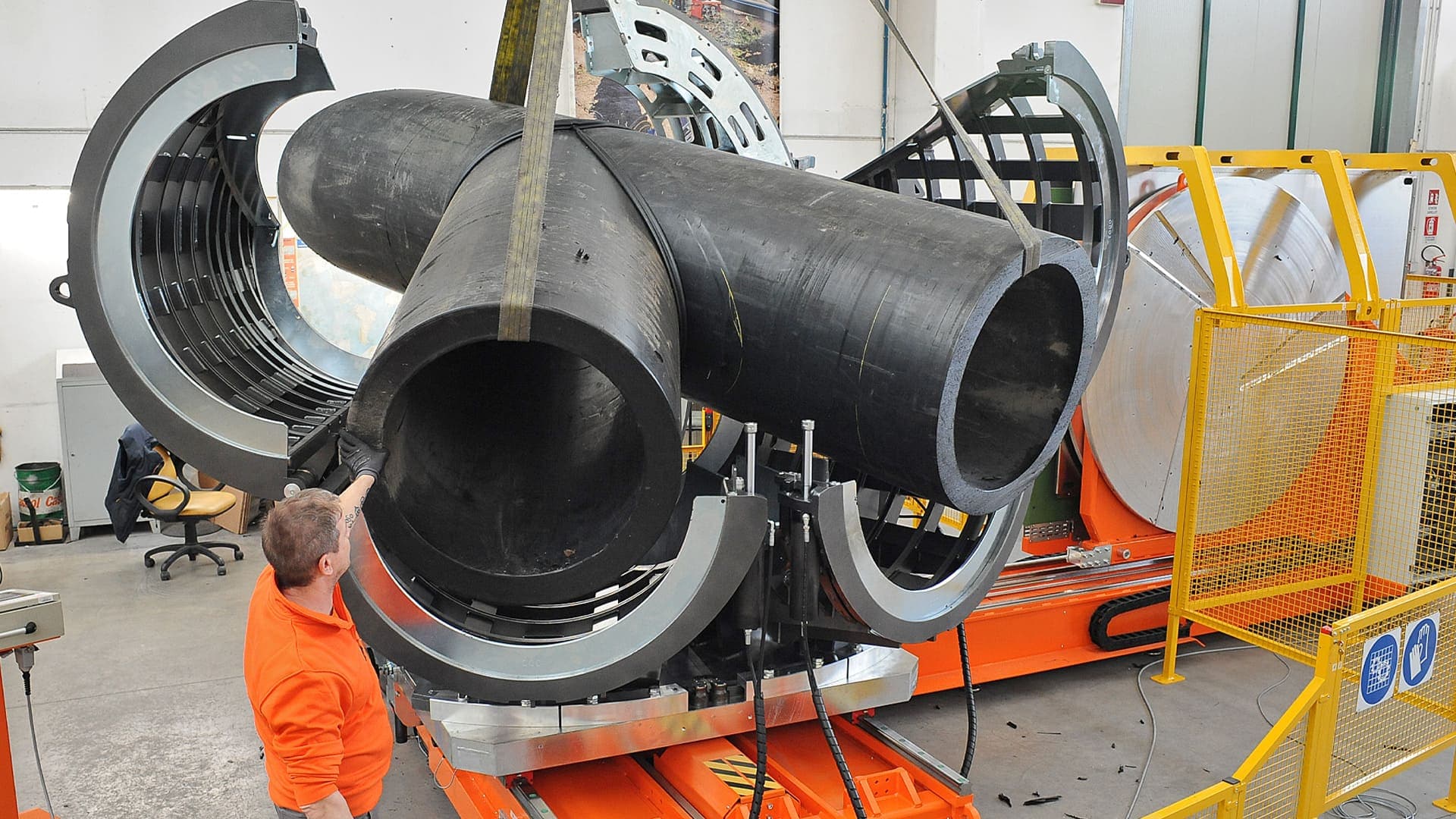

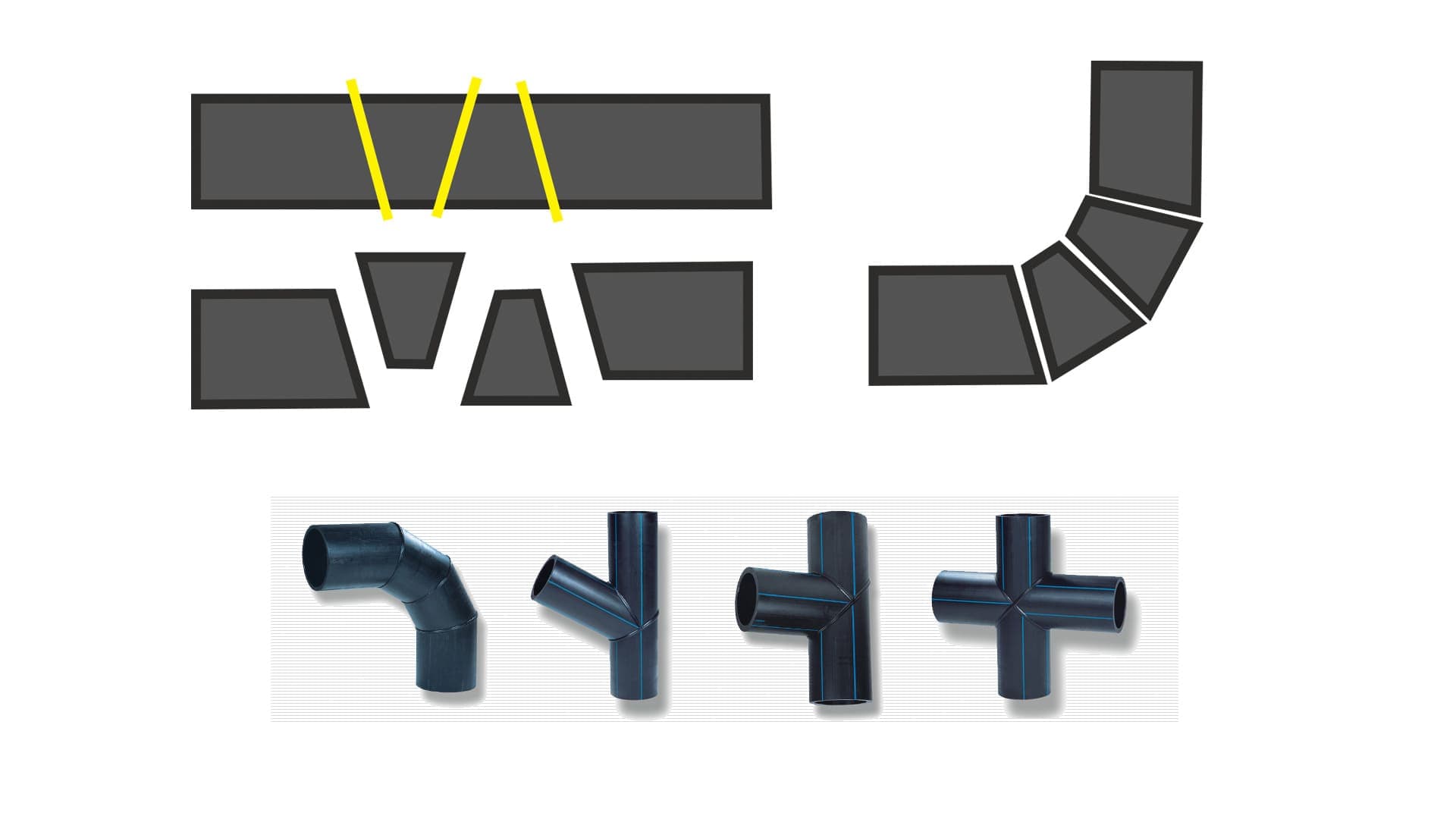

Alfa 63 CNC TAB makes 24-63″ IPS elbows and 24-48″ IPS tees, crosses and wyes at 0-250 bar — the largest fittings fabrication machine in imperial sizes.

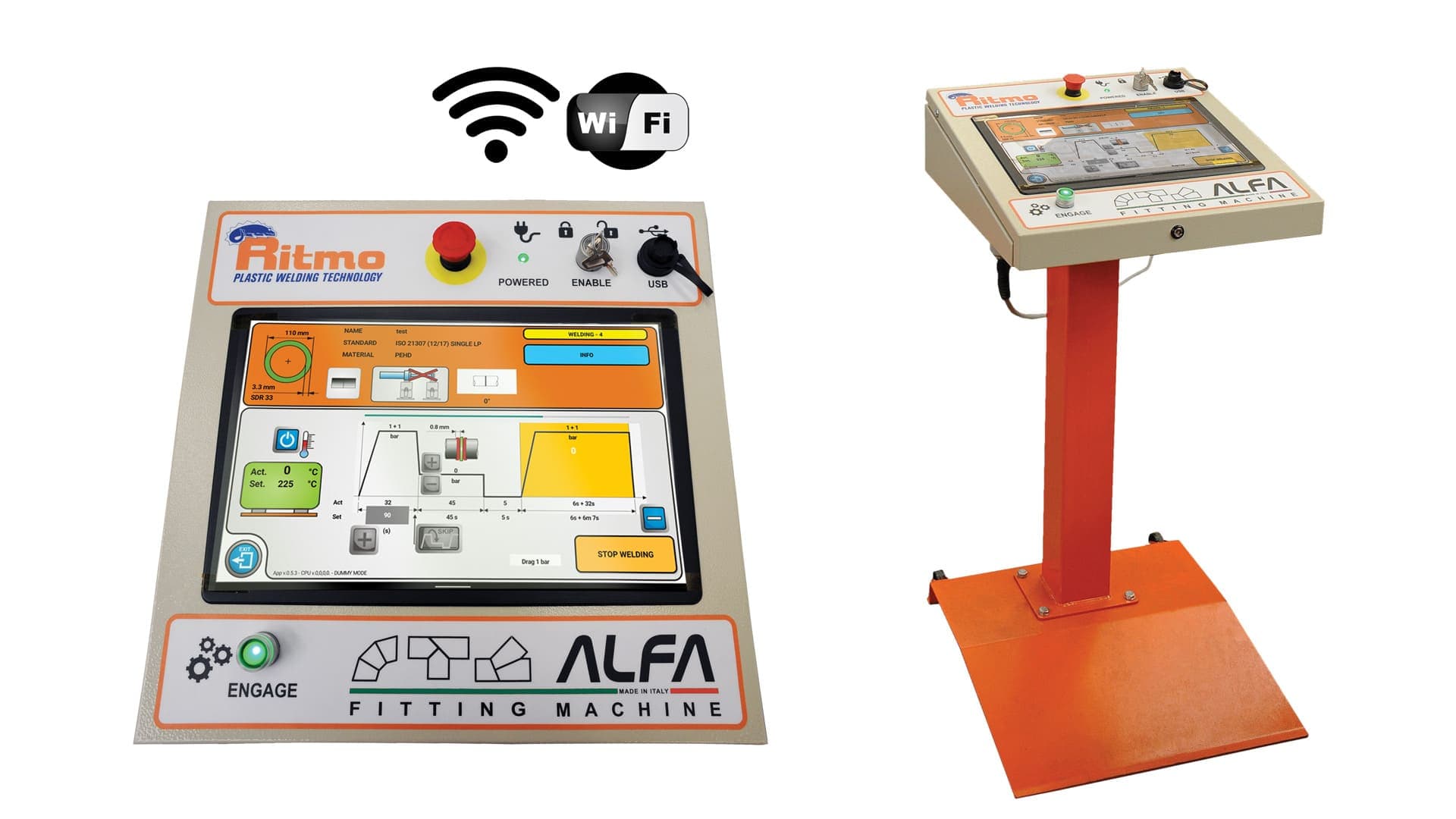

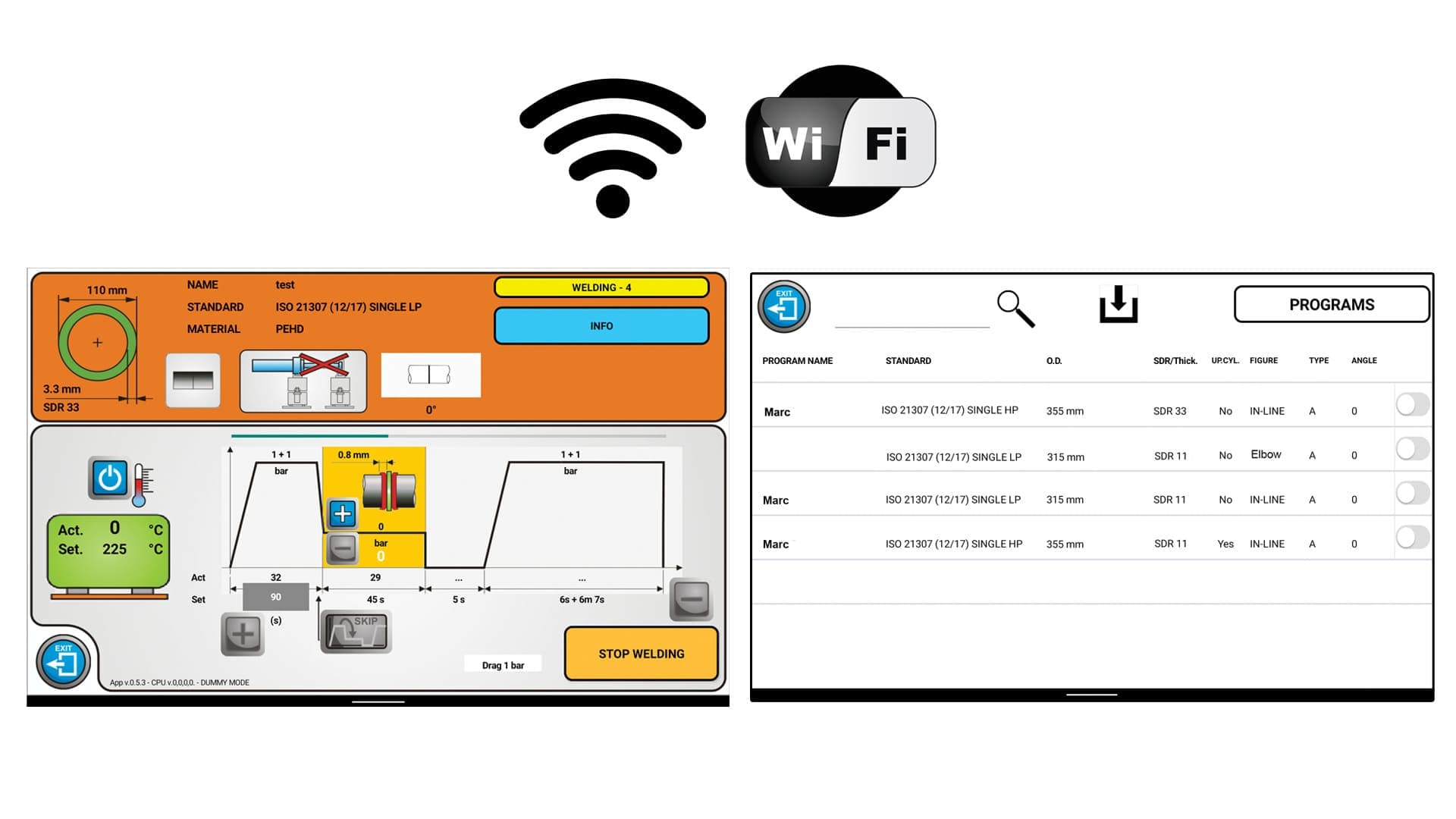

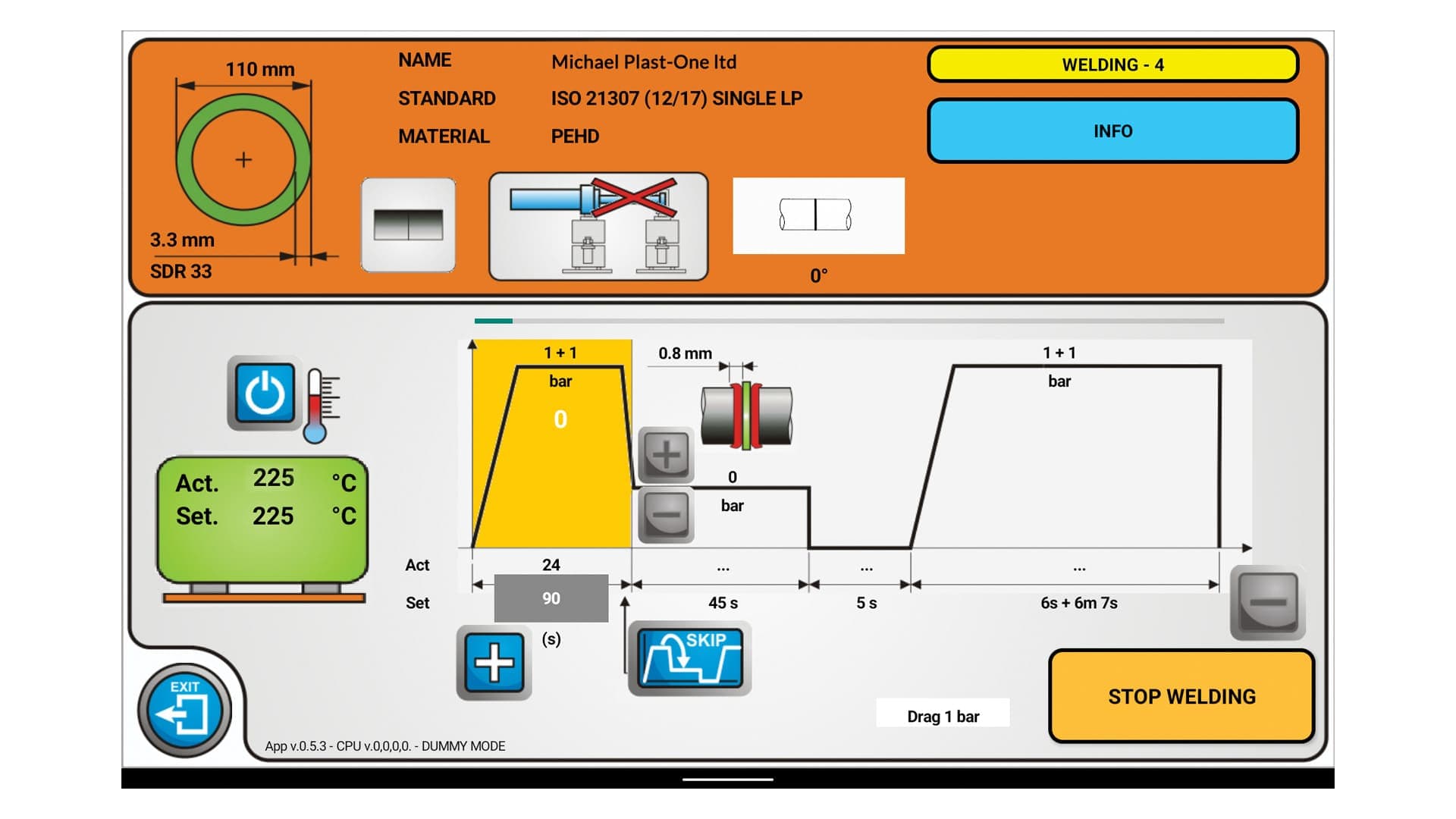

On the CNC TAB models the whole cycle is managed from an Android tablet (10" or 15.6", 1920 x 1200). Welding parameters, angle and segment count are set on the tablet, and the machine handles positioning through hydraulic clamps and applies welding pressure itself. Because production data is stored, the same fitting can be reproduced exactly.
Technical specifications
| Working range elbows 0° ÷ 60° | 24” ÷ 63” IPS |
|---|---|
| Working range wyes 45° ÷ 60° | 24” ÷ 48” IPS |
| Working range Tees | 24” ÷ 48” IPS |
| Working range crosses | 24” ÷ 48” IPS |
| Pressure range | 0 ÷ 250 bar |
| Welding system | CNC |
| Connection | USB Port Type A |
| Tablet | 15,6” |
| Wi-fi | Yes |
| Welding report | PDF - CSV |
| Memory | more than 16 gigabytes |
| Total absorbed power | 400 V Three ph |
| Working temperature | 180° ÷ 280° C (356° ÷ 536° F) |
| Outside temperature range | -5° ÷ 40° C (23° ÷ 104° F) |
| Dimensions | 736 x448 x284 cm 290” x177” x112 |
| Weight | 8800 Kg (19400 lb) |
